Connector Views

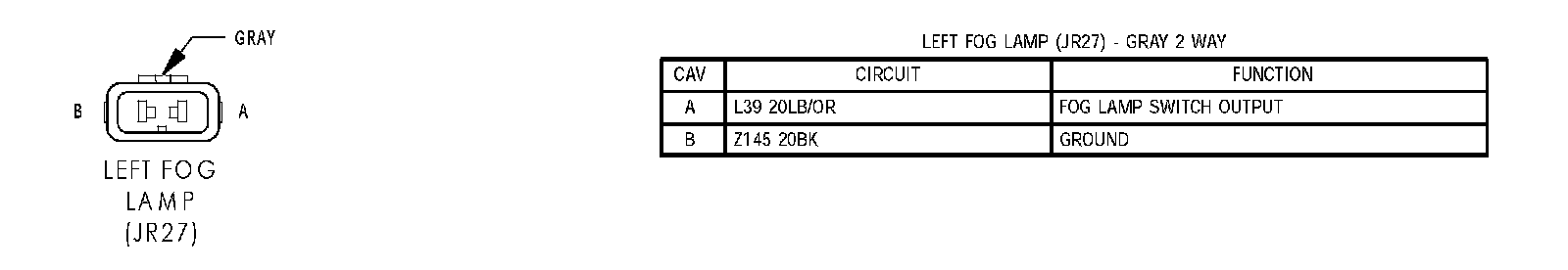

Left Fog Lamp (JR27):

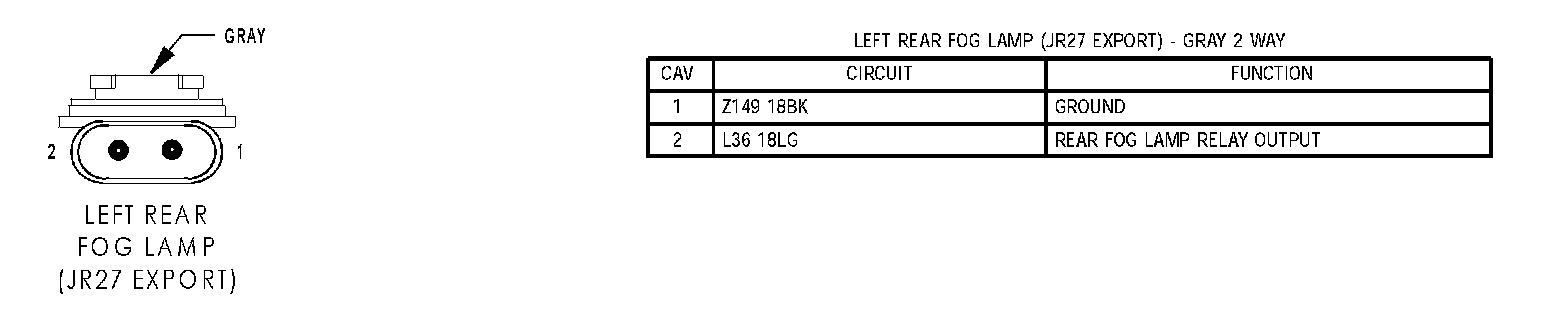

Left Rear Fog Lamp (JR27 Export):

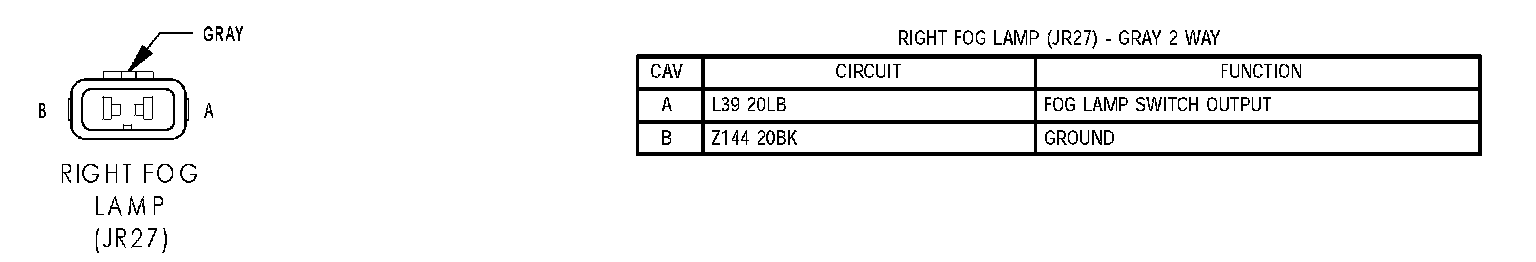

Right Fog Lamp (JR27):

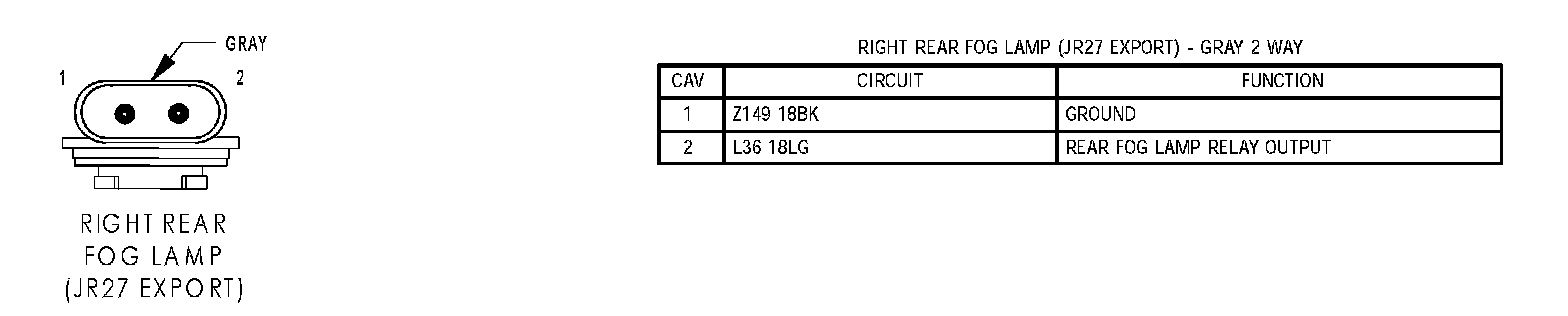

Right Rear Fog Lamp (JR27 Export):
