Power Window Motor
Power Window Motor
Diver Power Window Motor:

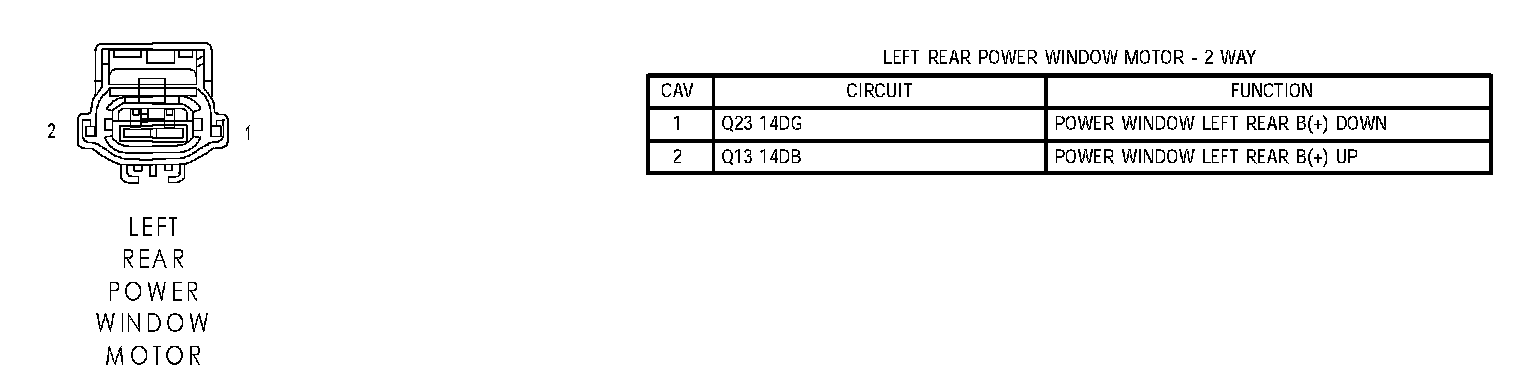

Left Rear Power Window Motor:
Passenger Power Window Motor:

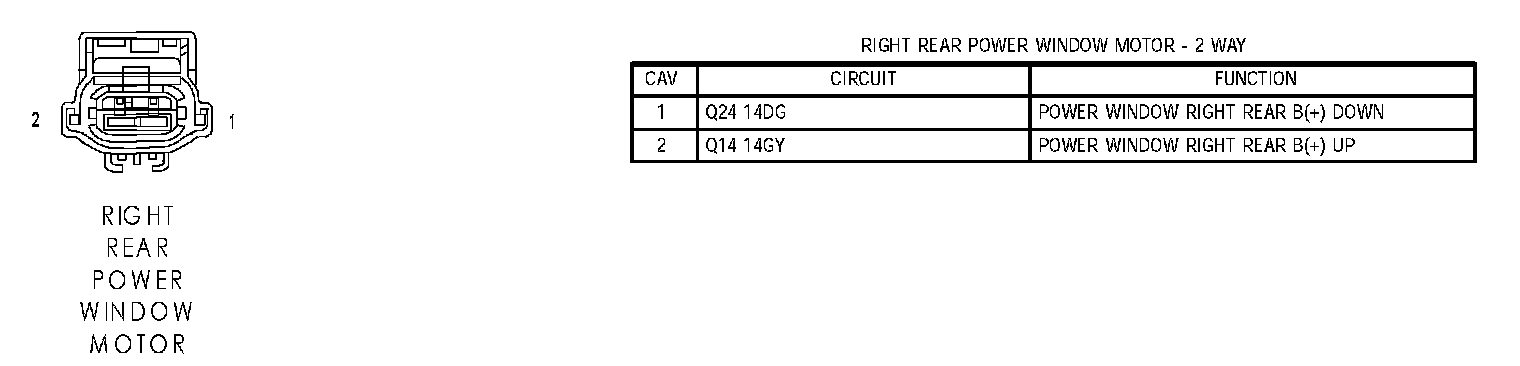

Right Rear Power Window Motor:
