Power Distribution Module
Power Distribution Module

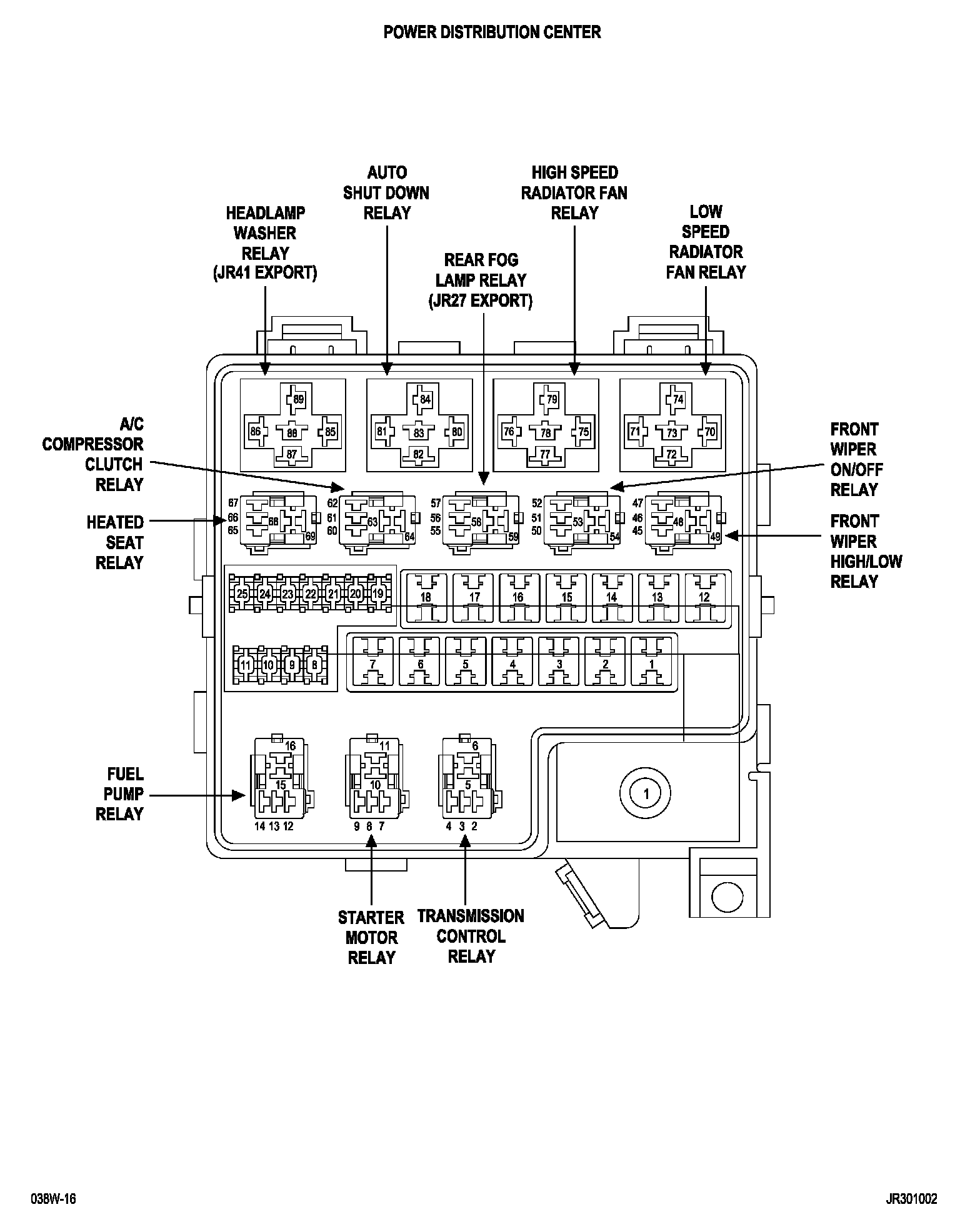

8w-10-2 Power Distribution Center:

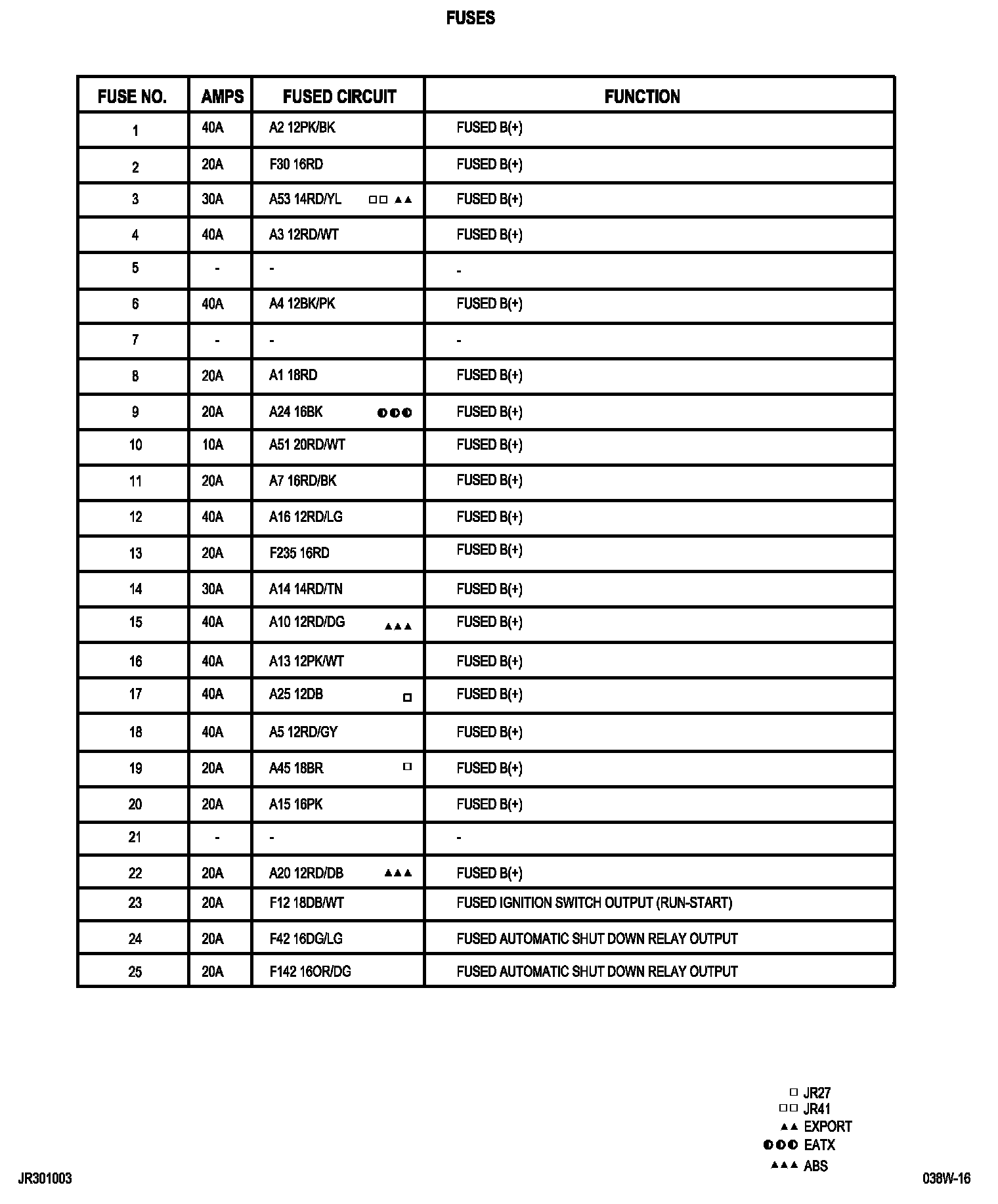

8w-10-3 Fuses (PDC):

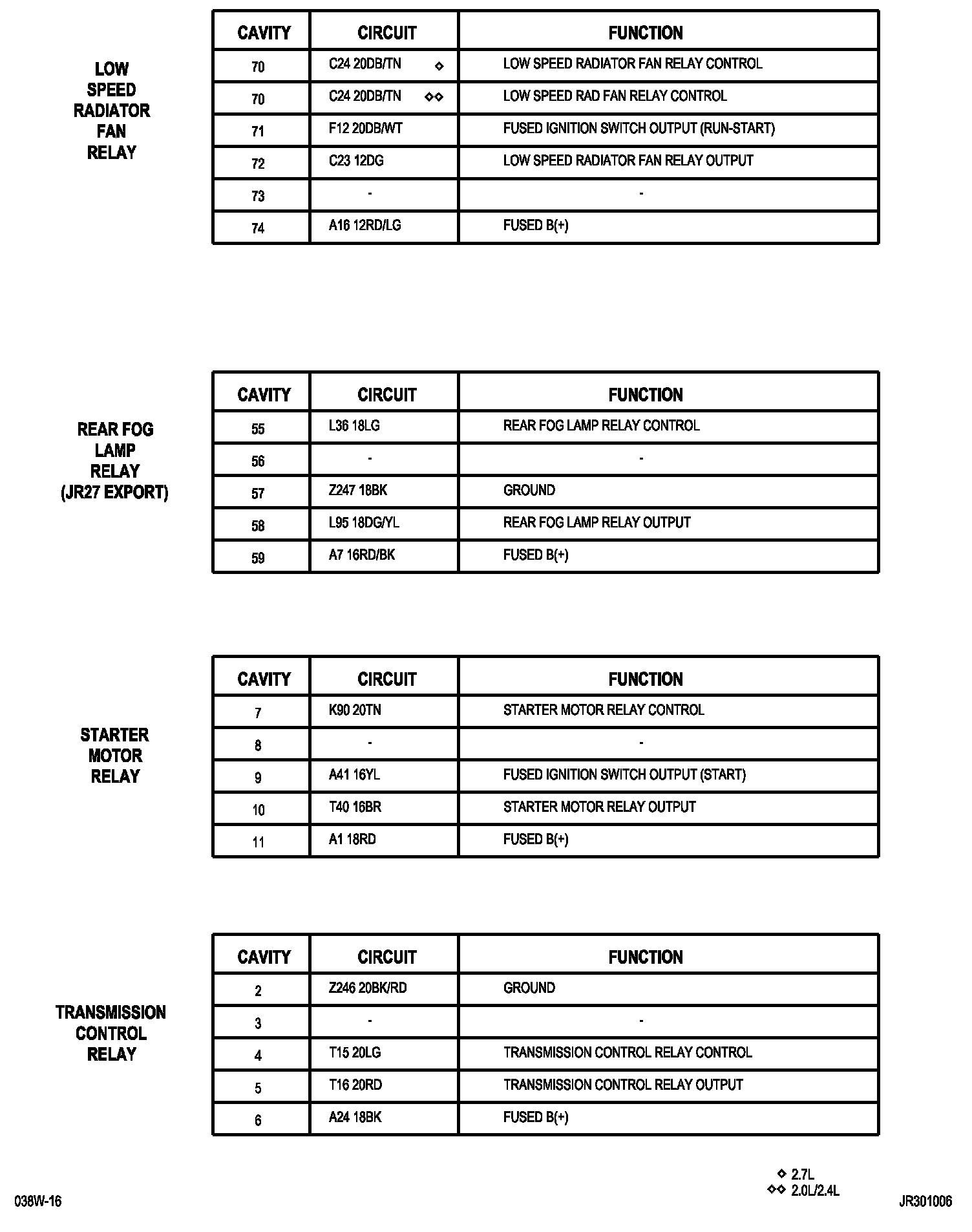

8w-10-4:

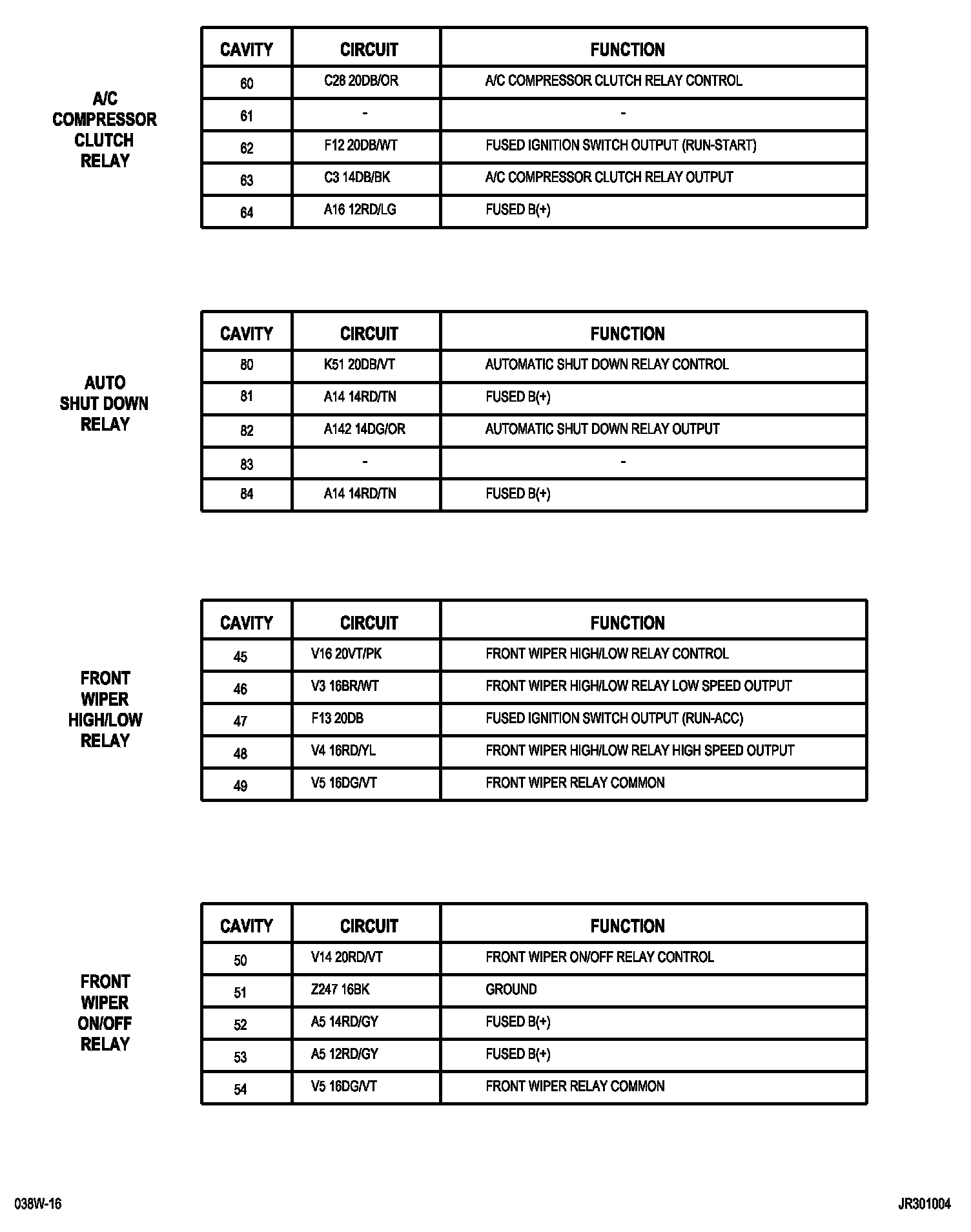

8w-10-5:

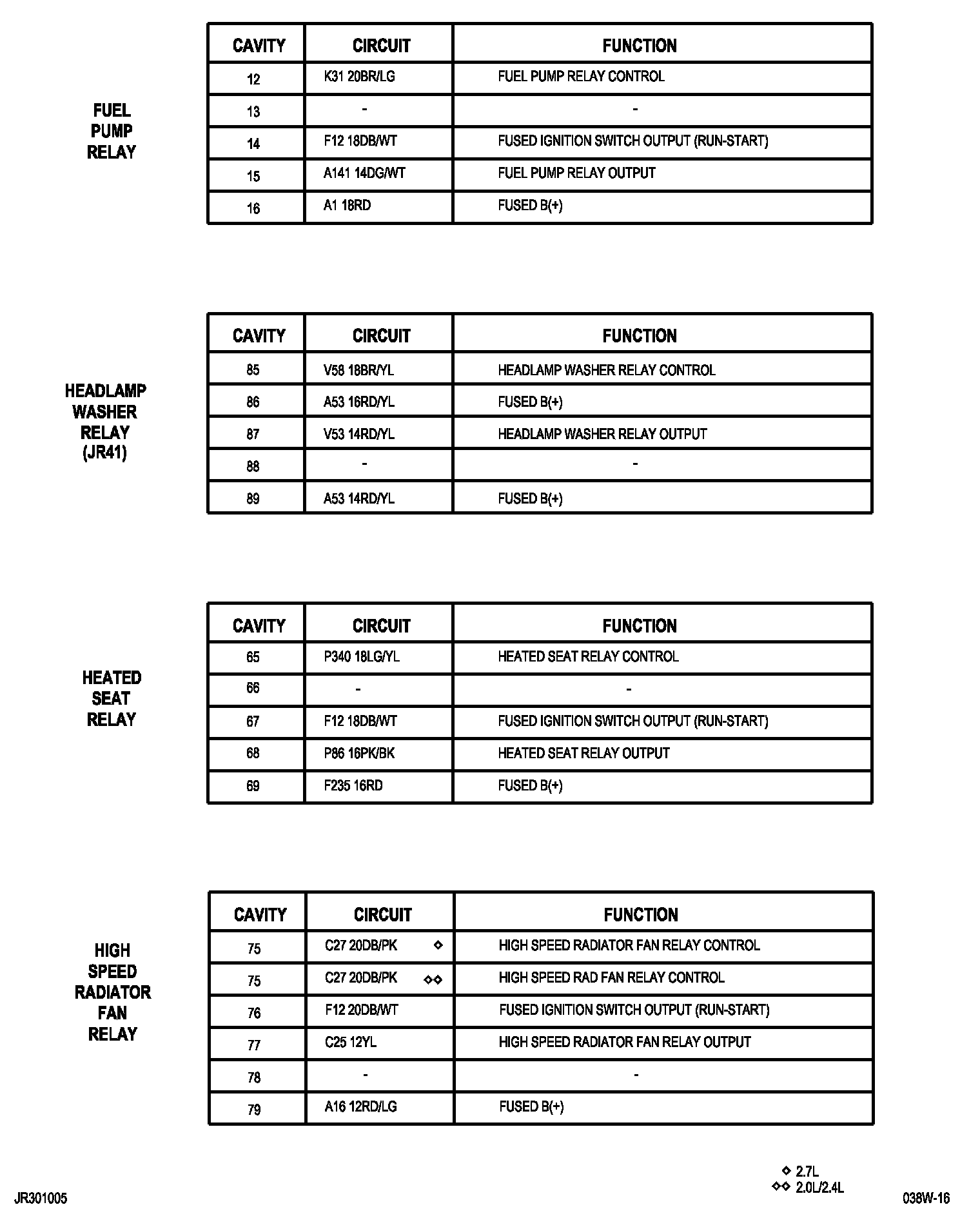

8w-10-6:
