Home
>>
Chrysler
>>
2003
>>
Sebring Convertible V6-2.7L VIN T FFV
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C300 - C322
>>
C307
C307

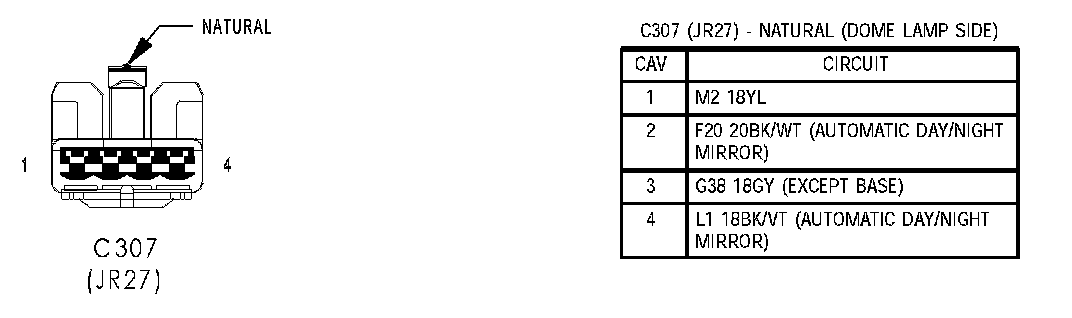

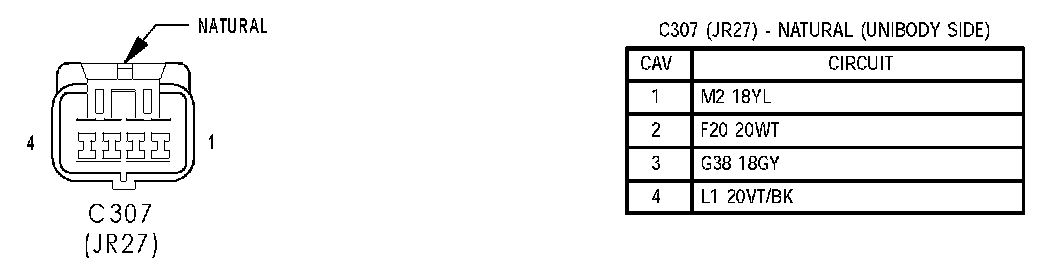

C307 (JR27):
C307 (JR27):

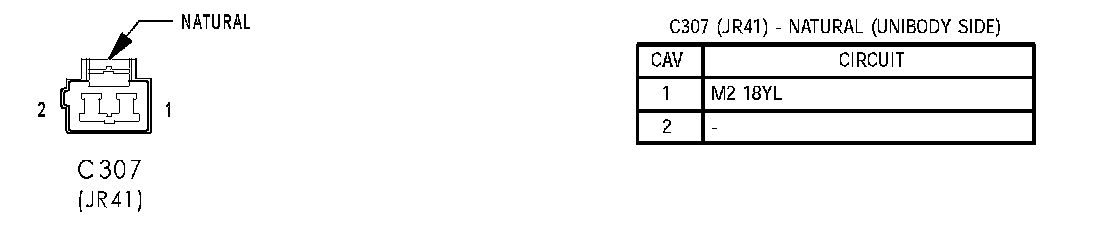

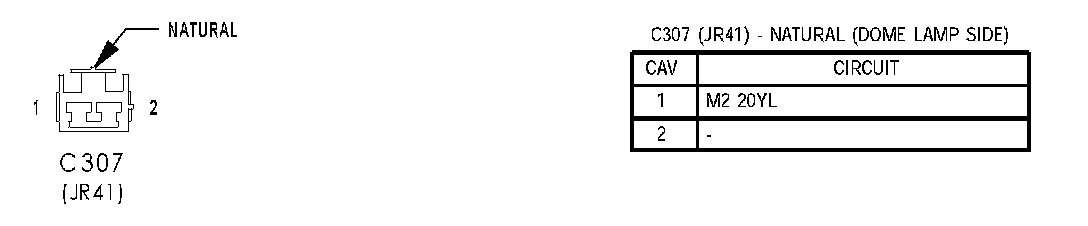

C307 (JR41):
C307 (JR41):
