FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
2003
>>
Sebring Convertible V6-2.7L VIN T FFV
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C225
>>
C168
C168

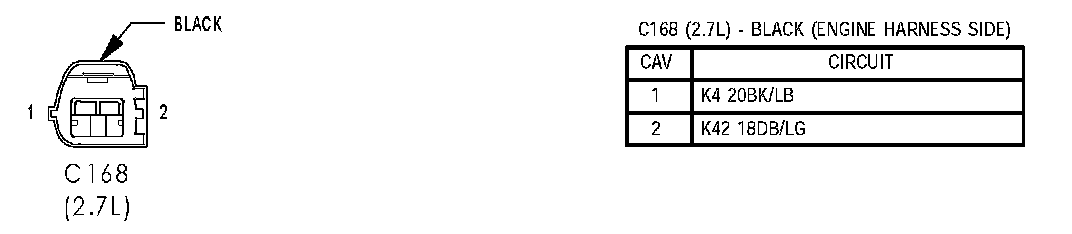

C168 (2.7L):

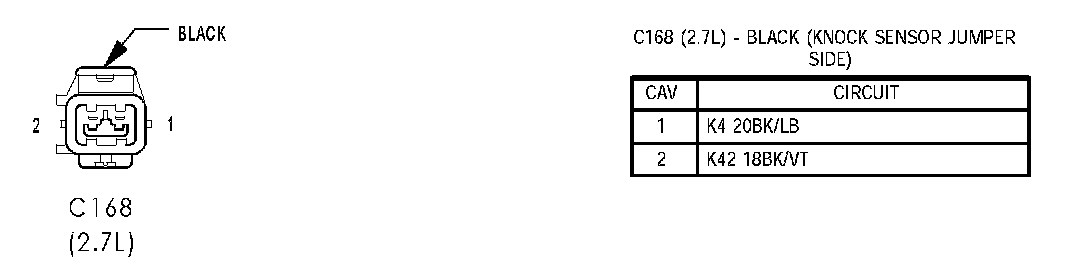

C168 (2.7L):
