Chrysler
>>
2003
>>
Sebring Convertible V6-2.7L VIN T FFV
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C225
>>
C113
C113

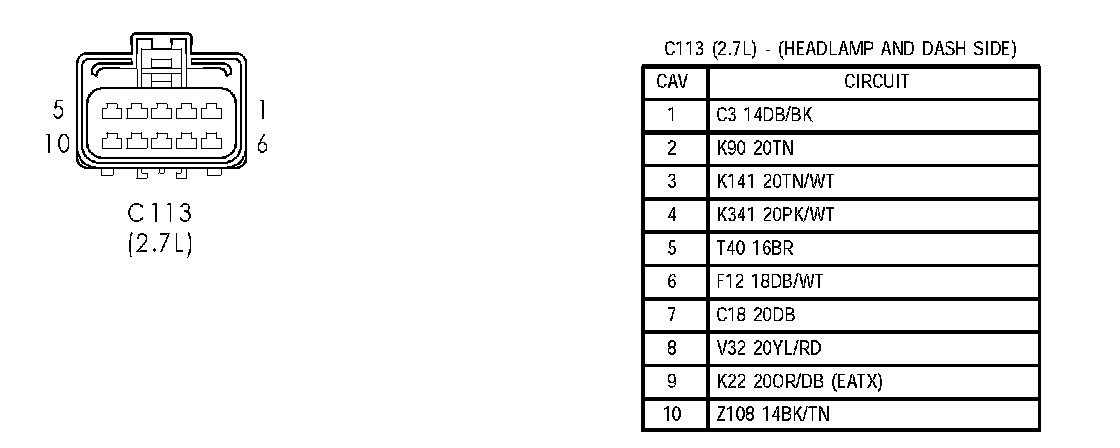

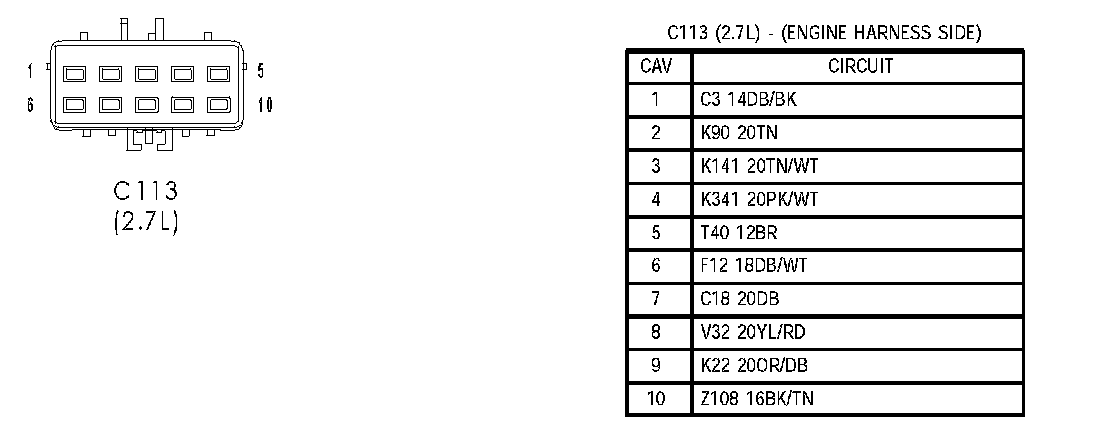

C113 (2.7L):
C113 (2.7L):
