Brake Lamp Switch Inoperative

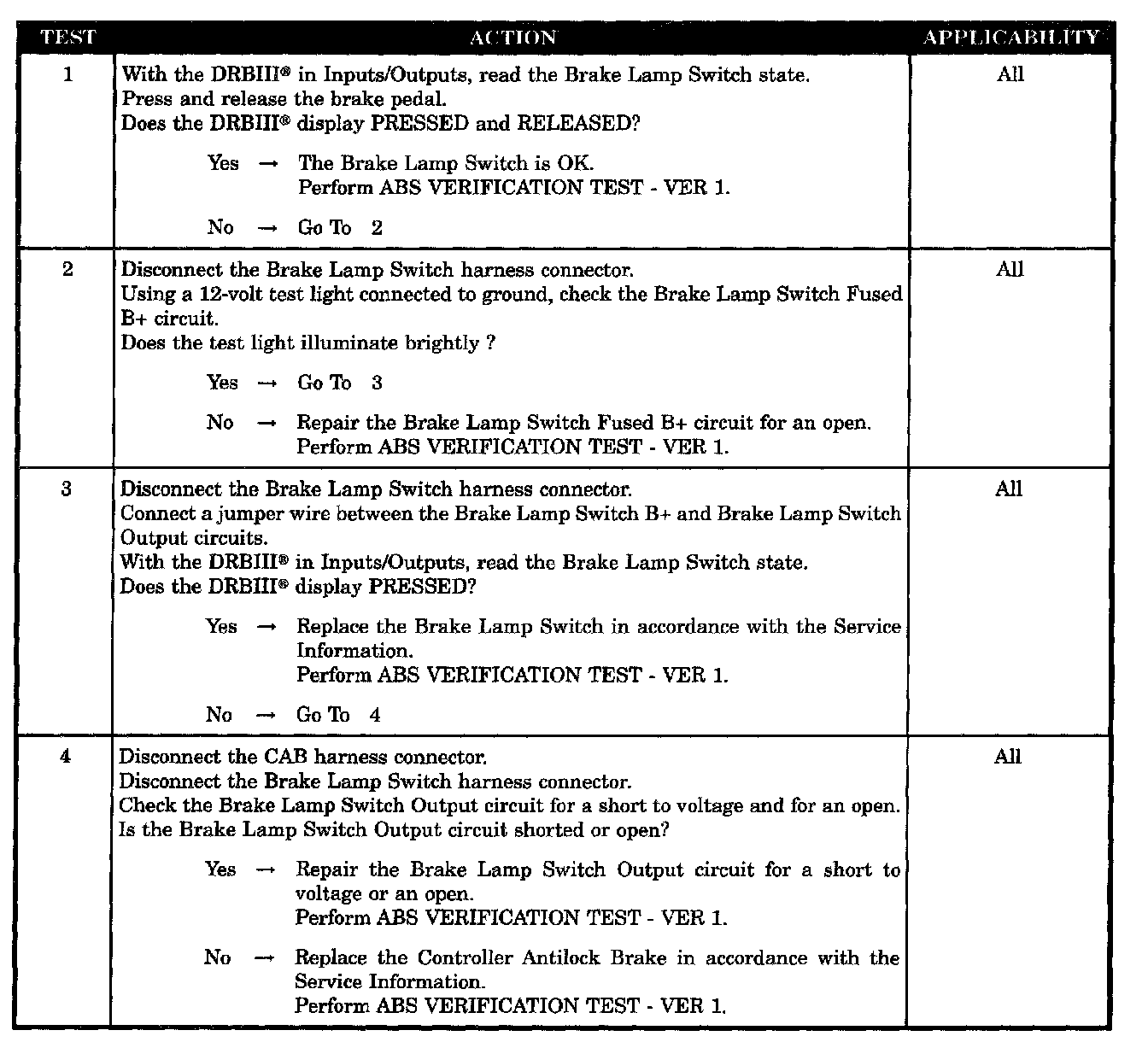

Test 1-4:

Symptom:
*BRAKE LAMP SWITCH INOPERATIVE

POSSIBLE CAUSES
CHECK BRAKE LAMP SWITCH OUTPUT
BRAKE LAMP SWITCH B+ OPEN
BRAKE LAMP SWITCH OPEN
BRAKE LAMP SWITCH OUTPUT CIRCUIT SHORT OR OPEN
CAB - INTERNAL OPEN
