P1797

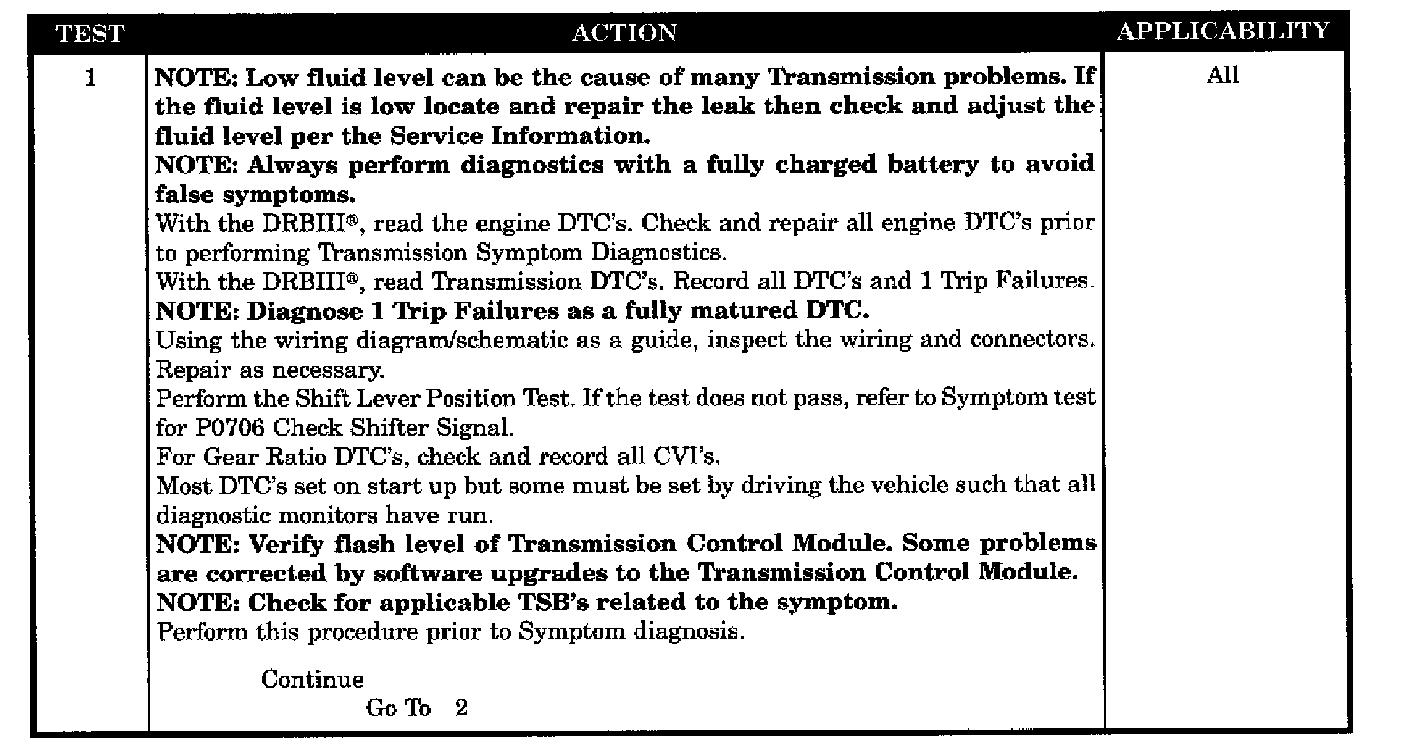

Test 1:

Test 2:

SYMPTOM
P1797-MANUAL SHIFT OVERHEAT

WHEN MONITORED
Whenever engine is running and transmission is in the AutoStick mode.

SET CONDITION
If the engine temperature exceeds 124 °C or 255 °F or the transmission temperature exceeds 135 °C or 275 °F while in AutoStick mode. Note: Aggressive driving or driving in low for extended periods of time in AutoStick mode will set this DTC.

POSSIBLE CAUSES
- MANUAL SHIFT OVERHEAT
