P1794

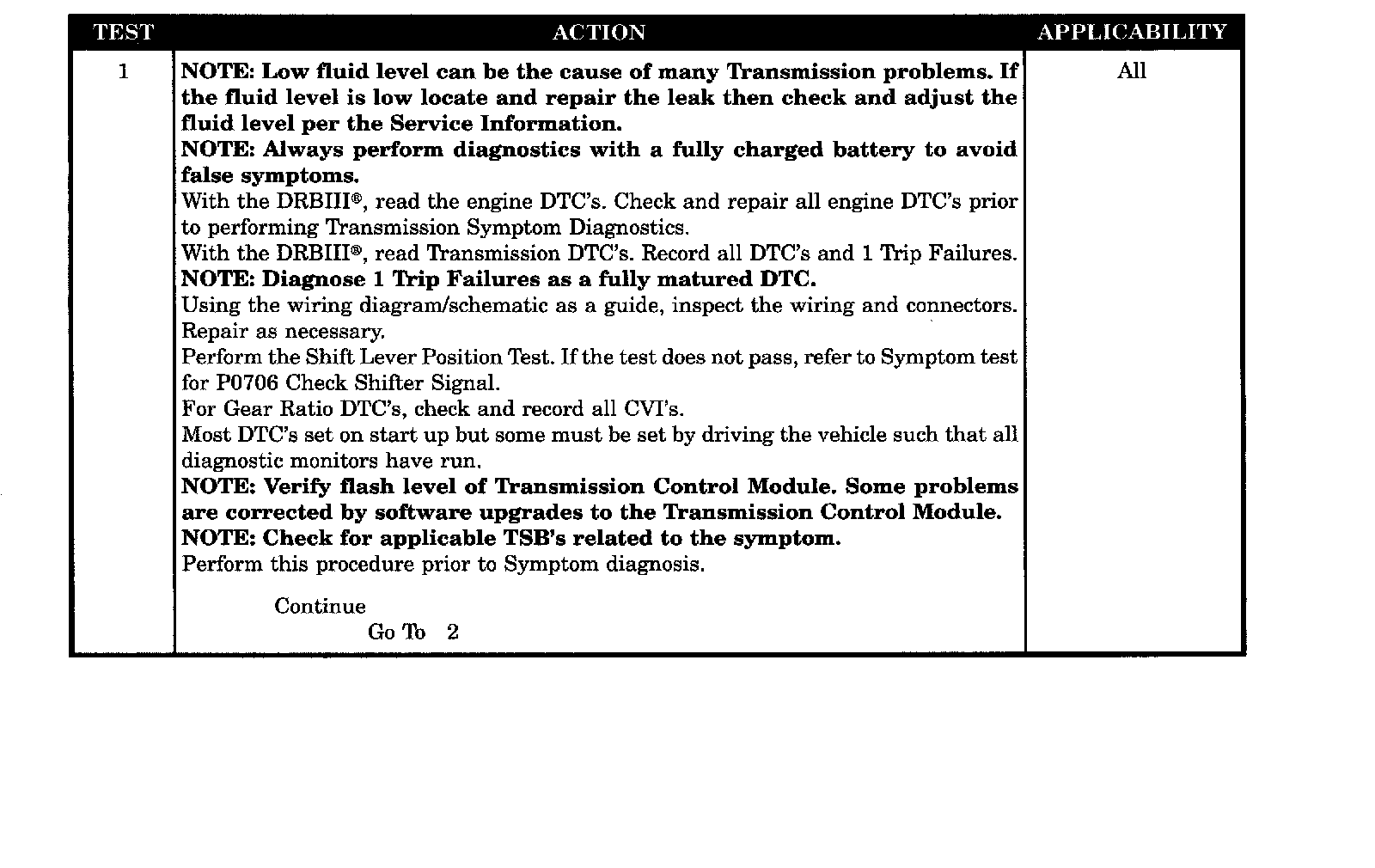

Test 1:

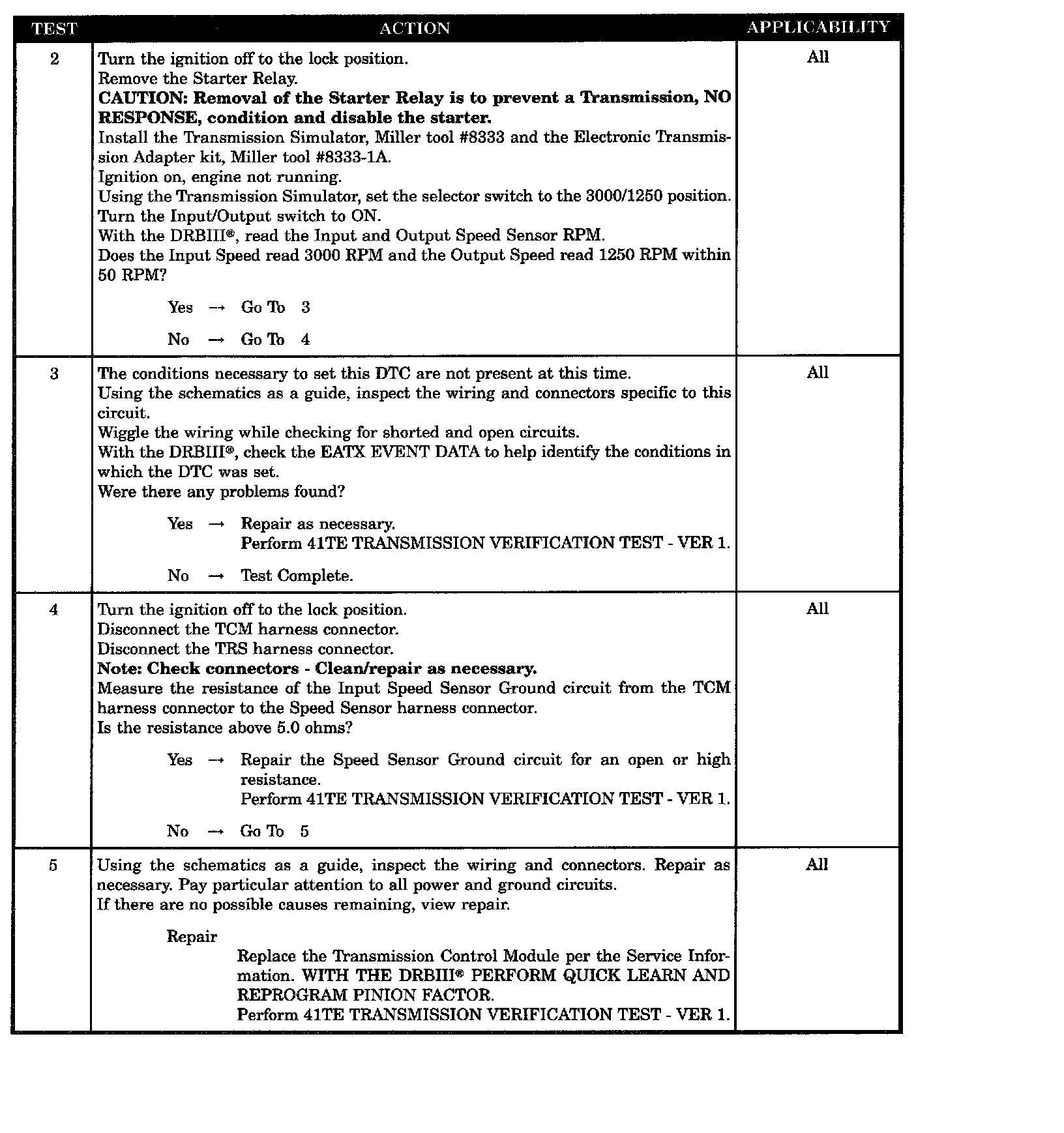

Test 2-5:

SYMPTOM
P1794-SPEED SENSOR GROUND ERROR

WHEN MONITORED
The transmission gear ratio is monitored continuously while the transmission is in gear.

SET CONDITION
After a TCM reset in neutral and Input/Output equals a ratio of input to output of 2.5 to 1.

POSSIBLE CAUSES
- SPEED SENSOR GROUND CIRCUIT OPEN
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
