Transmission Code

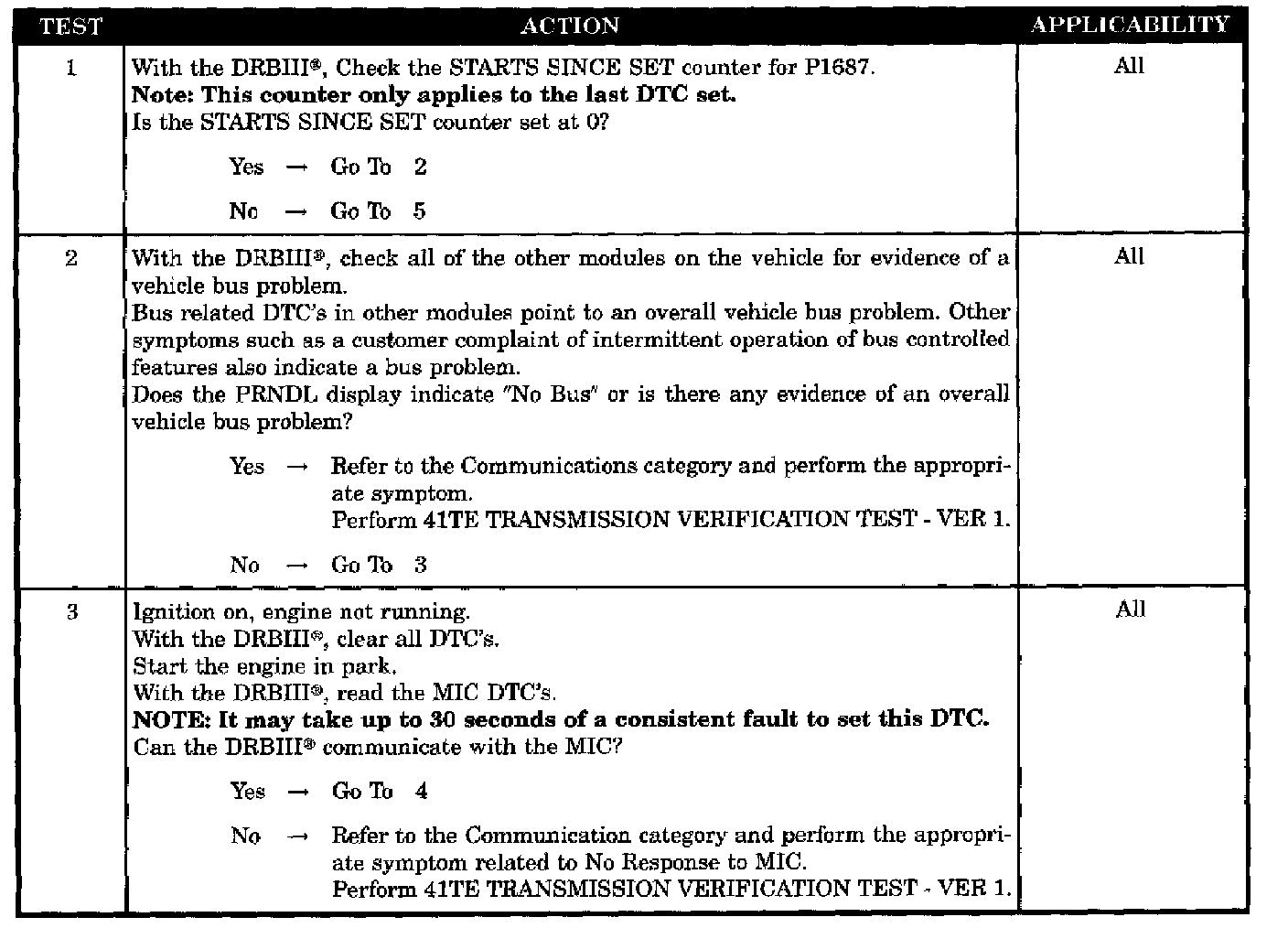

Test 1-3:

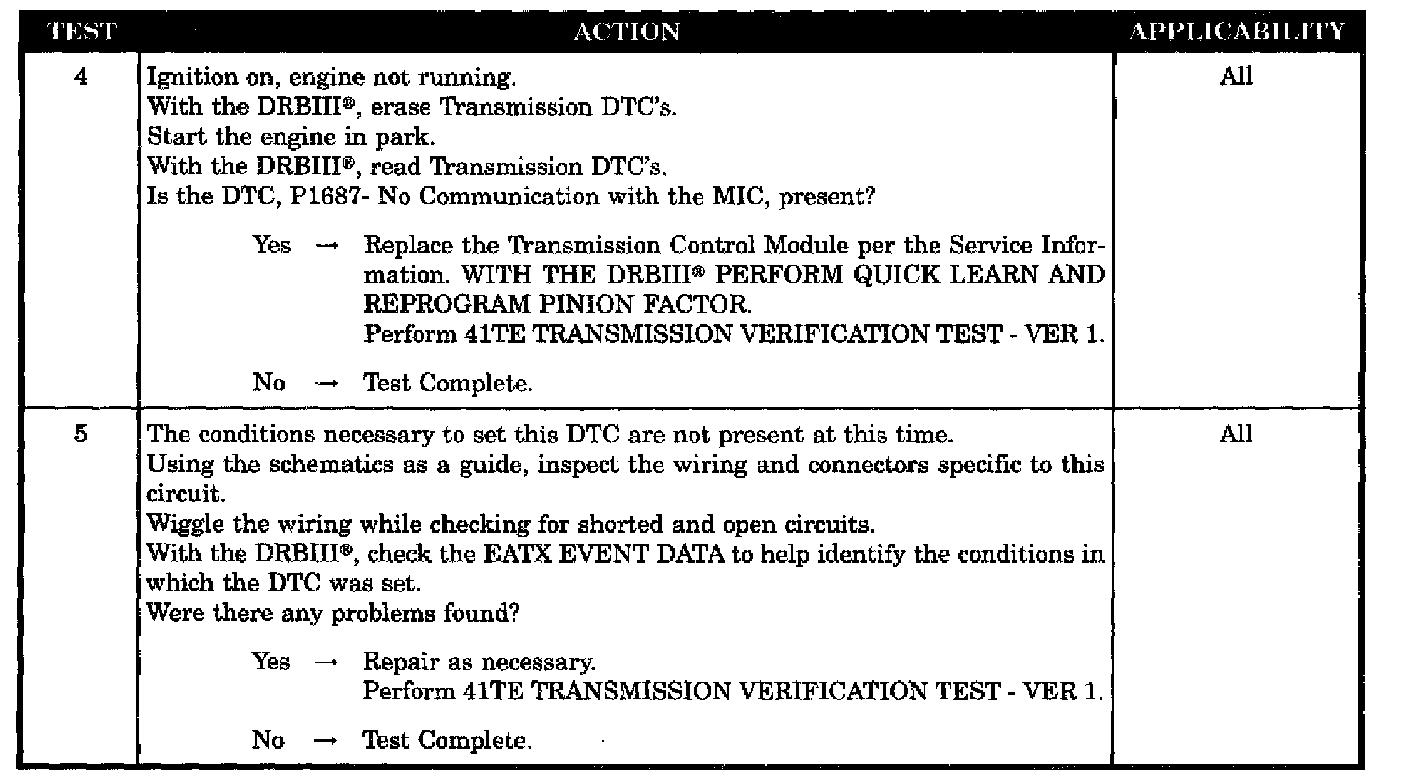

Test 4-5:

SYMPTOM
P1687-NO COMMUNICATION WITH THE MIC

WHEN MONITORED
Continuously with engine running.

SET CONDITION
The DTC sets in approximately 25 seconds if no BUS messages are received form the MIC.

POSSIBLE CAUSES
- OTHER BUS PROBLEMS PRESENT
- INTERMITTENT WIRING AND CONNECTORS
- MIC - NO COMMUNICATION
- TRANSMISSION CONTROL MODULE
