P0952

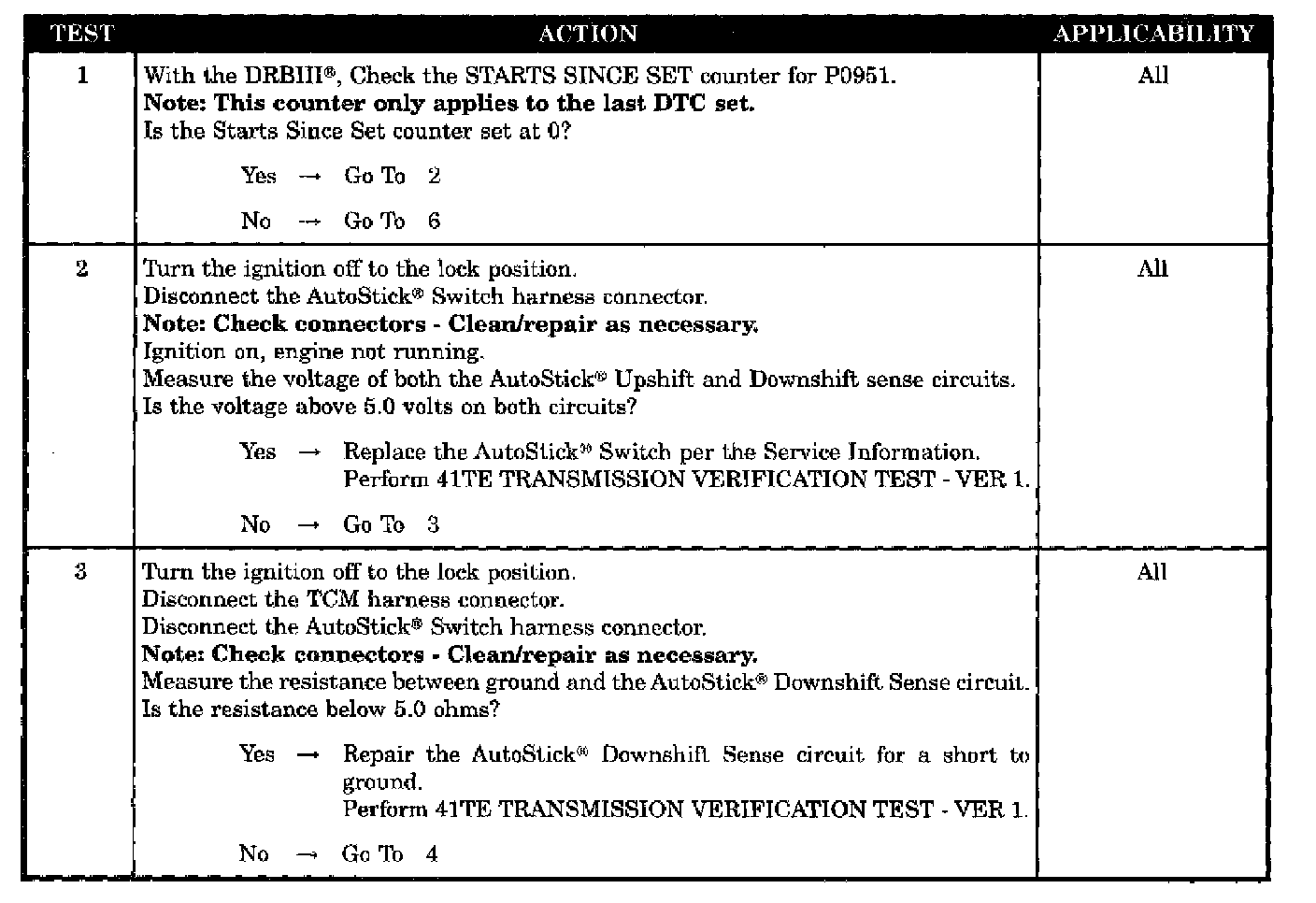

Test 1-3:

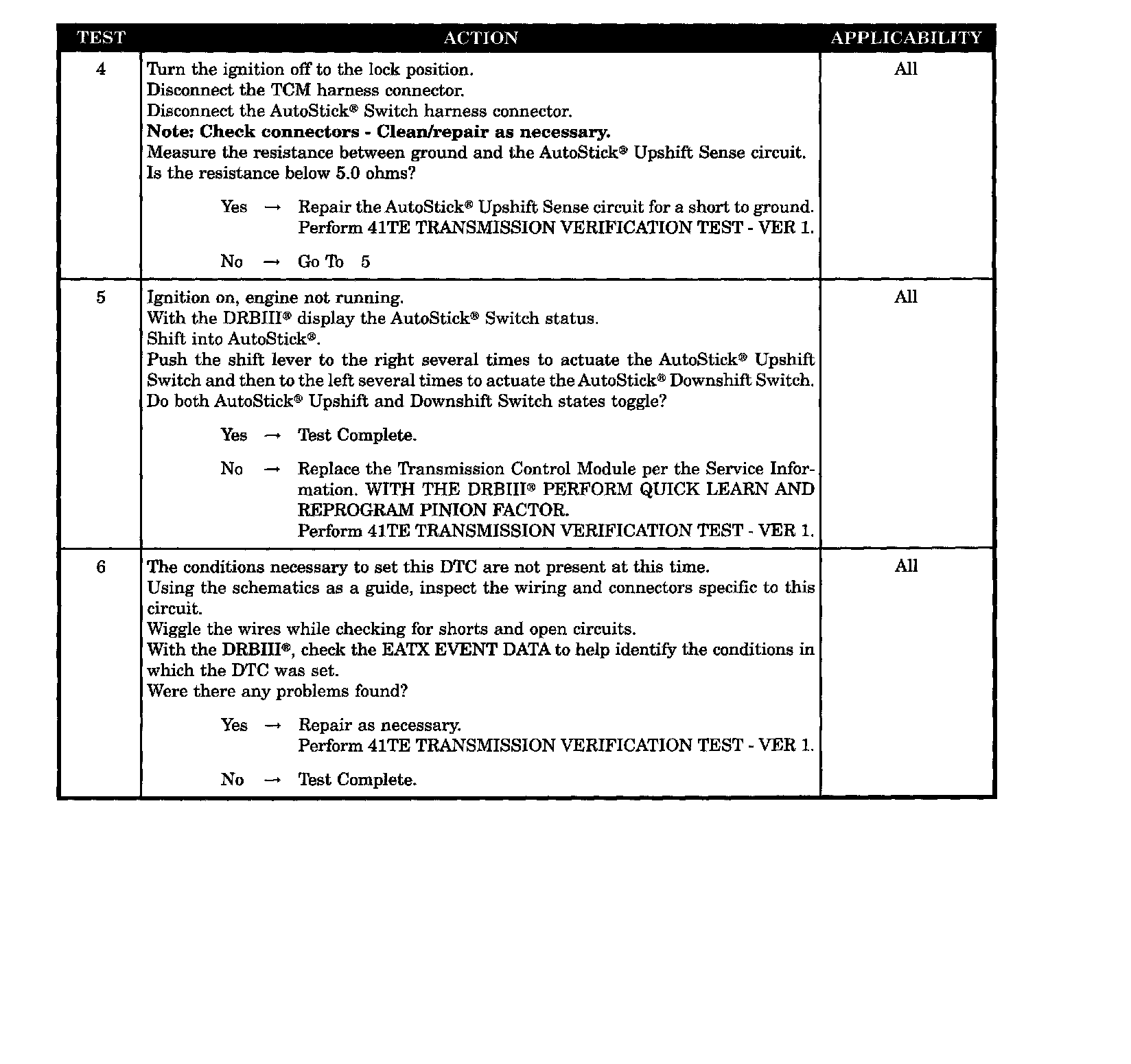

Test 4-6:

SYMPTOM
P0952-AUTOSTICK INPUT CIRCUIT LOW

WHEN MONITORED
Whenever the engine is running.

SET CONDITION
The transmission is not in the Autostick position and the upshift or downshift is reporting closed - below 0.3 volts or if both switches are reported closed at the same time.

POSSIBLE CAUSES
- AUTOSTICK SWITCH
- AUTOSTICK DOWNSHIFT SENSE CIRCUIT SHORT TO GROUND
- AUTOSTICK UPSHIFT SENSE CIRCUIT SHORT TO GROUND
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
