P0740

Test 1-2:

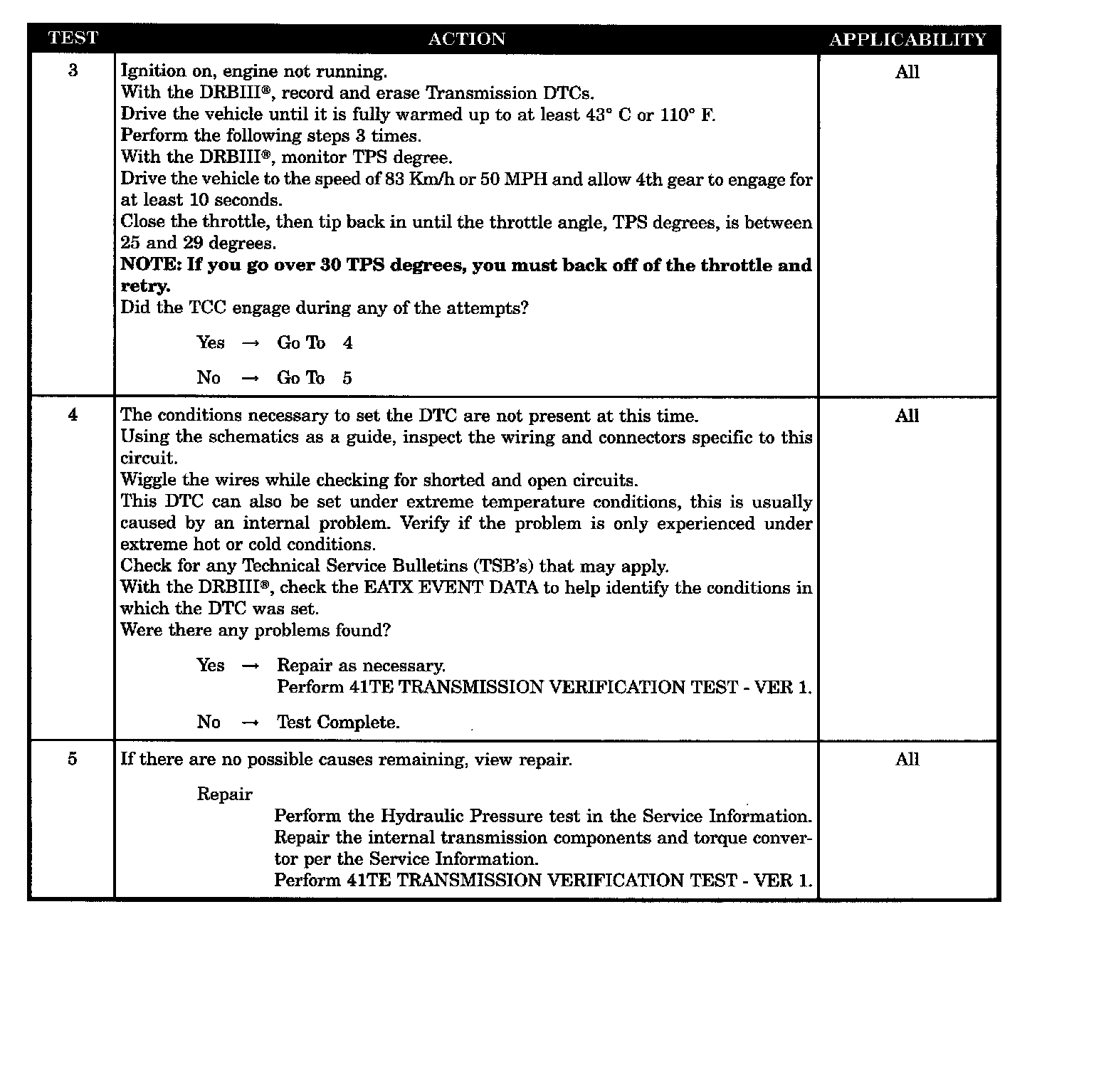

Test 3-5:

SYMPTOM
P0740-TORQUE CONVERTER CLUTCH CONTROL CIRCUIT

WHEN MONITORED
During Electronically Modulated Converter Clutch (EMCC) Operation.

SET CONDITION
Transmission must be in EMCC, with input speed greater than 1750 RPM. TCC/L-R Solenoid achieves the maximum duty cycle and can not pull engine RPM within 60 RPM of input speed. Or the Transmissions is in FEMCC and engine slips, TCC greater than 100 RPM for 10 seconds.

POSSIBLE CAUSES
- INTERNAL TRANSMISSION
- INTERMITTENT WIRING AND CONNECTORS
