P0713

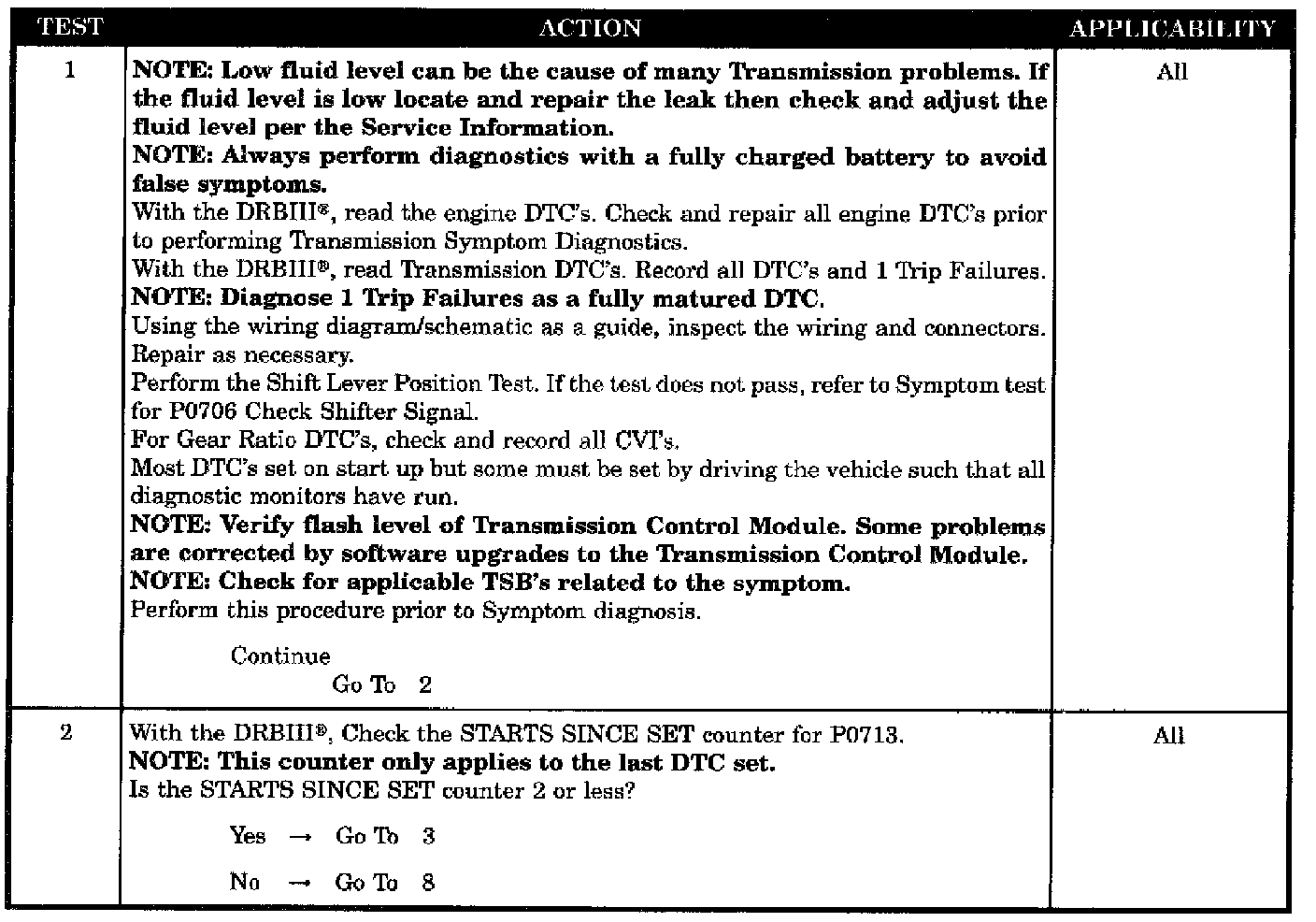

Test 1-2:

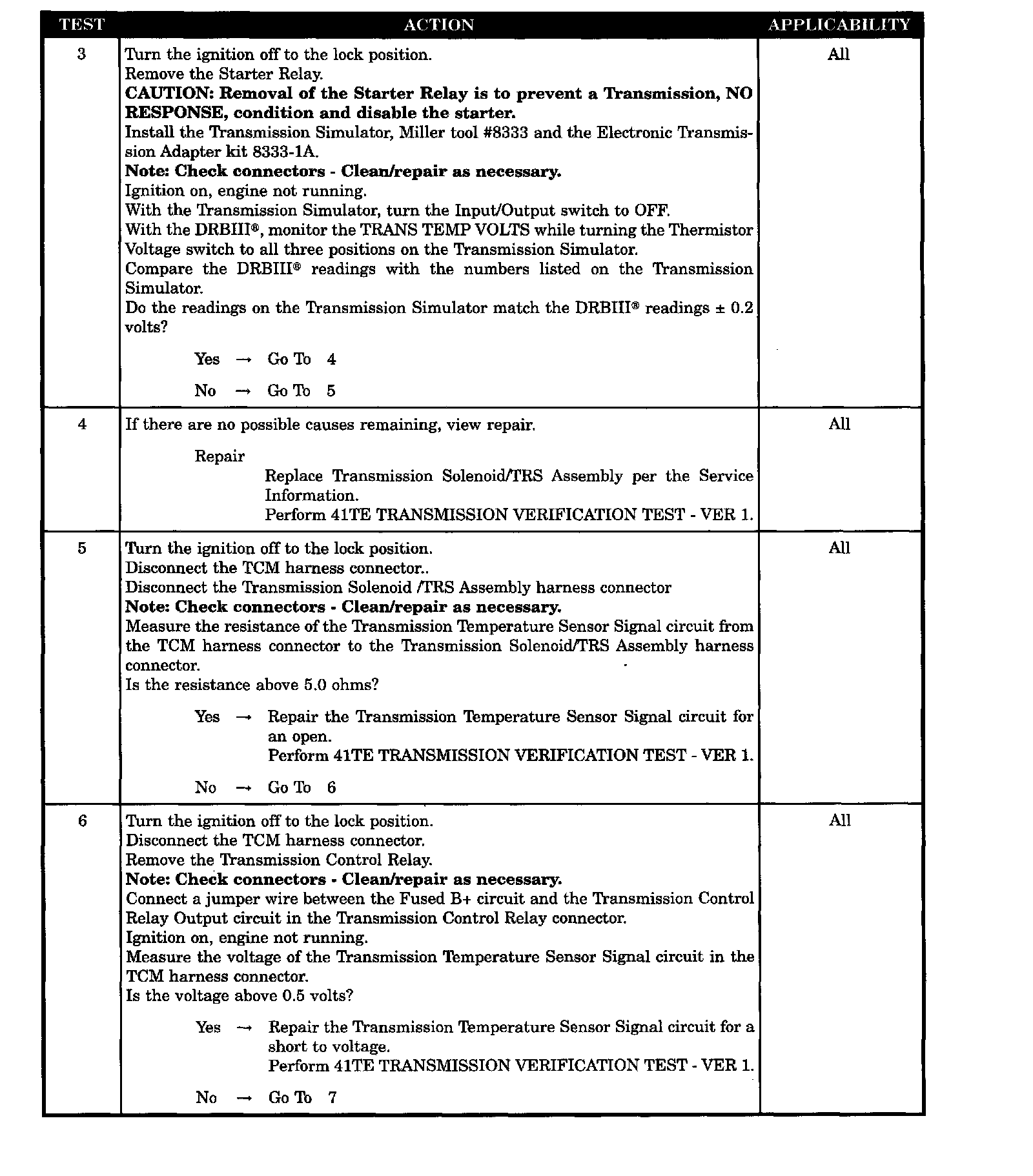

Test 3-6:

Test 7-8:

SYMPTOM
P0713-TRANSMISSION TEMPERATURE SENSOR HIGH

WHEN MONITORED
Continuously with the ignition on and engine running.

SET CONDITION
The DTC will set when the monitored Temperature Sensor voltage rises above 4.94 volts for the period of 0.45 seconds.

POSSIBLE CAUSES
- TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT OPEN
- TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
- TRANSMISSION TEMPERATURE SENSOR
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
