P0712

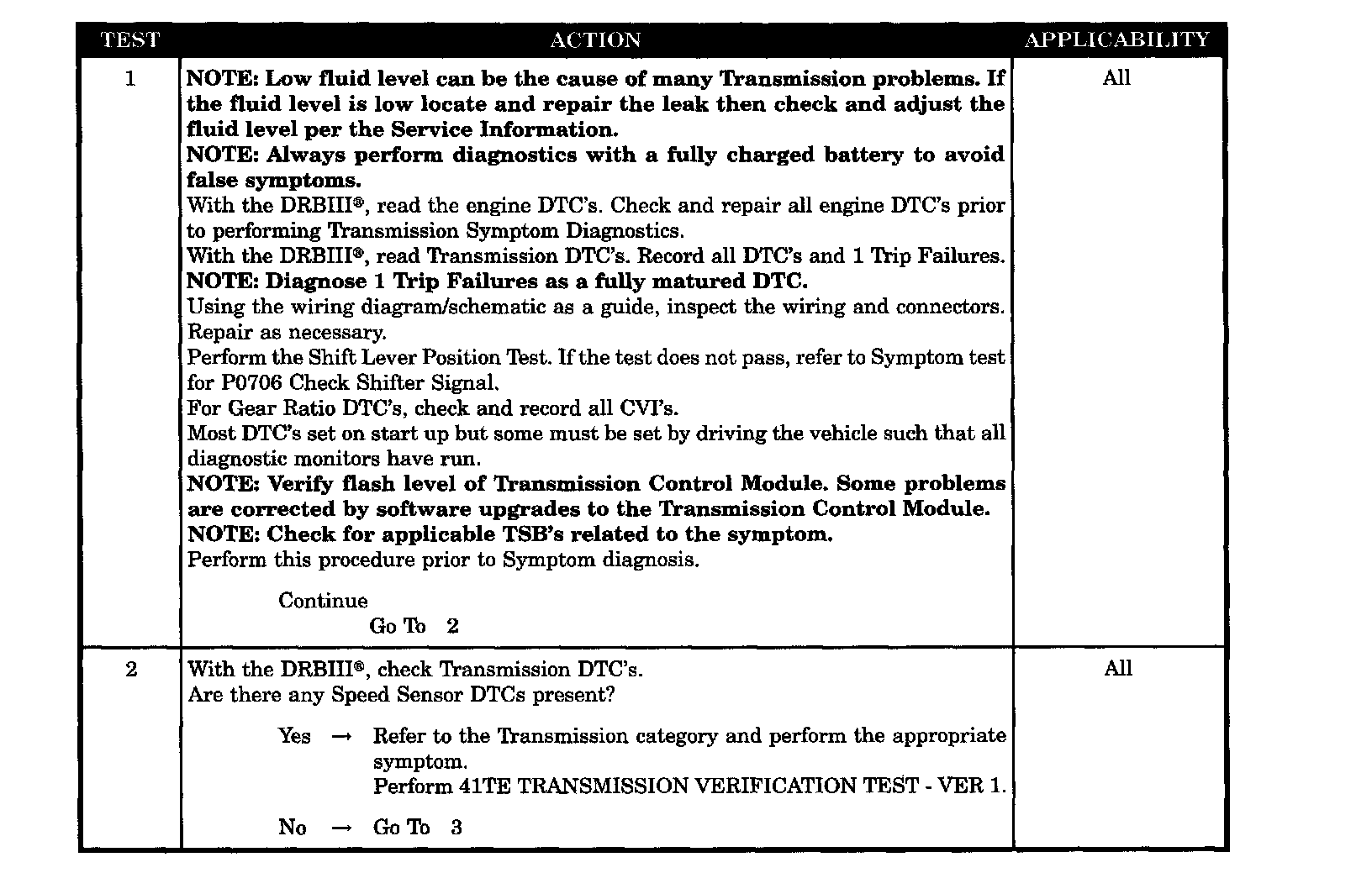

Test 1-2:

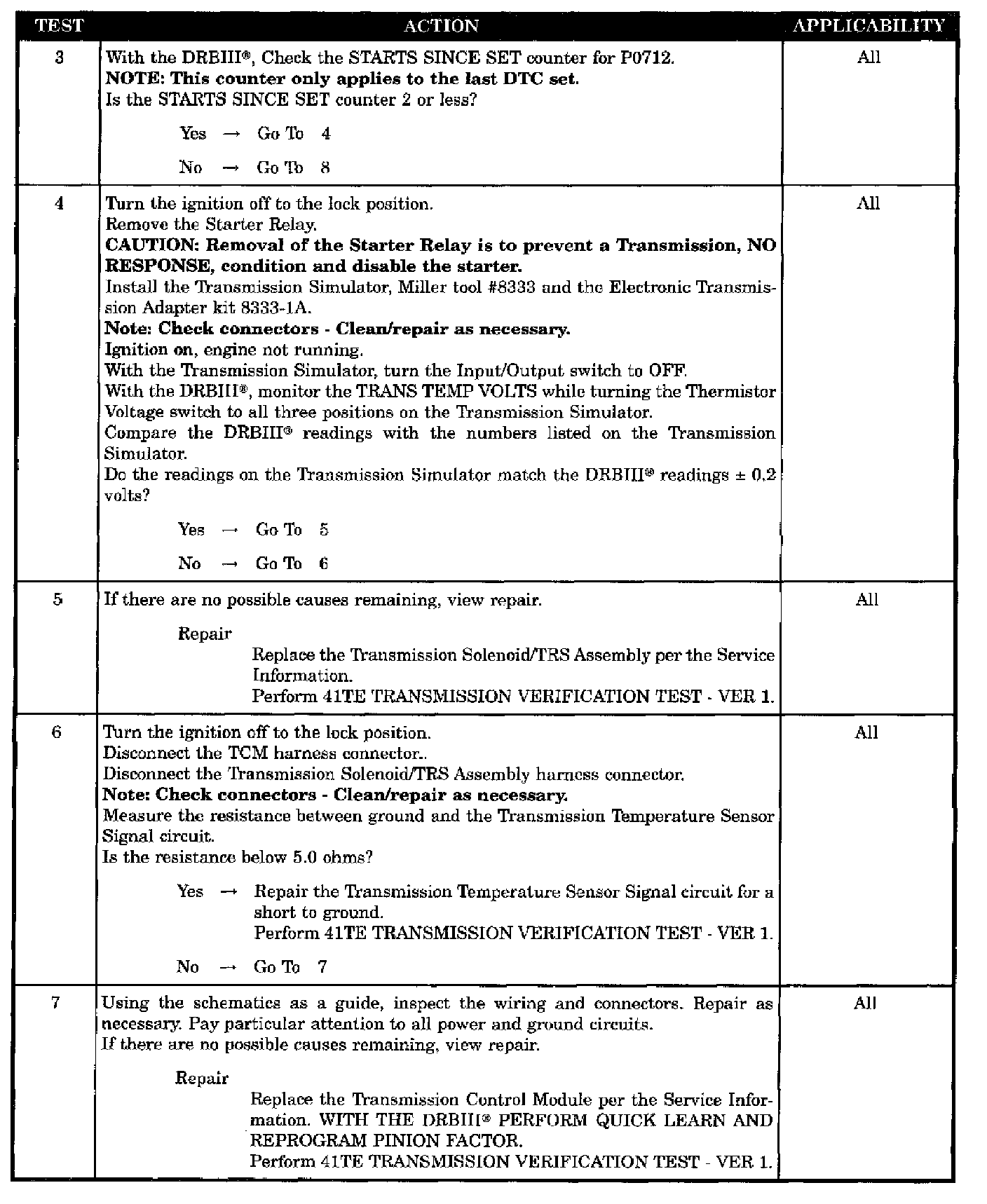

Test 3-7:

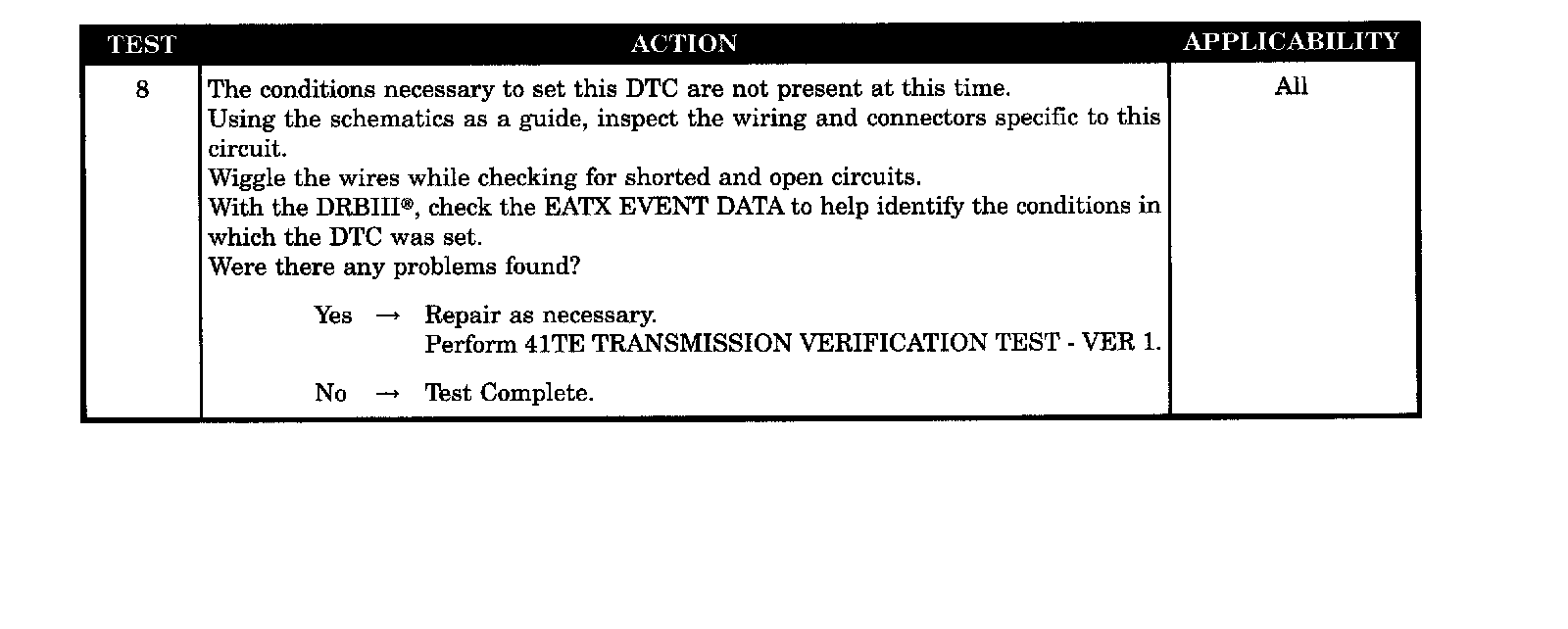

Test 8:

SYMPTOM
P0712-TRANSMISSION TEMPERATURE SENSOR LOW

WHEN MONITORED
Continuously with the ignition on and engine running.

SET CONDITION
The DTC will set when the monitored Temperature Sensor voltage drops below 0.078 volts for the period of 0.45 seconds.

POSSIBLE CAUSES
- RELATED DTC'S PRESENT
- TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT SHORT TO GROUND
- TRANSMISSION TEMPERATURE SENSOR
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
