P0711

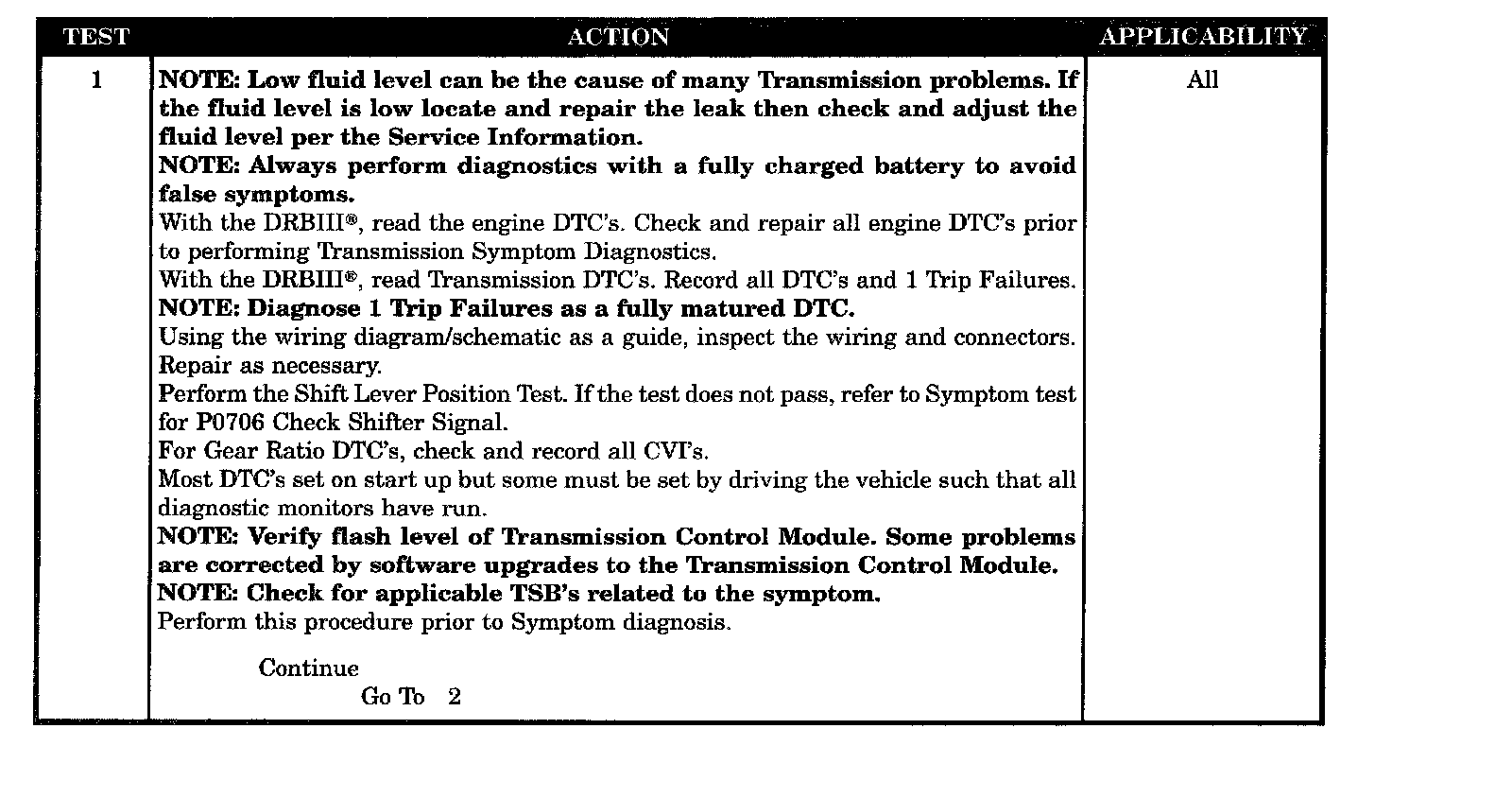

Test 1:

Test 2-6:

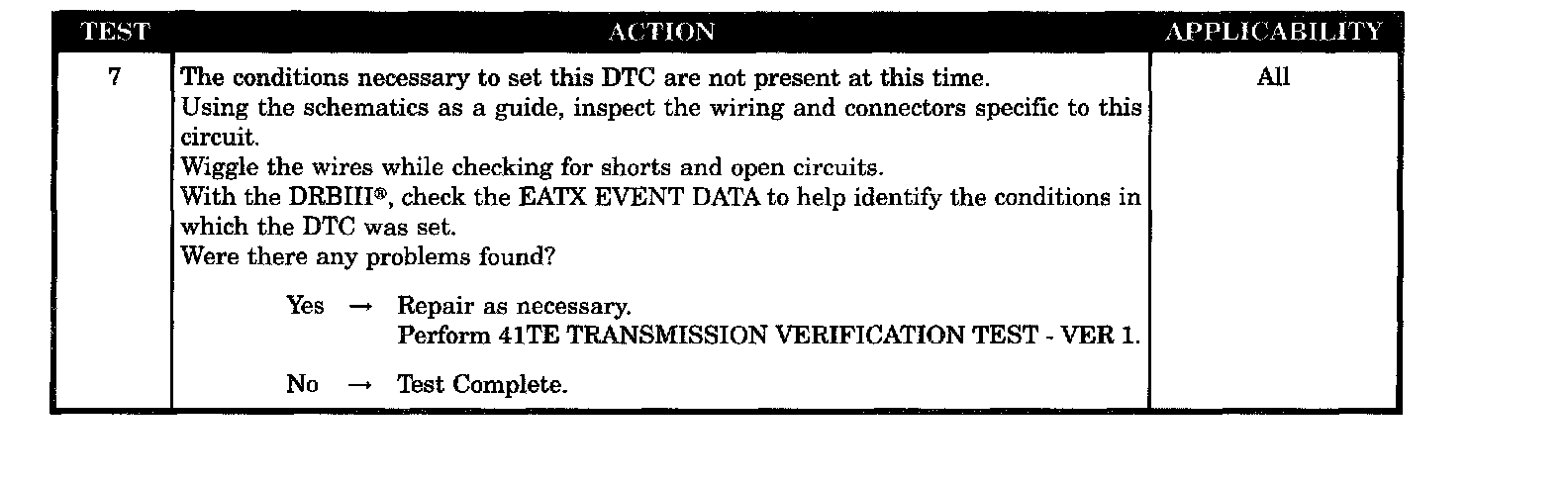

Test 7:

SYMPTOM
P0711-TRANSMISSION TEMPERATURE SENSOR PERFORMANCE

WHEN MONITORED
Continuously with the ignition on and engine running.

SET CONDITION
This DTC will set when the desired transmission temperature does not reach a normal operating temperature within a given time frame. Time is variable due to ambient temperature. Approximate times are starting temperature to warm up time: (-40 °F /-40 °C - 35 min) (-20 °F/ -28 °C - 25 min) (20 °F /-6.6 °C - 20 min) (60 °F/ 15.5 °C - 10 min)

POSSIBLE CAUSES
- RELATED DTC'S PRESENT
- TRANSMISSION TEMPERATURE SENSOR
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
