P0706

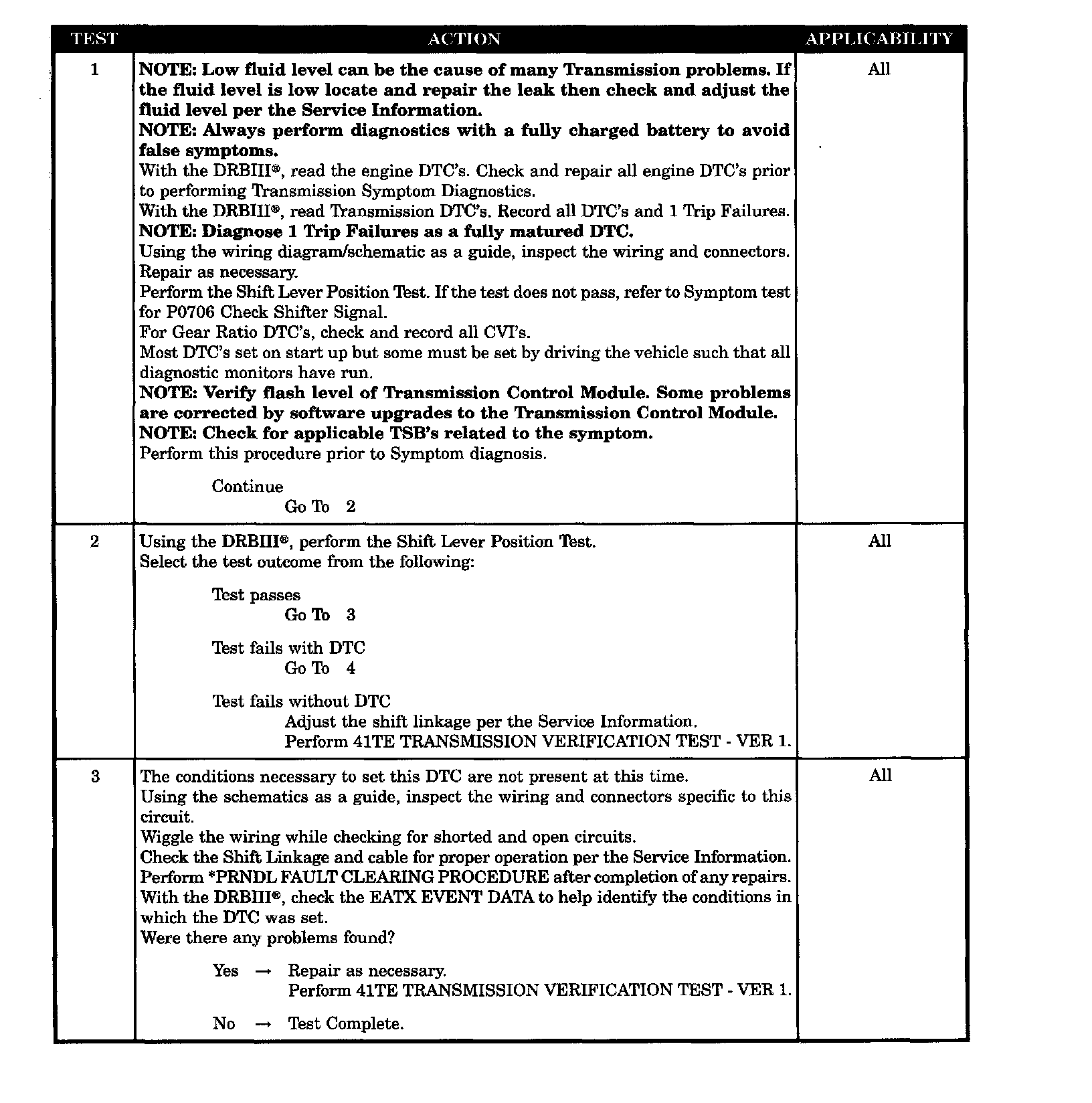

Test 1-3:

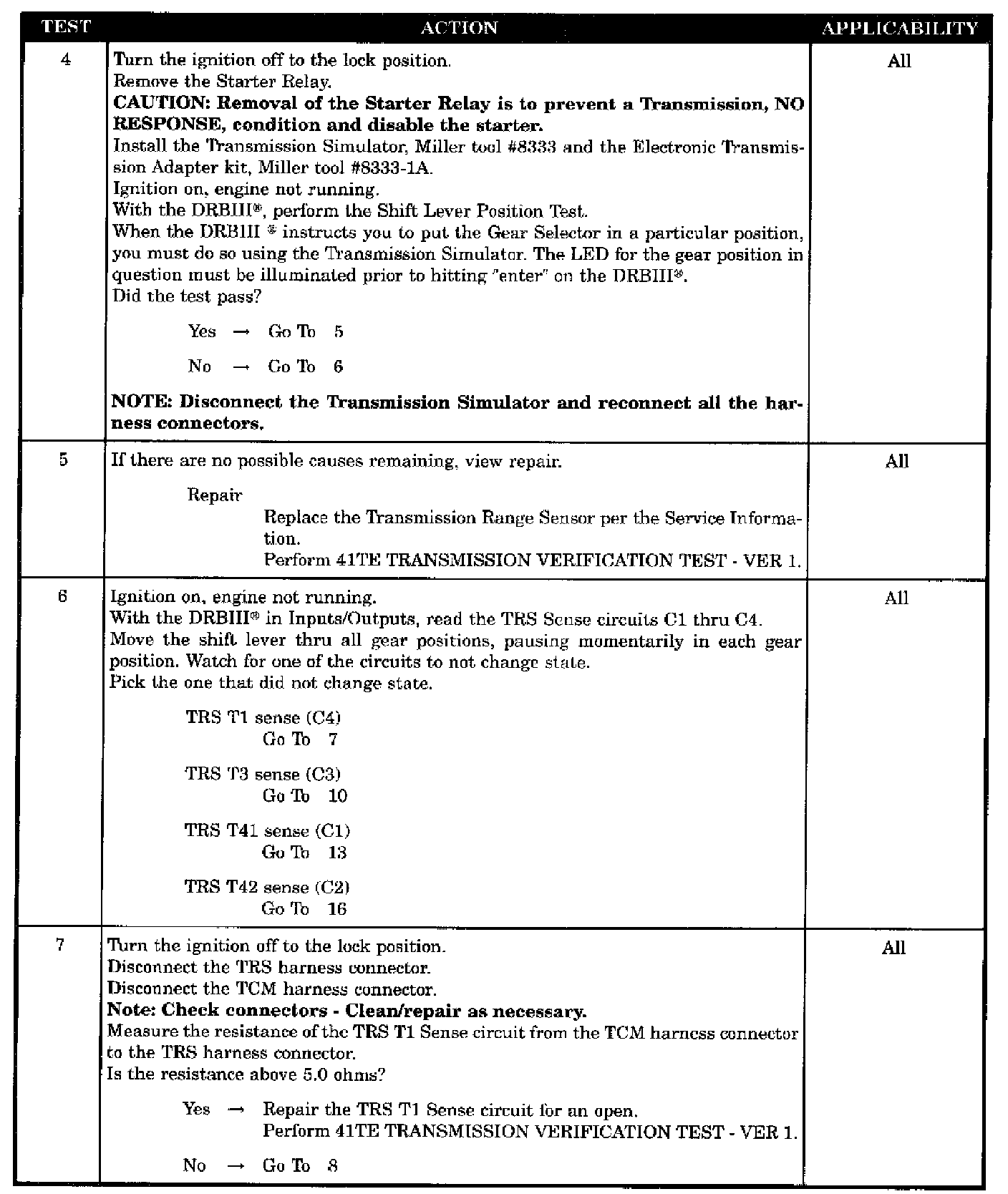

Test 4-7:

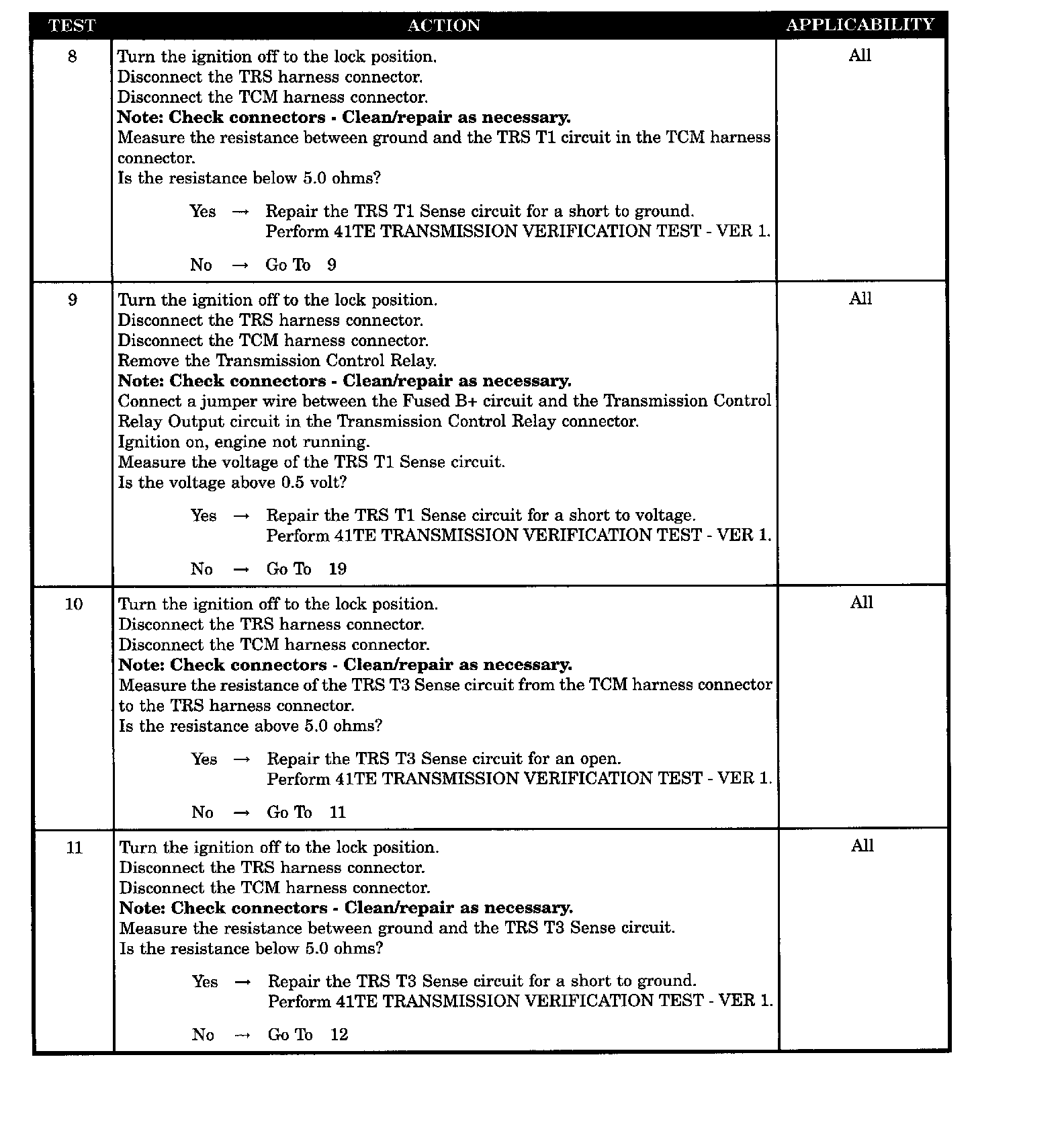

Test 8-11:

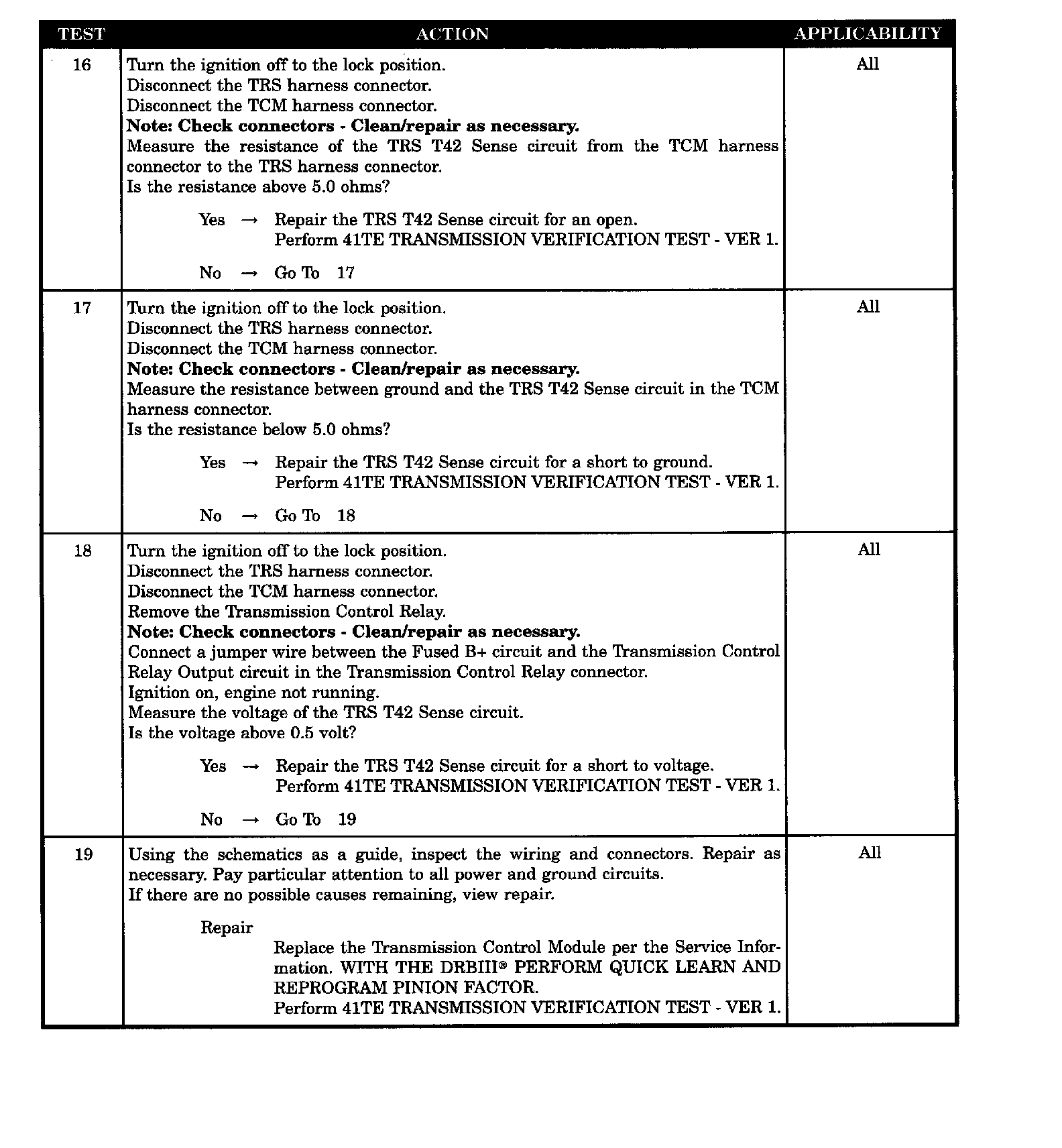

Test 12-15:

Test 16-19:

SYMPTOM
P0706-CHECK SHIFTER SIGNAL

WHEN MONITORED
Continuously with the ignition key on.

SET CONDITION
3 occurrences in one key start of an invalid PRNDL code which lasts for more than 0.1 second.

POSSIBLE CAUSES
- CONDITION P0706 PRESENT
- TRS T1 SENSE CIRCUIT OPEN
- TRS T3 SENSE CIRCUIT OPEN
- TRS T41 SENSE CIRCUIT OPEN
- TRS T42 SENSE CIRCUIT OPEN
- TRS T1 SENSE CIRCUIT SHORT TO GROUND
- TRS T3 SENSE CIRCUIT SHORT TO GROUND
- TRS T41 SENSE CIRCUIT SHORT TO GROUND
- TRS T42 SENSE CIRCUIT SHORT TO GROUND
- TRS T1 SENSE CIRCUIT SHORT TO VOLTAGE
- TRS T3 SENSE CIRCUIT SHORT TO VOLTAGE
- TRS T41 SENSE CIRCUIT SHORT TO VOLTAGE
- TRS T42 SENSE CIRCUIT SHORT TO VOLTAGE
- TRANSMISSION RANGE SENSOR
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
