P0613

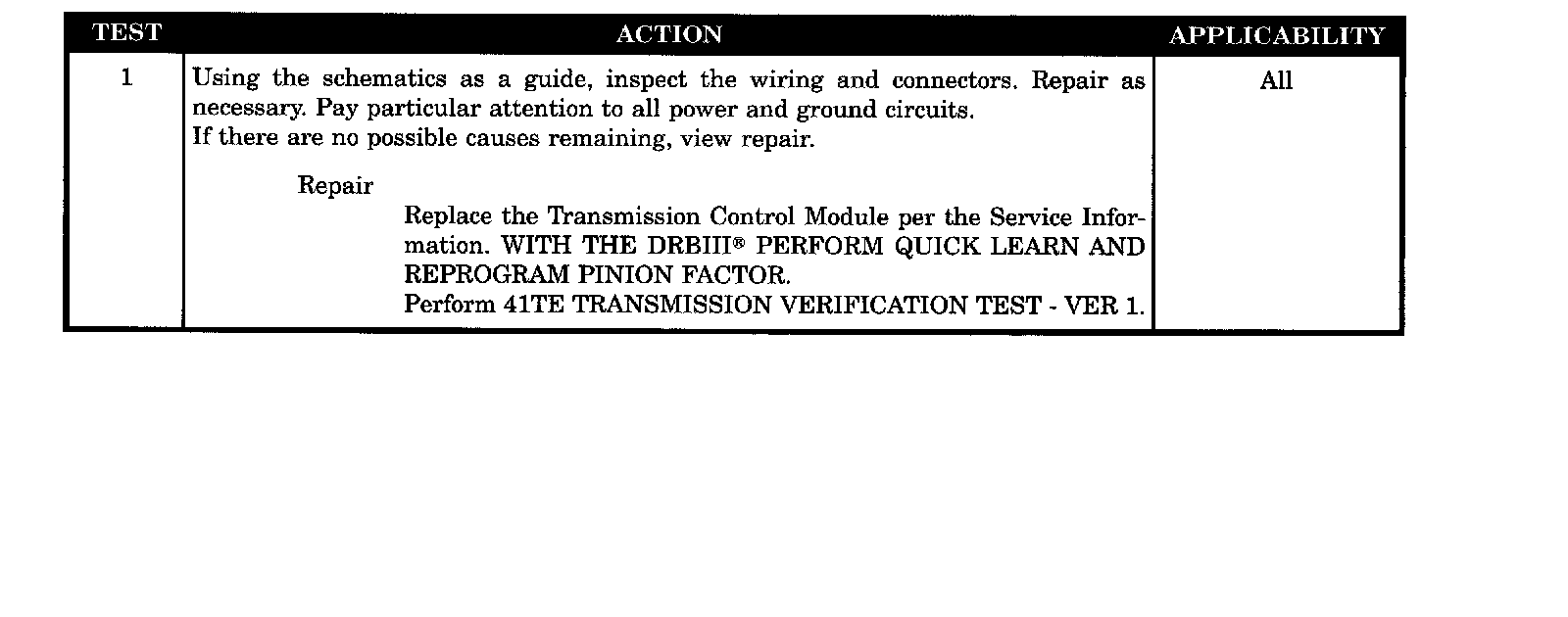

Test 1:

SYMPTOM
P0613-INTERNAL TCM

WHEN MONITORED
After the ignition is turned to the RUN position or after cranking the engine.

SET CONDITION
The controller runs a self diagnostic test that checks the integrity of the controllers RAM, ROM, and microprocessor. If the self diagnostic test fails in any one of series of different categories, the DTC will set.

POSSIBLE CAUSES
- TCM - INTERNAL ERROR
