P0432

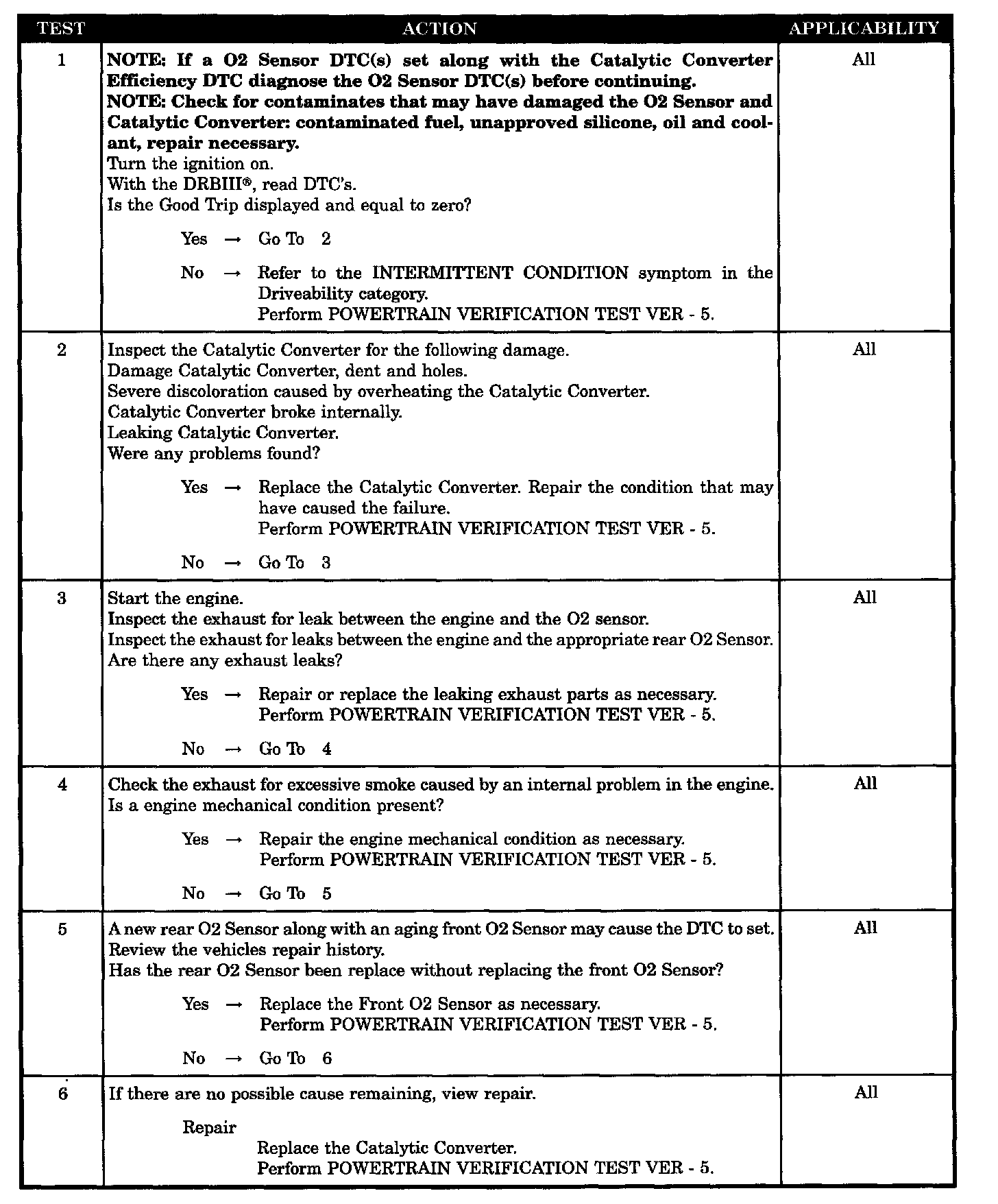

Test 1 - 6:

SYMPTOM
P0P0432-2/1 CATALYTIC CONVERTER EFFICIENCY

Test NOTE
This symptom is diagnosed using the test test P0420-1/1 CATALYTIC CONVERTER EFFICIENCY.

WHEN MONITORED
After engine warm up to 147 deg. F, 180 seconds of open throttle operation, at a speed greater than 35 mph, with the engine at 1400-2000 rpm and MAP between 13.0 and 17.8 inches of mercury (Hg).

SET CONDITION
As catalyst efficiency deteriorates, the switch rate of the downstream O2 sensor approaches that of the upstream O2 sensor. If at any point during the test the switch ratio reaches a predetermined value, the test fails and the code is set.

POSSIBLE CAUSES
- Good trip equal to zero
- Visually inspect catalytic converter
- Exhaust leak
- Engine mechanical condition
- Aging O2 sensor
- Catalytic converter
