Transmission Code

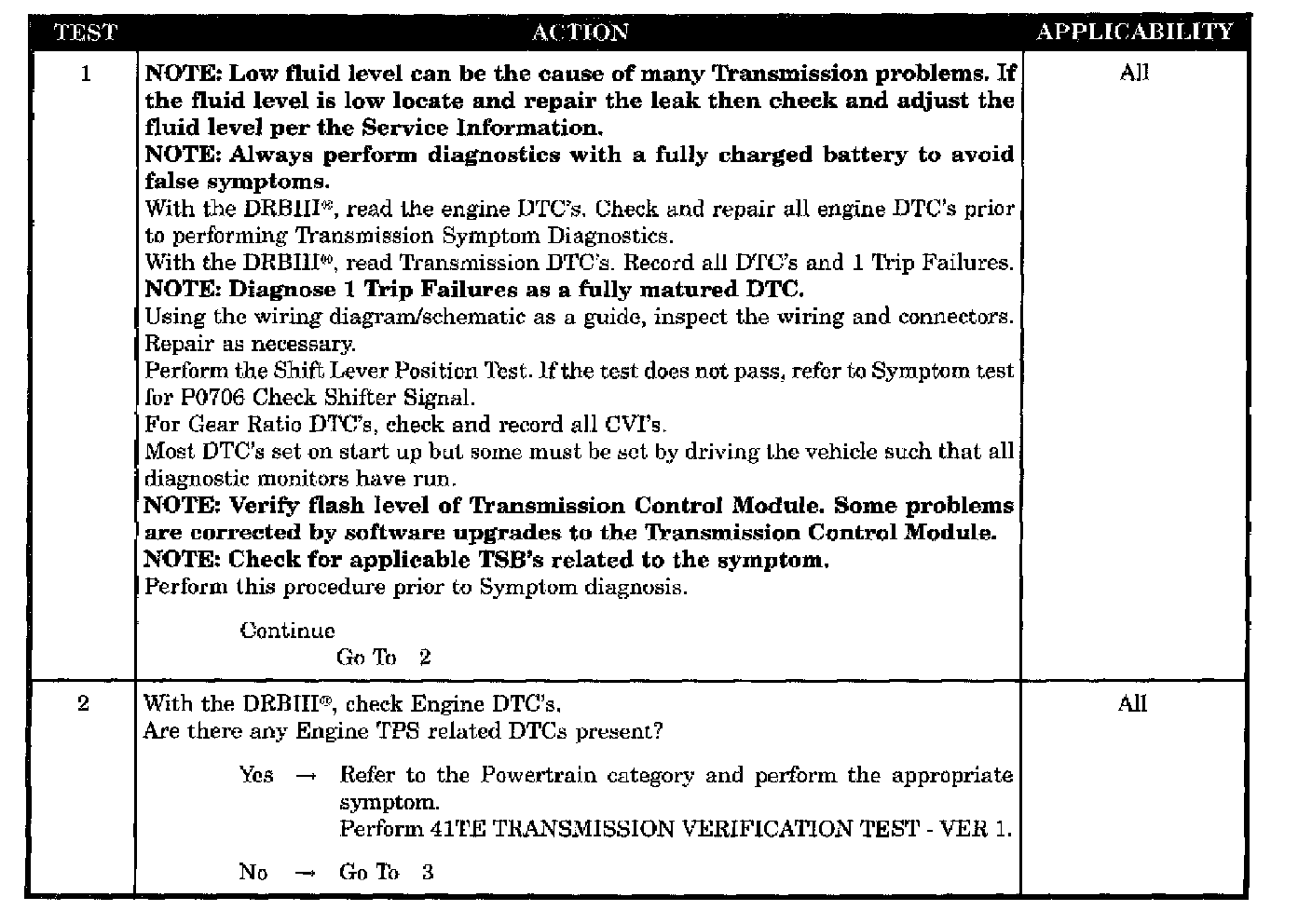

Test 1-2:

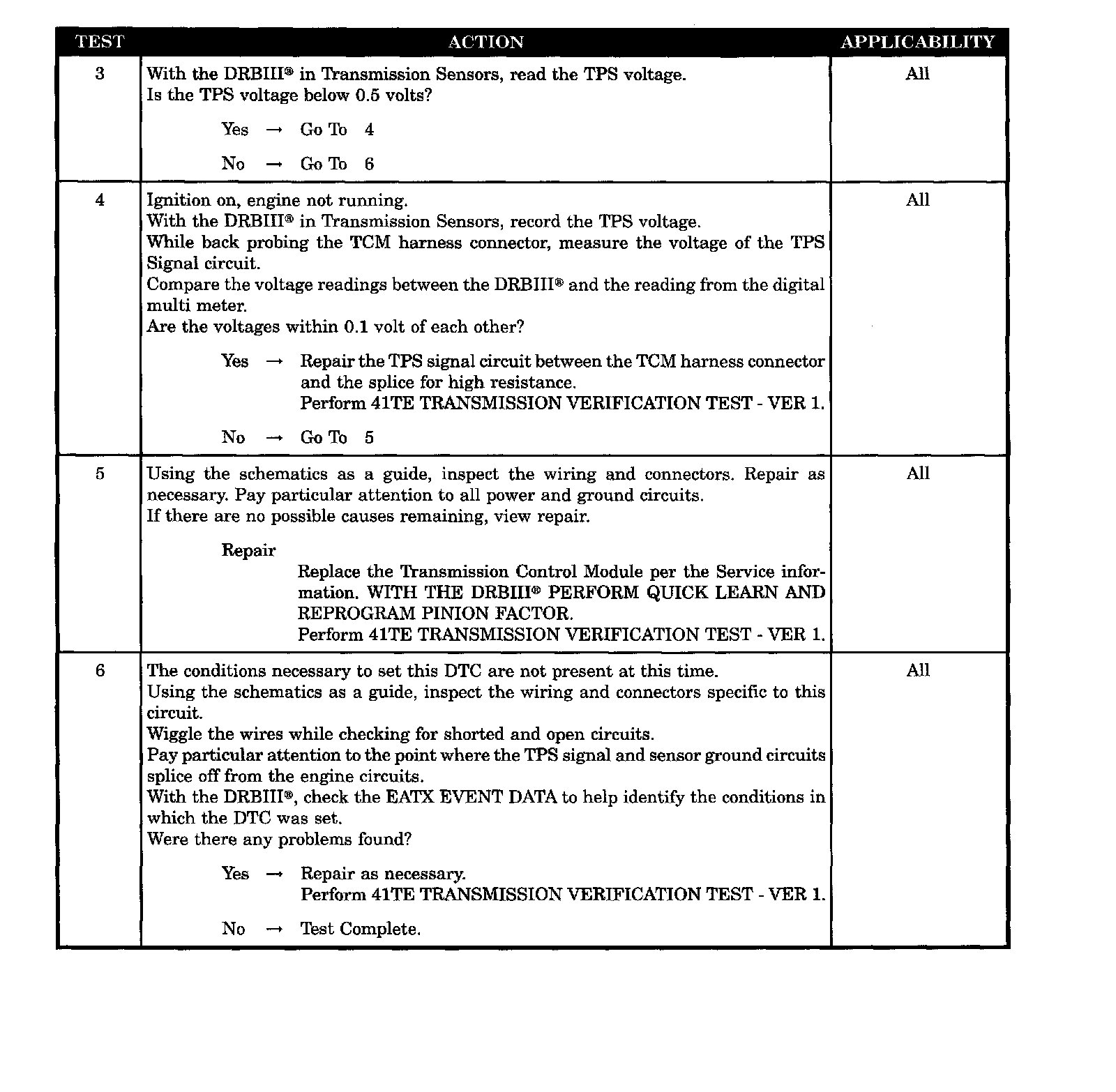

Test 3-6:

SYMPTOM
P0122-TPS/APPS LOW

When Monitored:
Continuously with the ignition on and engine running.

SET CONDITION
This DTC will set if the monitored TPS voltage drops below 0.078 volts for the period of 0.48 seconds.

POSSIBLE CAUSES
- ENGINE TPS DTC'S PRESENT
- TPS SIGNAL CIRCUIT HIGH RESISTANCE
- TRANSMISSION CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
