No PCI Transmission

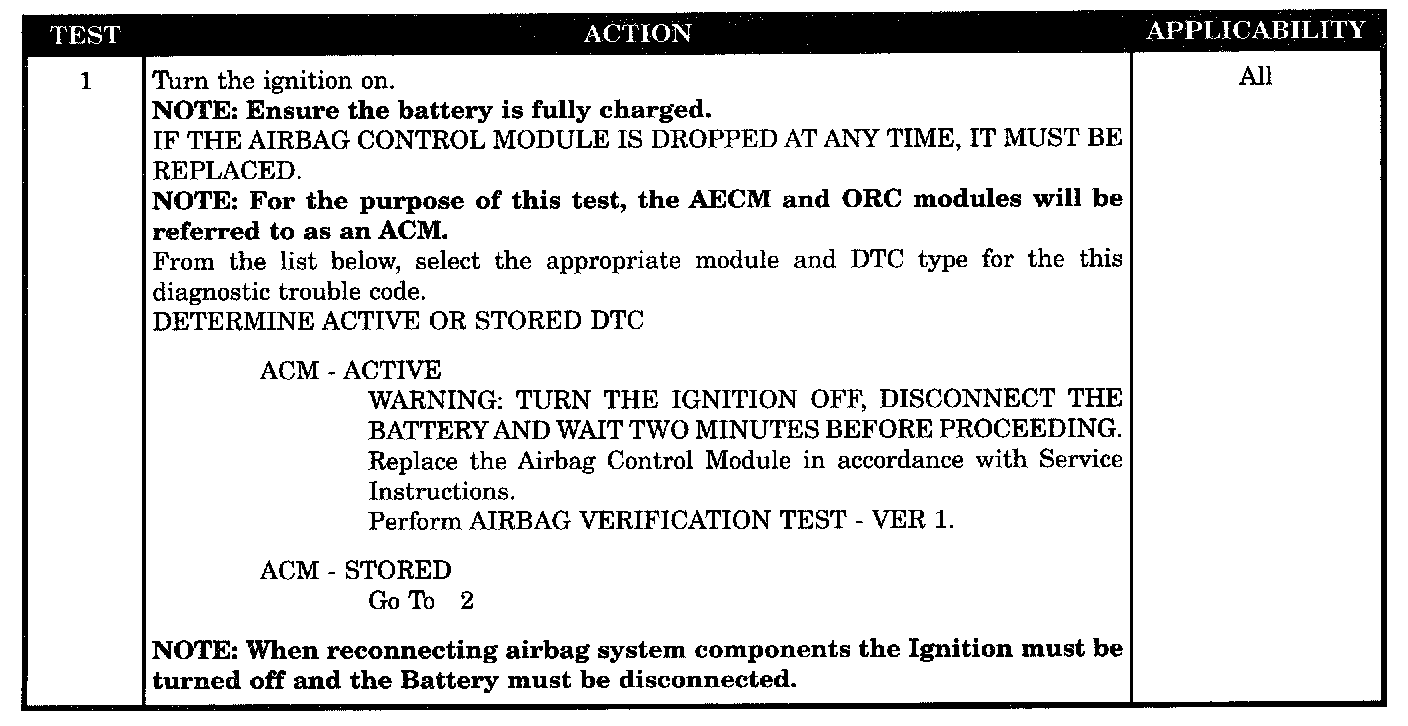

Test 1:

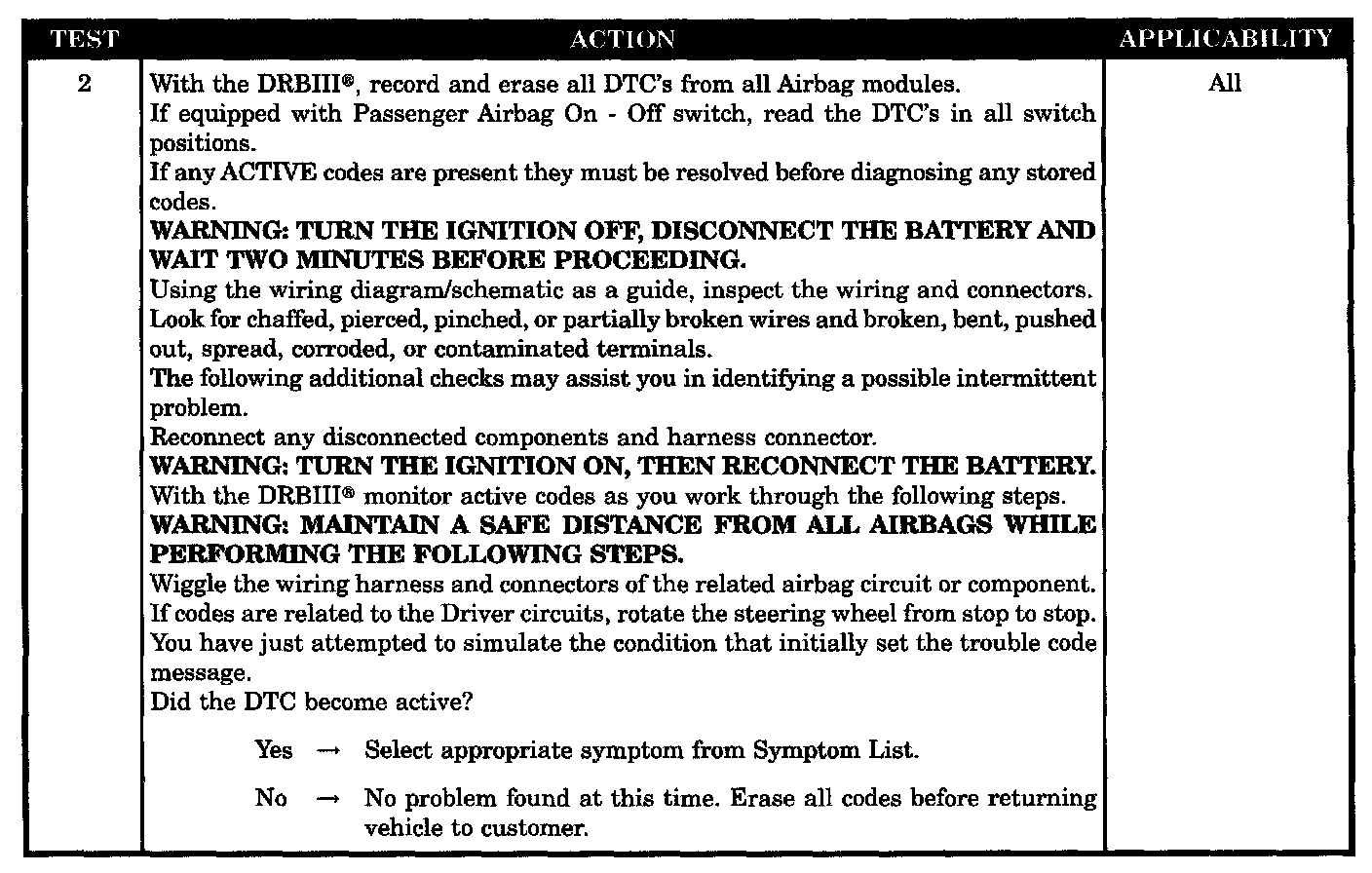

Test 2:

SYMPTOM
NO PCI TRANSMISSION

WHEN MONITORED
With the ignition on and the module transmitting information on the BUS.

SET CONDITION
The code will set immediately if the on-board diagnostic cannot detect the module transmitting information on the BUS. NOTE: Any Bus Failure will may cause a stored code to set.

POSSIBLE CAUSES
- Airbag control module - ACM
- Stored code or intermittent condition
- Active code present
