Engine Code

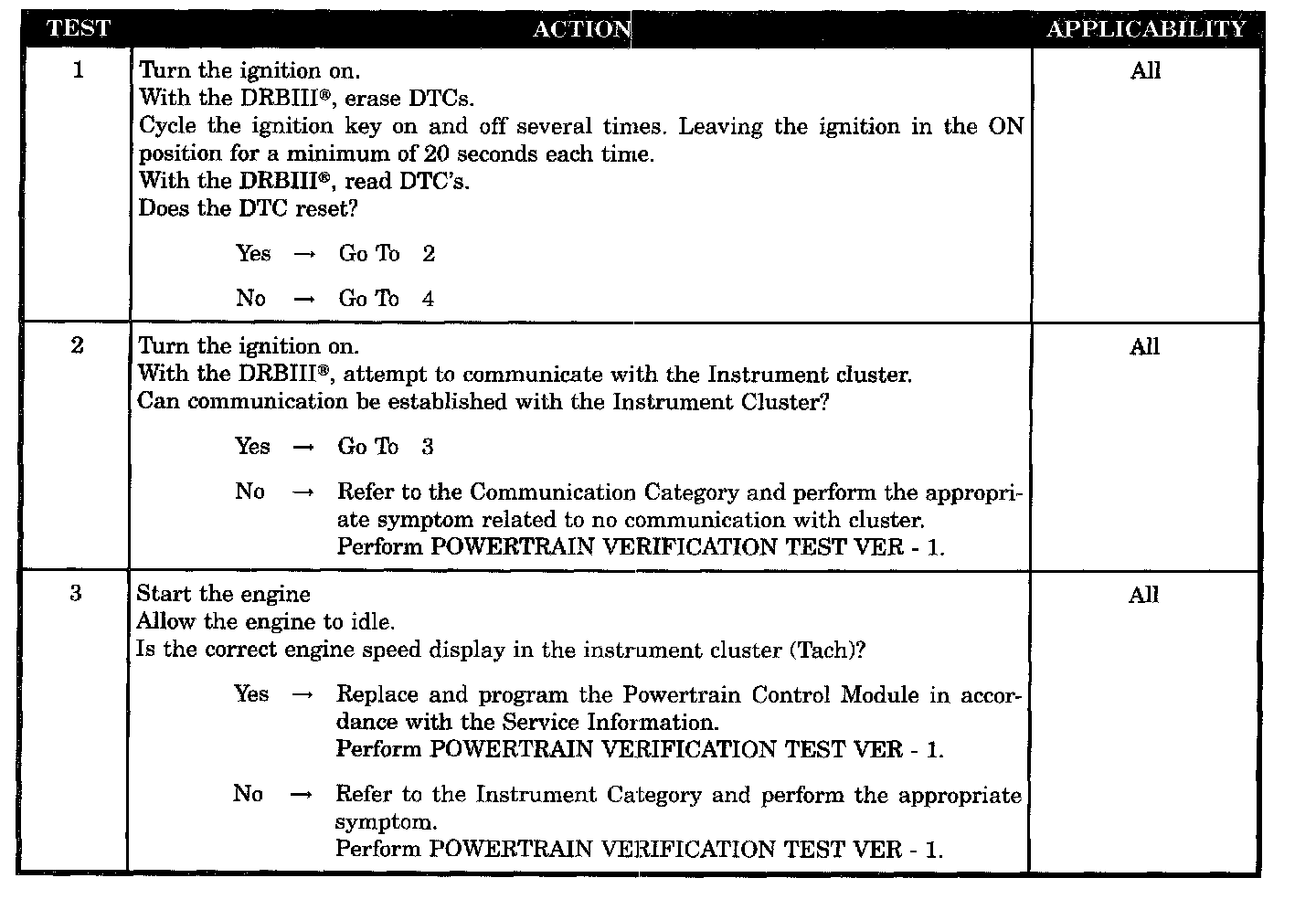

Test 1 - 3:

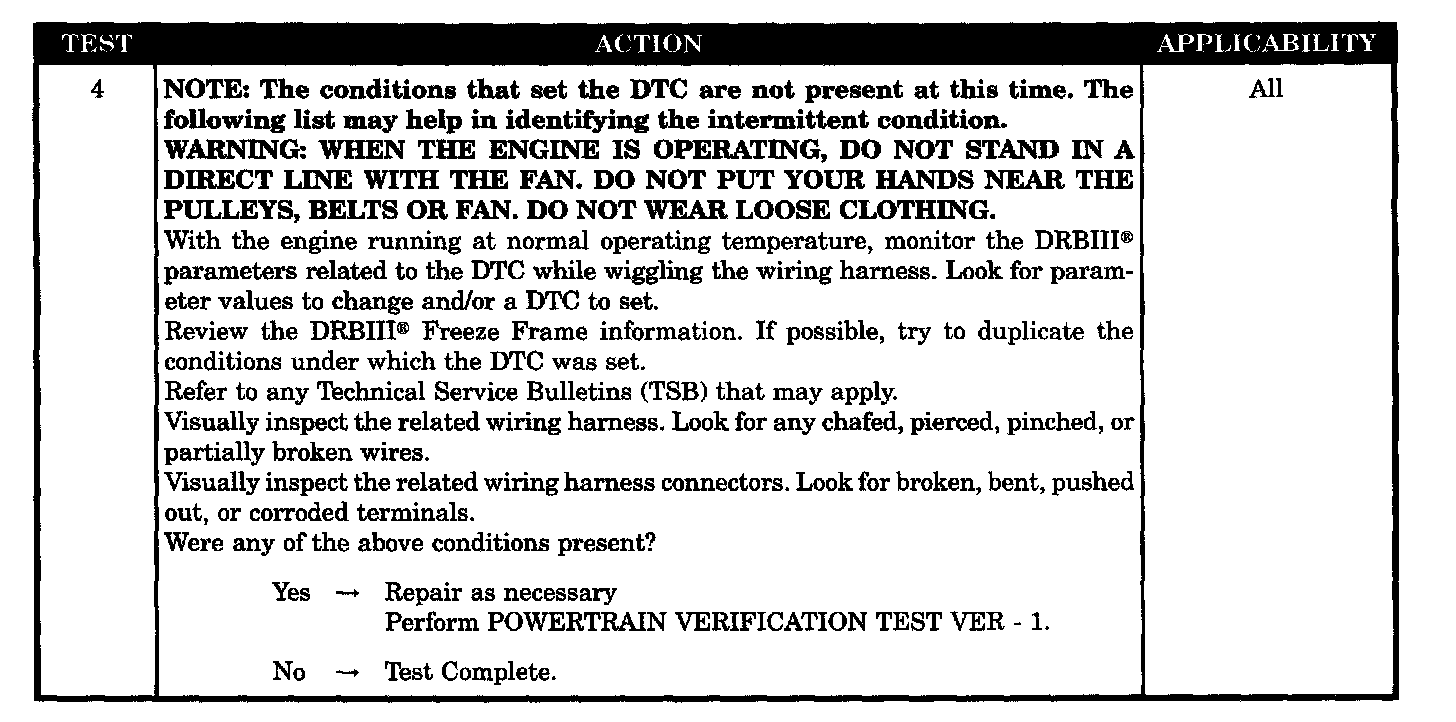

Test 4:

SYMPTOM
P1687-NO CLUSTER BUS MESSAGE

WHEN MONITORED
Ignition key on.

SET CONDITION
No messages received from the MIC (Instrument Cluster) for 20 seconds.

POSSIBLE CAUSES
- Intermittent condition
- Communicate with cluster
- Instrument cluster operation
- PCM
