P0218

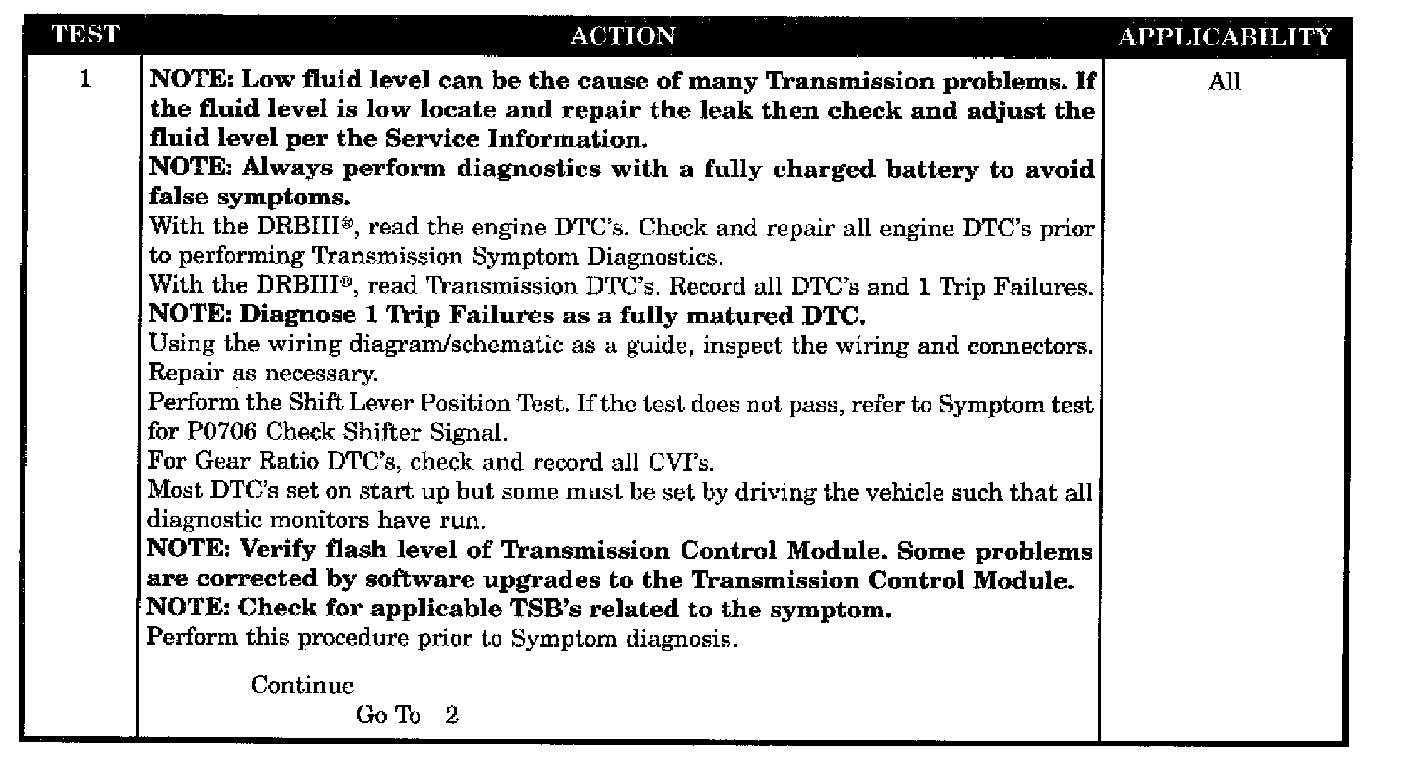

Test 1:

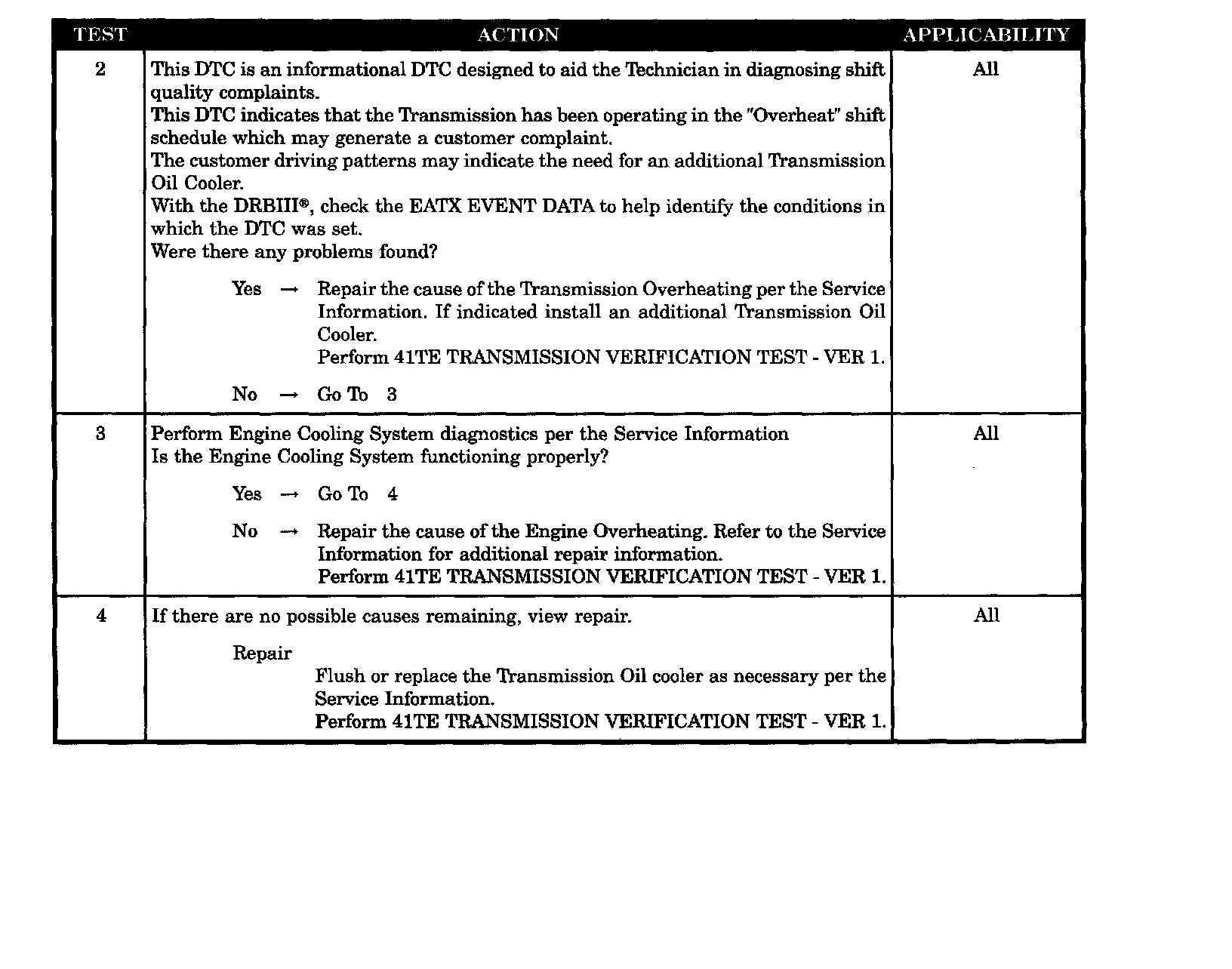

Test 2-4:

SYMPTOM
P0218-HIGH TEMPERATURE OPERATION ACTIVATED

WHEN MONITORED
Whenever the engine is running.

SET CONDITION
Immediately when the Overheat shift schedule is activated when the Transmission Oil Temperature reaches 116 °C or 240 °F.

POSSIBLE CAUSES
- TRANSMISSION OIL COOLER PLUGGED
- HIGH TEMPERATURE OPERATIONS ACTIVATED
