Checking Park/Neutral Switch Operation

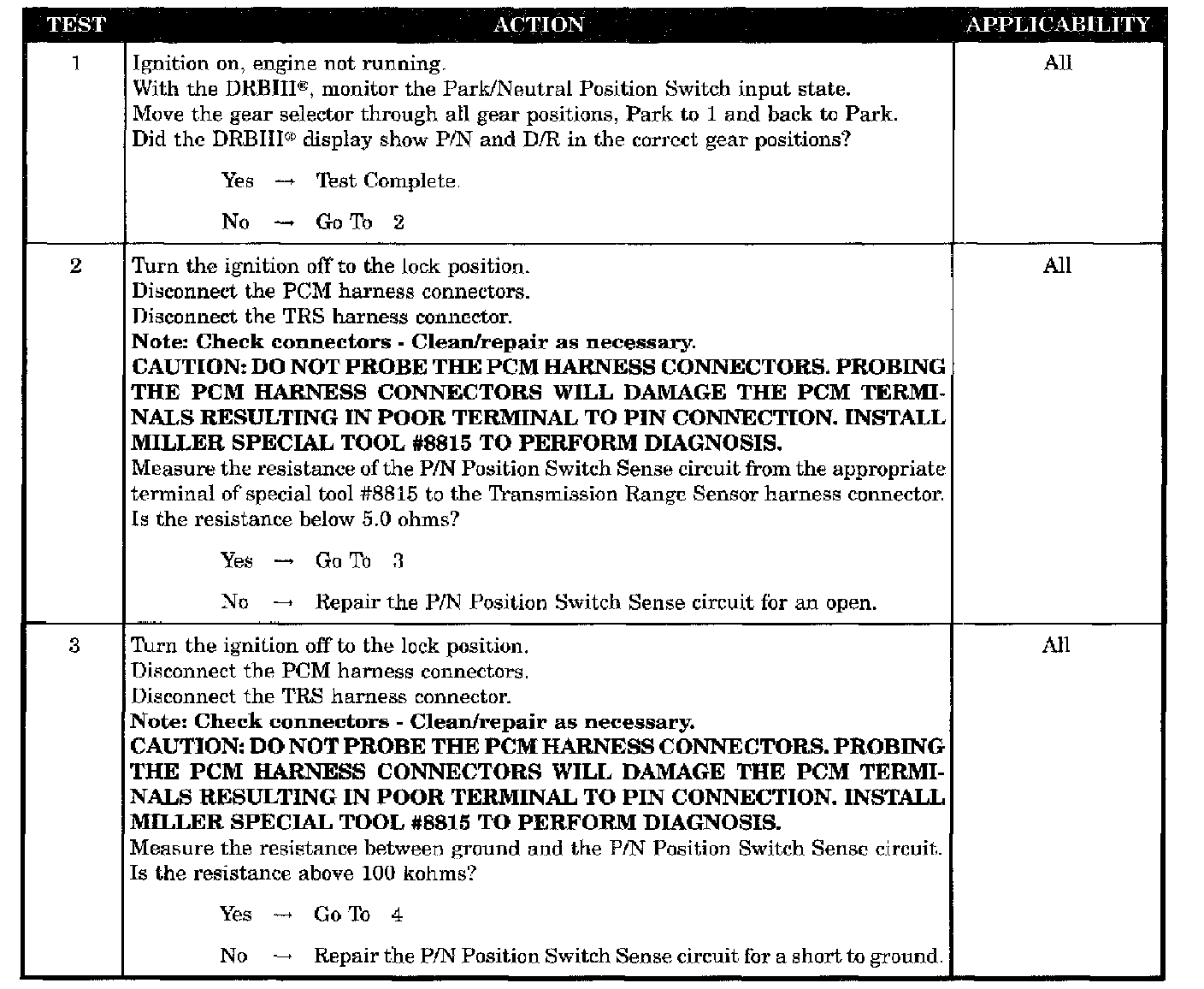

Test 1-3:

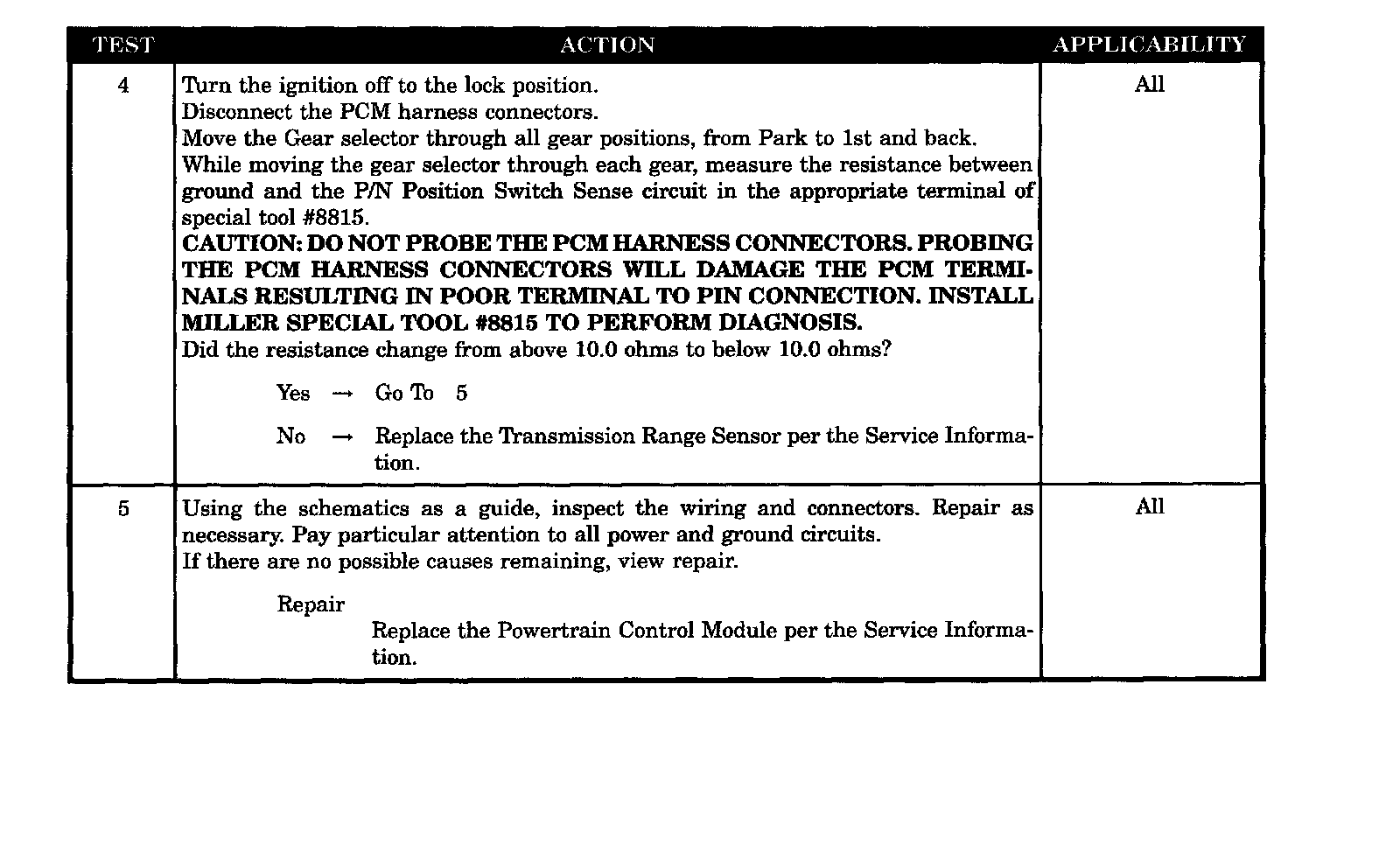

Test 4-5:

SYMPTOM
CHECKING PARK/NEUTRAL SWITCH OPERATION

POSSIBLE CAUSES
- P/N POSITION SWITCH SENSE CIRCUIT OPEN
- P/N POSITION SWITCH SENSE CIRCUIT SHORT TO GROUND
- TRANSMISSION RANGE SENSOR
- POWERTRAIN CONTROL MODULE
