No Manual Autostick Operation

Test 1-3:

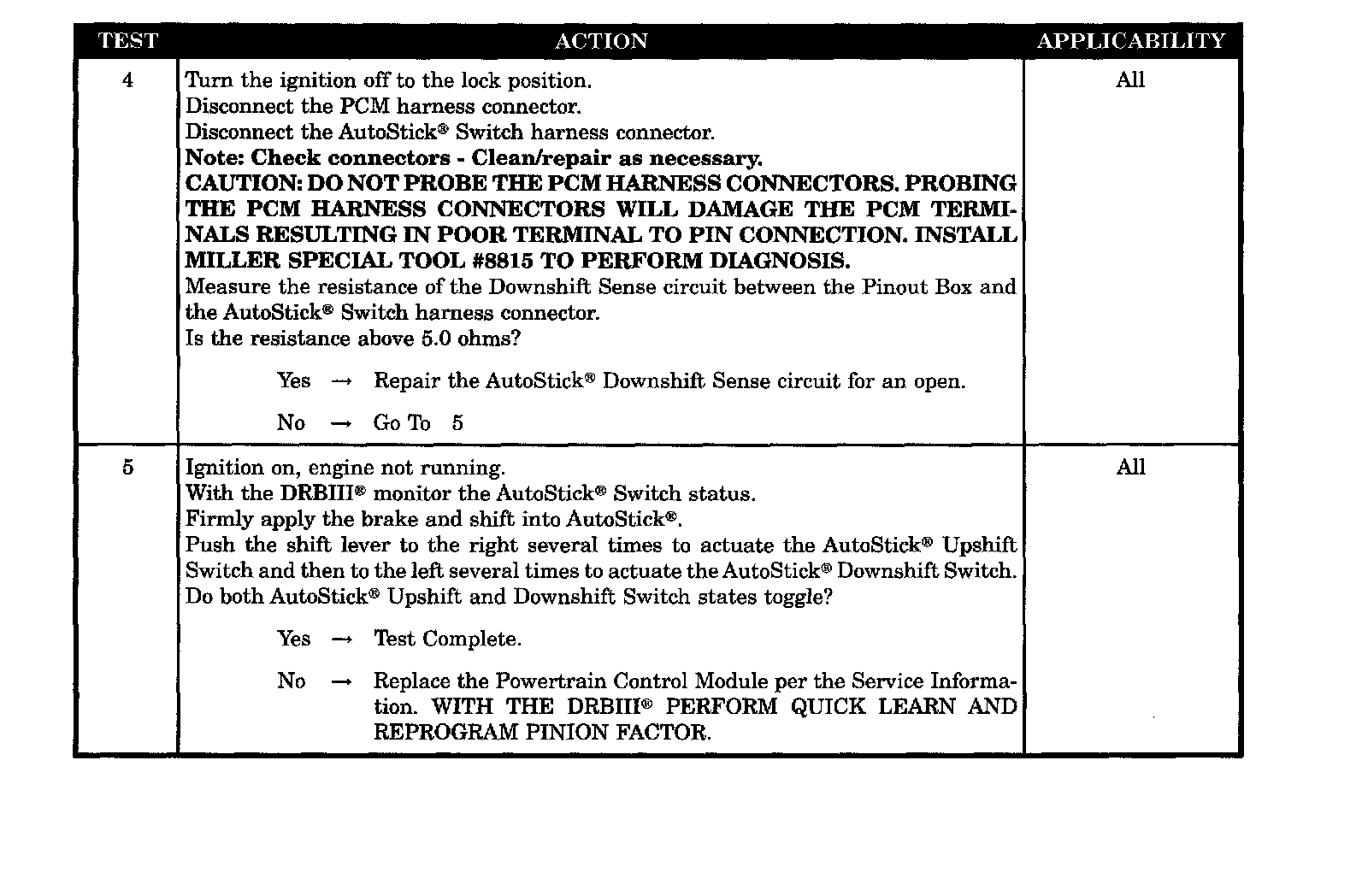

Test 4-5:

SYMPTOM
NO MANUAL AUTOSTICK OPERATION

POSSIBLE CAUSES
- AUTOSTICK DOWNSHIFT SENSE CIRCUIT OPEN
- AUTOSTICK GROUND CIRCUIT OPEN
- AUTOSTICK UPSHIFT SENSE CIRCUIT OPEN
- FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
- PCM - AUTOSTICK
