P2302

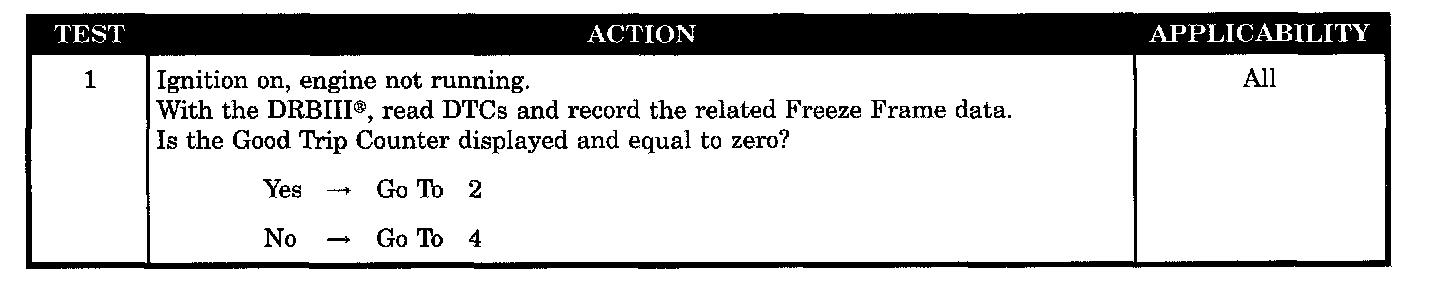

Test 1:

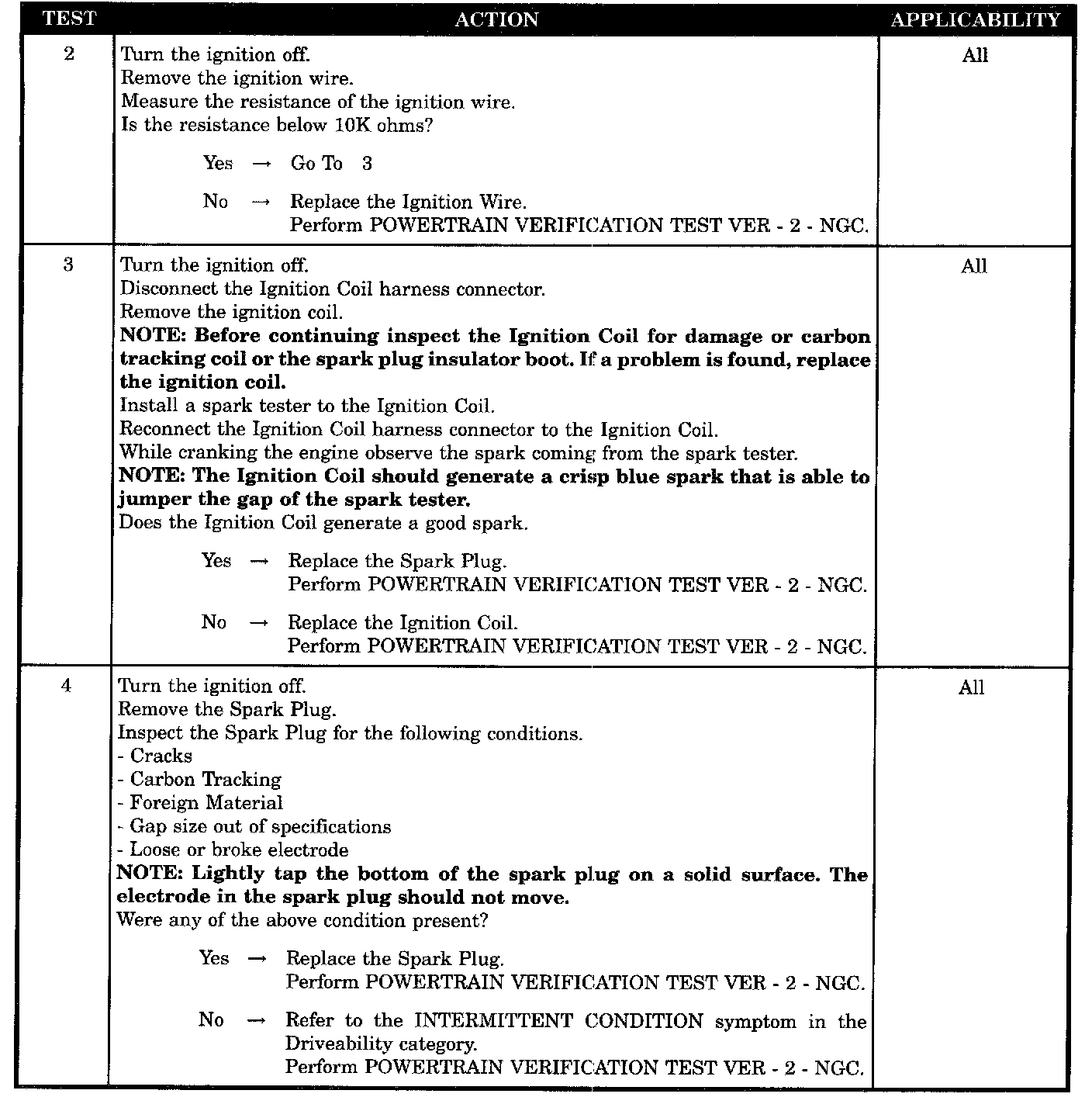

Test 2 - 4:

SYMPTOM
P23O2-IGNITION COIL # 1 SECONDARY CIRCUIT-INSUFFICIENT IONIZATION

WHEN MONITORED
Engine Running.

SET CONDITION
If PCM detects that the secondary ignition burn time is incorrect or not present an error is detected. One Trip Fault.

POSSIBLE CAUSES
- Intermittent condition
- Spark plug
- Ignition wire
- Ignition coil operation
- Ignition coil
