P0884

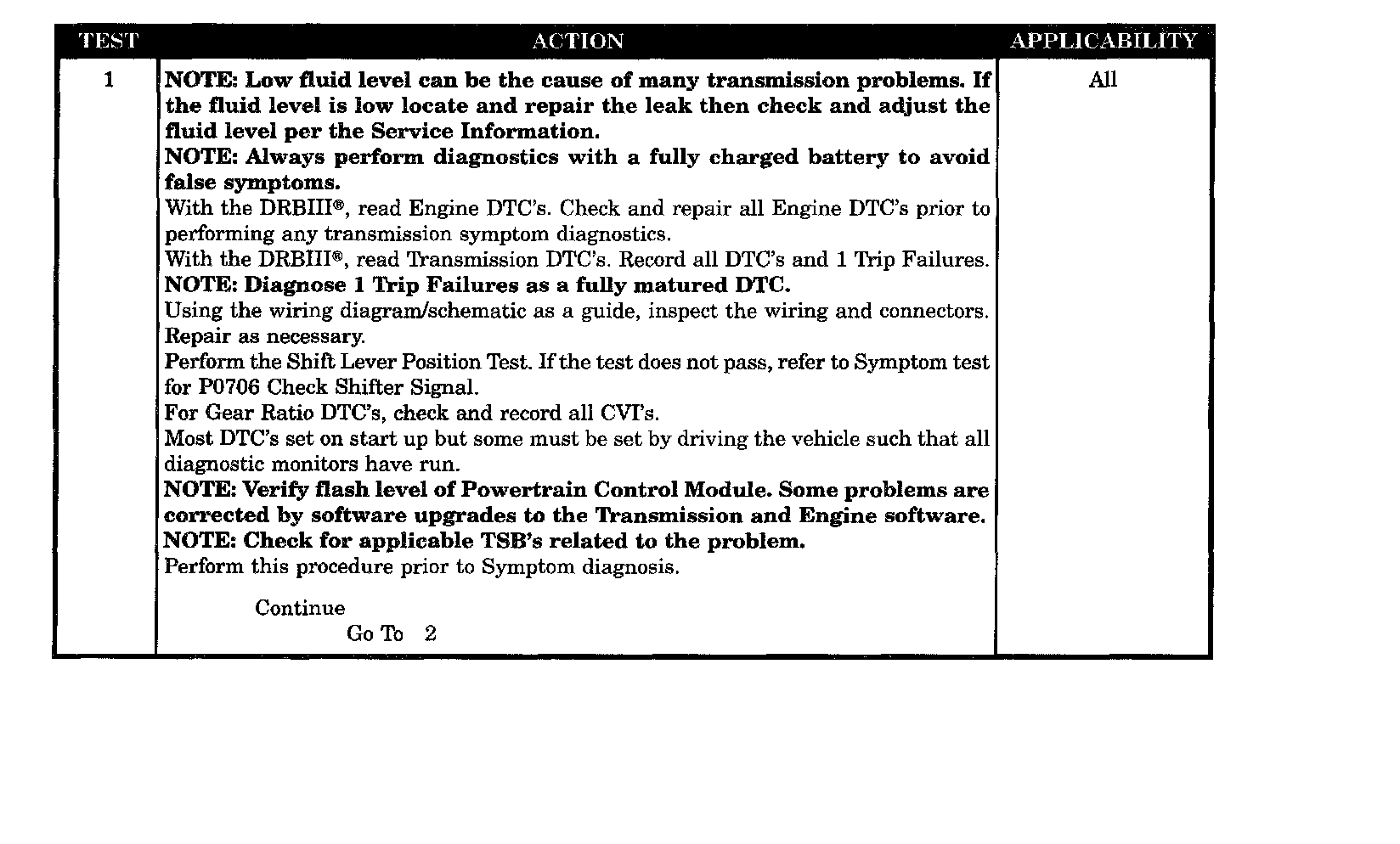

Test 1:

Test 2:

SYMPTOM
P0884-POWER UP AT SPEED

WHEN MONITORED
When the Transmission Control Module initially powers up. Note: the Transmission Control Module is integrated with Powertrain Control Module. The Transmission Control Module has separate powers and grounds specifically to its portion of the PCM.

SET CONDITION
This DTC will set if the TCM powers up and senses the vehicle in a valid forward gear (no PRNDL DTCs) with a output speed above 800 RPM (approximately 32Km/h or 20 MPH).

POSSIBLE CAUSES
- P0884 POWER UP AT SPEED
