P0765

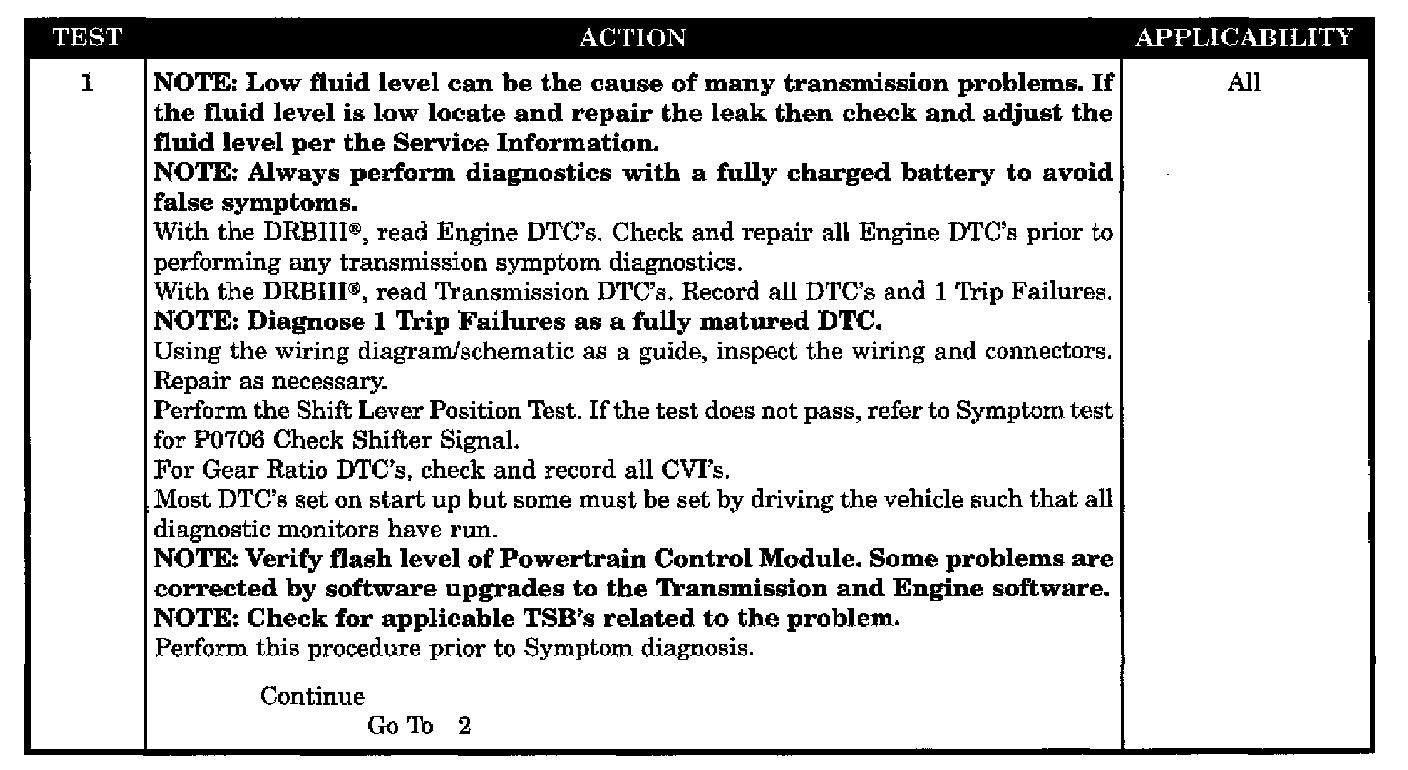

Test 1:

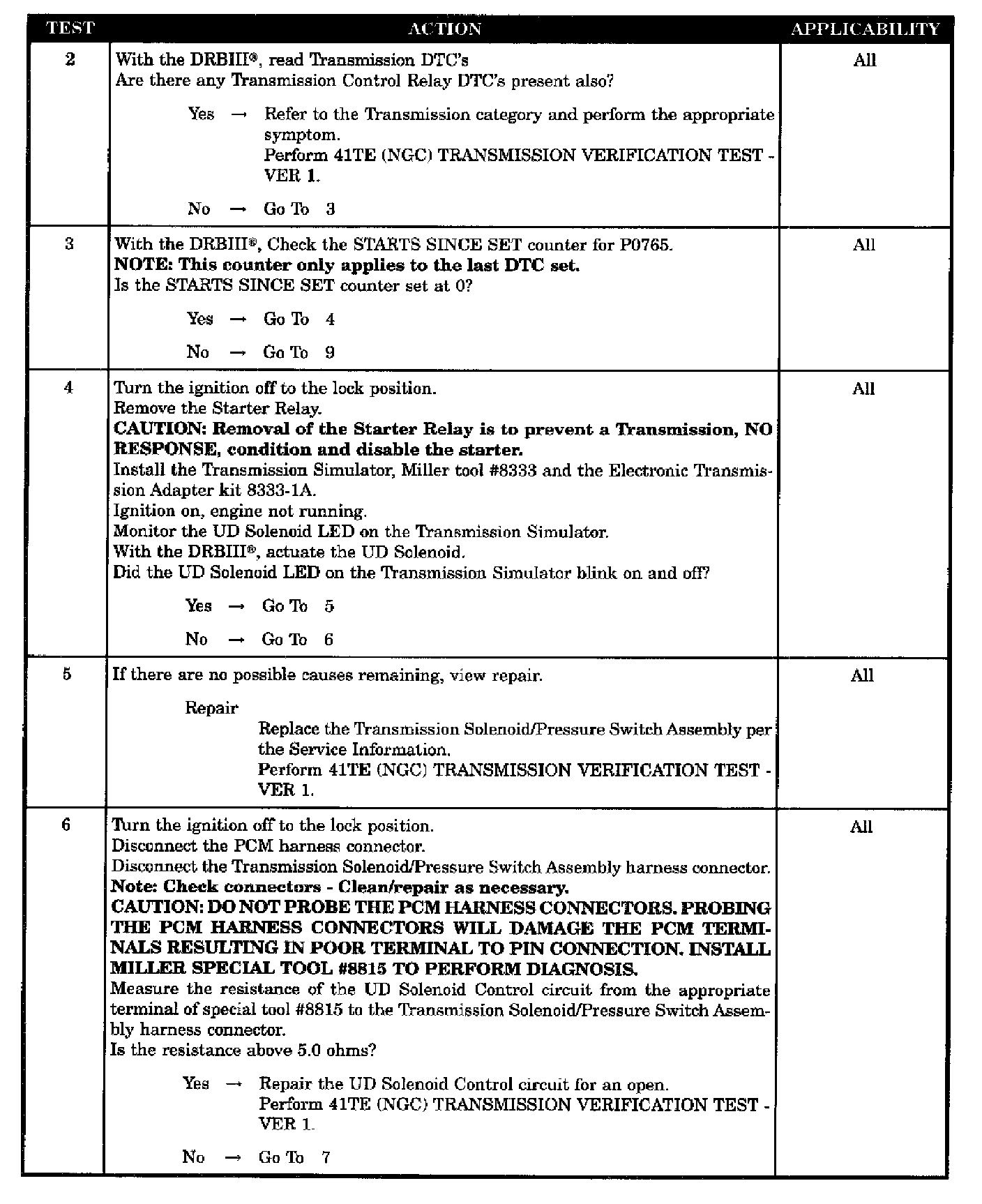

Test 2-6:

Test 7-9:

SYMPTOM
P0765-UD SOLENOID CIRCUIT

WHEN MONITORED
Initially at power-up, then every 10 seconds thereafter. They will also be tested immediately after a gear ratio or pressure switch error is detected.

SET CONDITION
Three consecutive solenoid continuity test failures, or one failure if test is run in response to a gear ratio or pressure switch error.

POSSIBLE CAUSES
- RELATED RELAY DTC'S PRESENT
- UD SOLENOID CONTROL CIRCUIT OPEN
- UD SOLENOID CONTROL CIRCUIT SHORT TO GROUND
- UD SOLENOID CONTROL CIRCUIT SHORT TO VOLTAGE
- UD SOLENOID
- INTERMITTENT WIRING AND CONNECTORS
