P0725

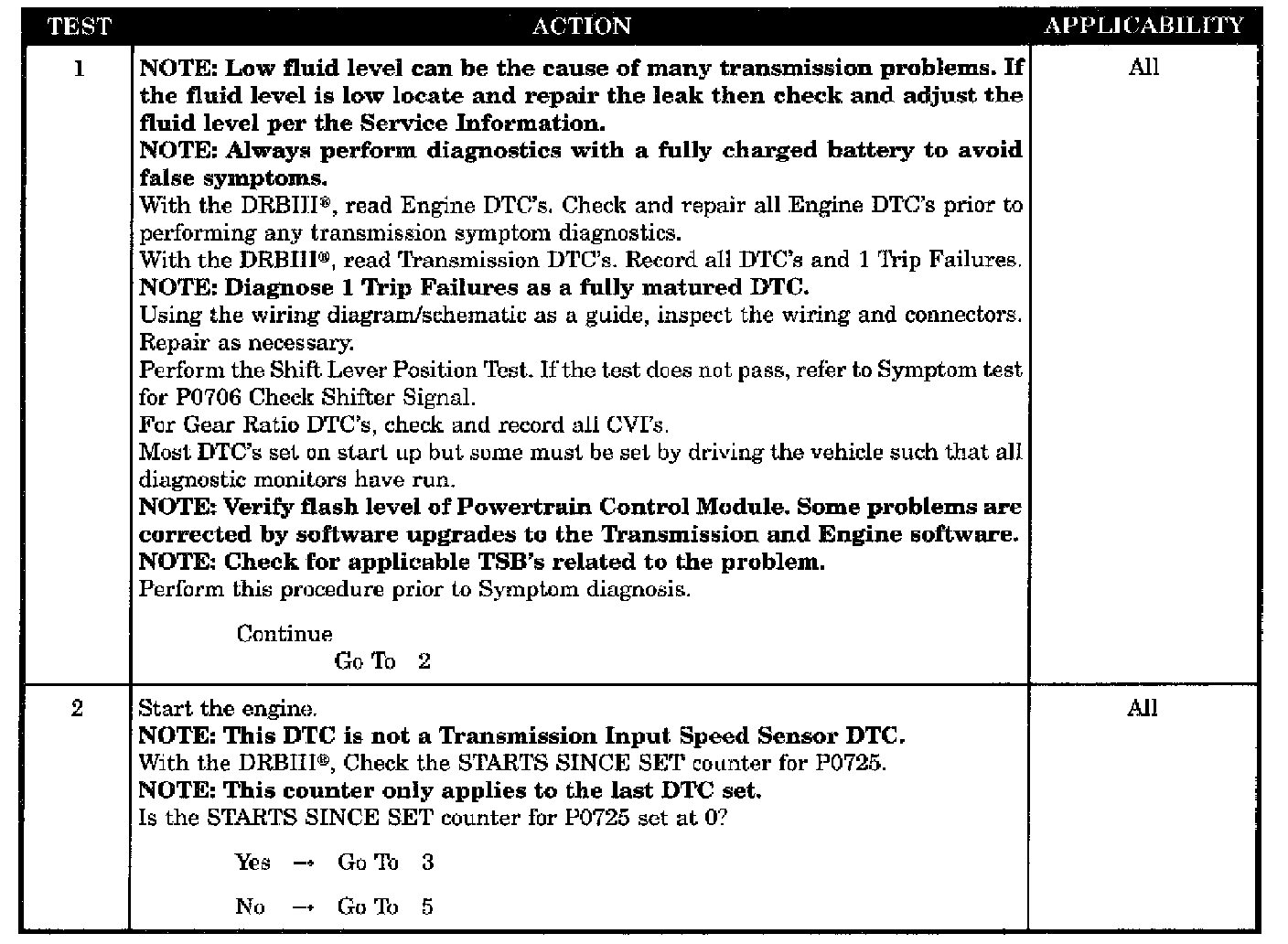

Test 1-2:

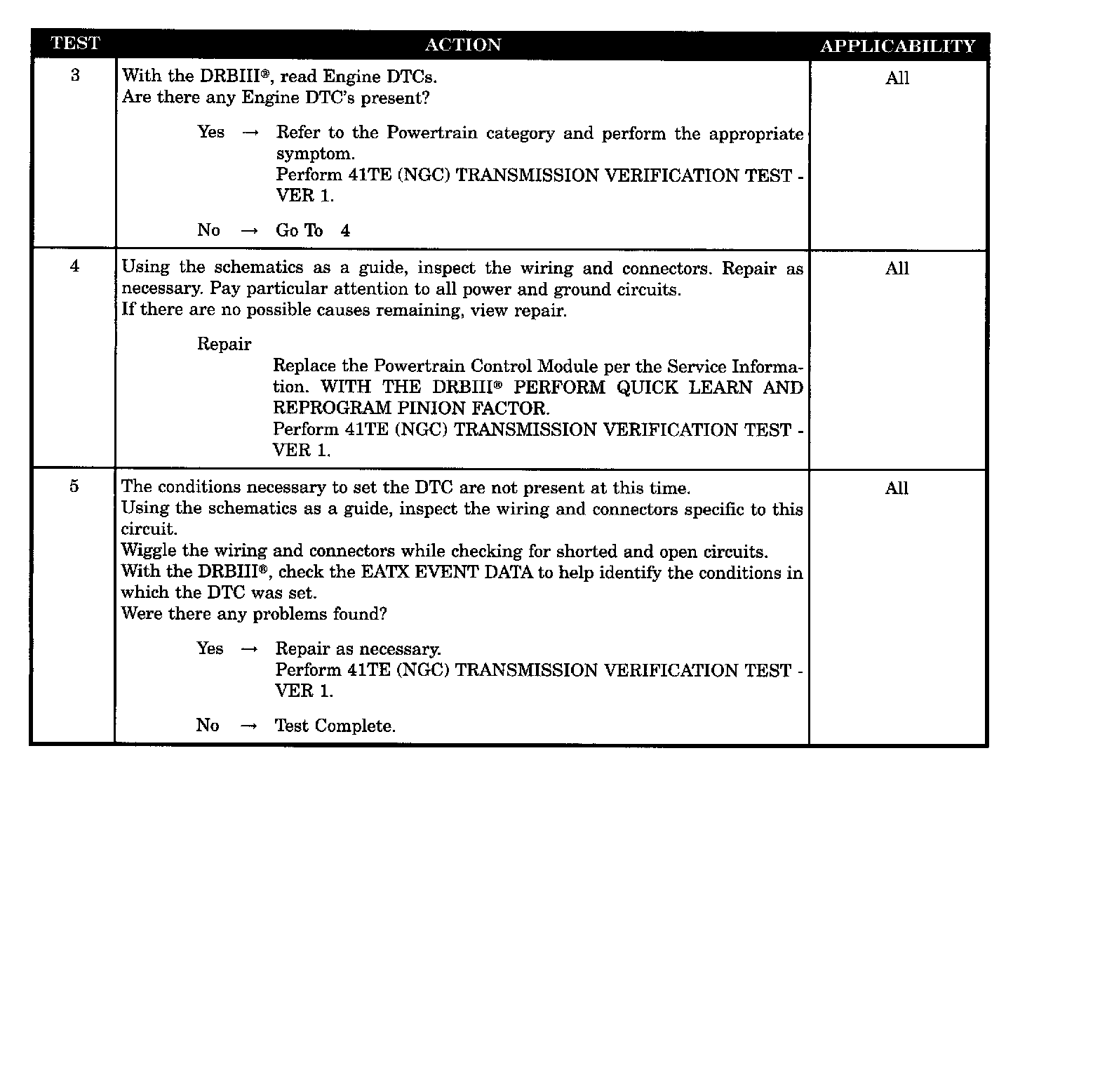

Test 3-5:

SYMPTOM
P0725-ENGINE SPEED SENSOR CIRCUIT

WHEN MONITORED
Whenever the engine is running.

SET CONDITION
The Engine RPM is less than 390 or greater than 8000 for more than 2 seconds while the engine is running.

POSSIBLE CAUSES
- ENGINE DTCS PRESENT
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
