P0714

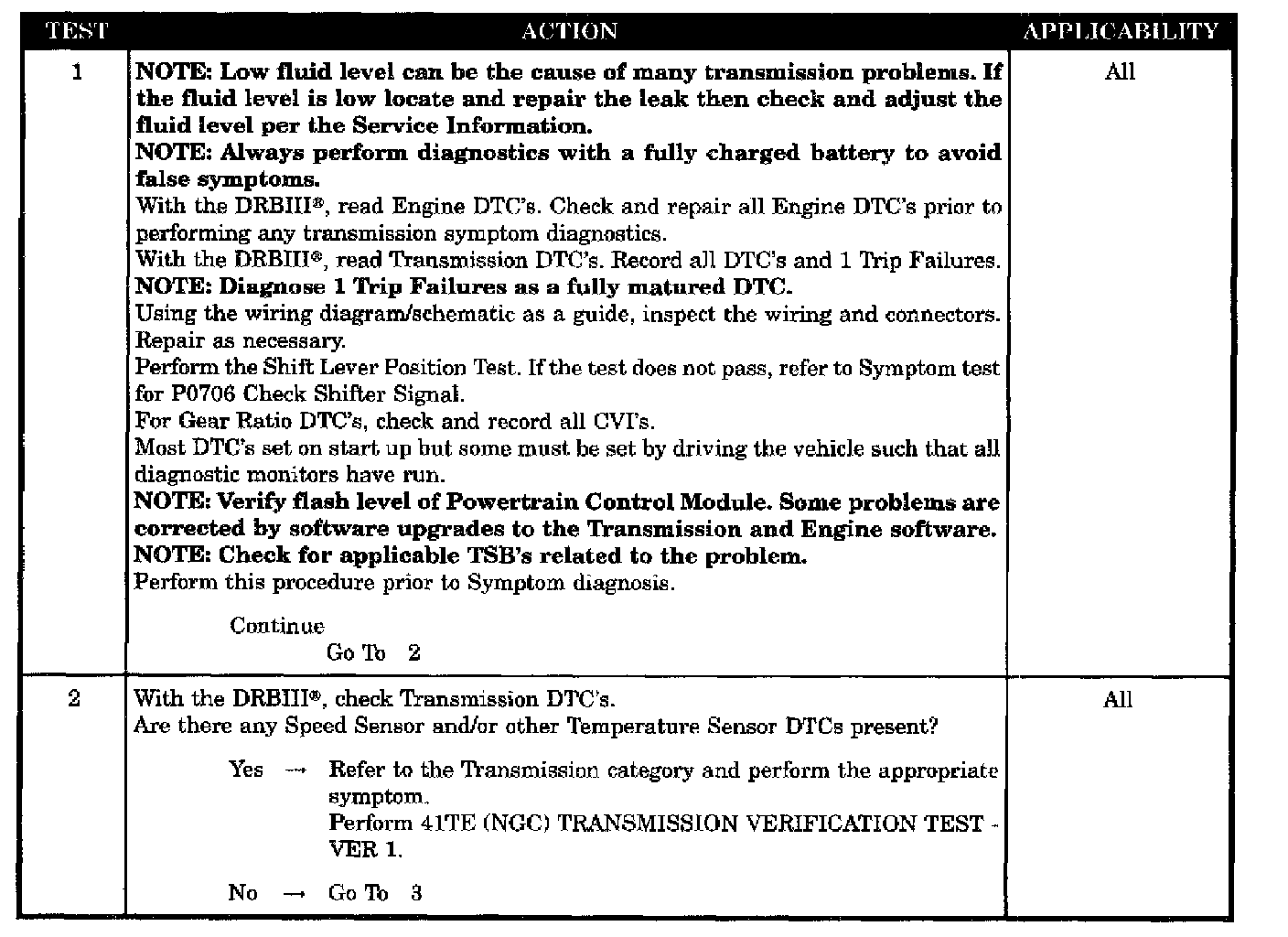

Test 1-2:

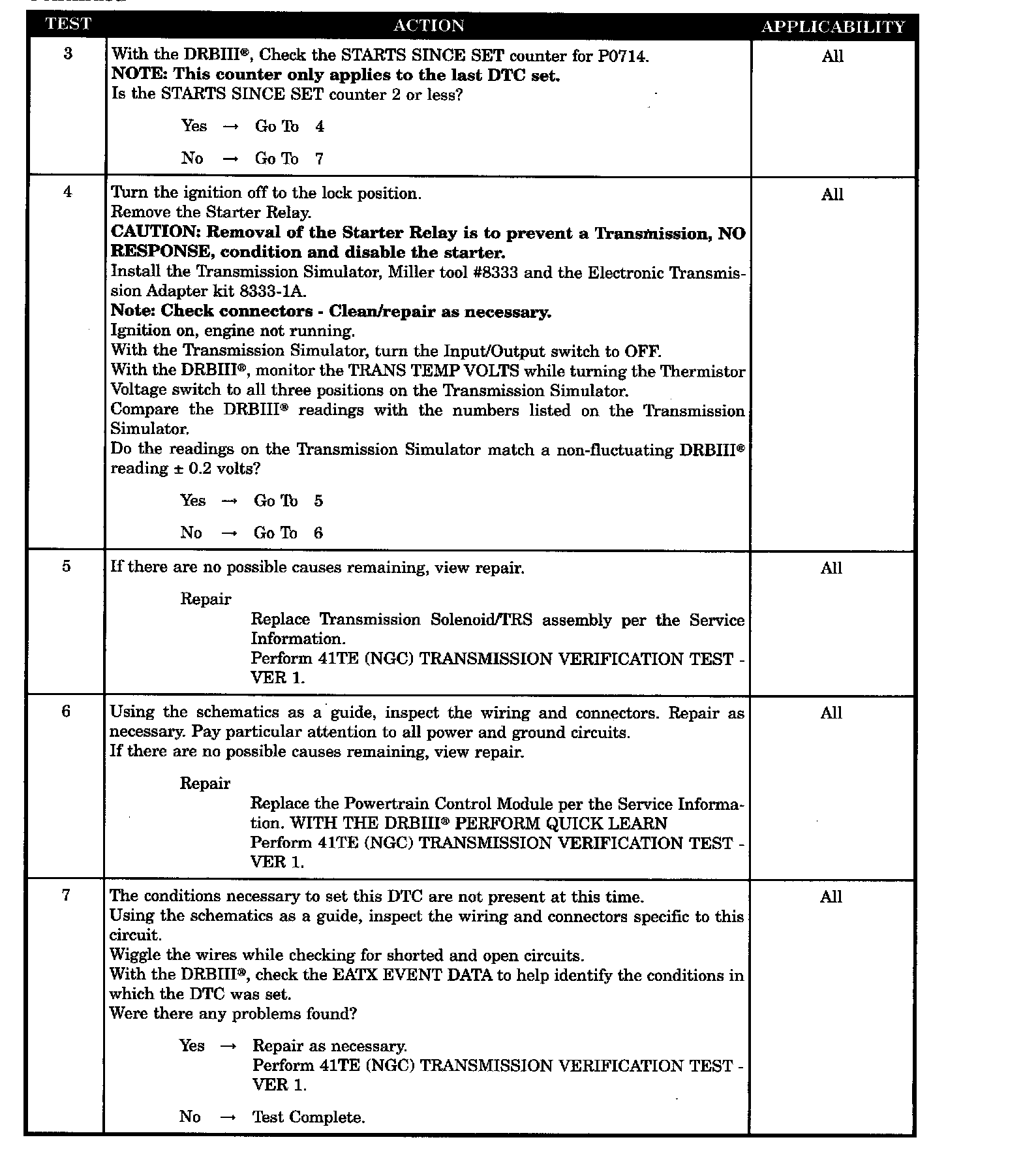

Test 3-7:

SYMPTOM
P0714-TRANSMISSION TEMPERATURE SENSOR INTERMITTENT

WHEN MONITORED
Continuously with the ignition on and engine running.

SET CONDITION
The DTC will set when the monitored Temperature Sensor voltage fluctuates or changes abruptly within a predetermined period of time.

POSSIBLE CAUSES
- RELATED DTC'S PRESENT
- TRANSMISSION TEMPERATURE SENSOR
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
