P0218

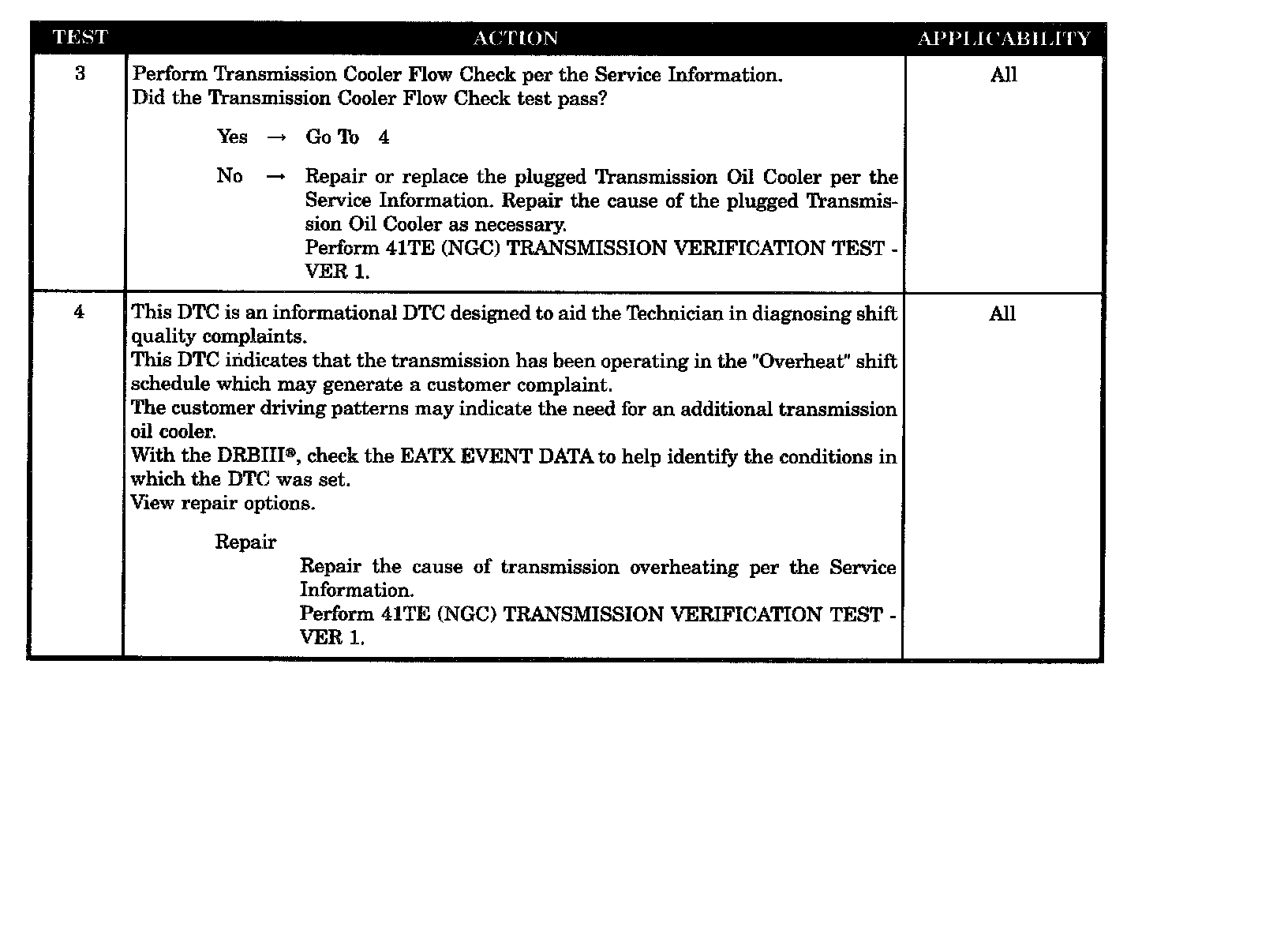

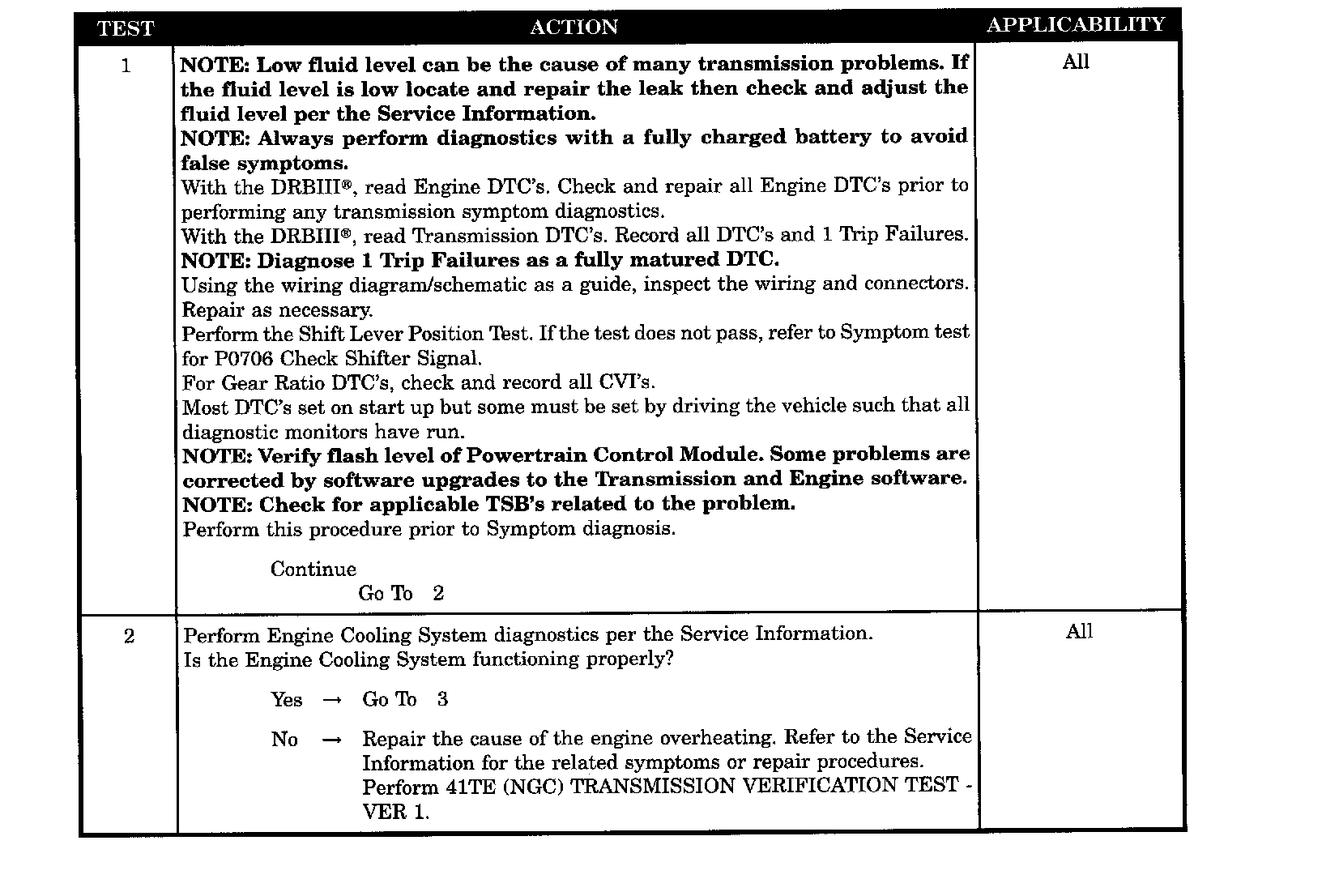

Test 1-2:

Test 3-4:

SYMPTOM
P0218-HIGH TEMPERATURE OPERATION ACTIVATED

WHEN MONITORED
Whenever the engine is running. NOTE: This is an informational DTC designed to aid the technician in diagnosing shift quality complaints.

SET CONDITION
Immediately when a Overheat shift schedule is activated when the Transmission Oil Temperature reaches 155 °C or 240 °F.

POSSIBLE CAUSES
- TRANSMISSION OIL COOLER PLUGGED
- HIGH TEMPERATURE OPERATIONS ACTIVATED
