P0124

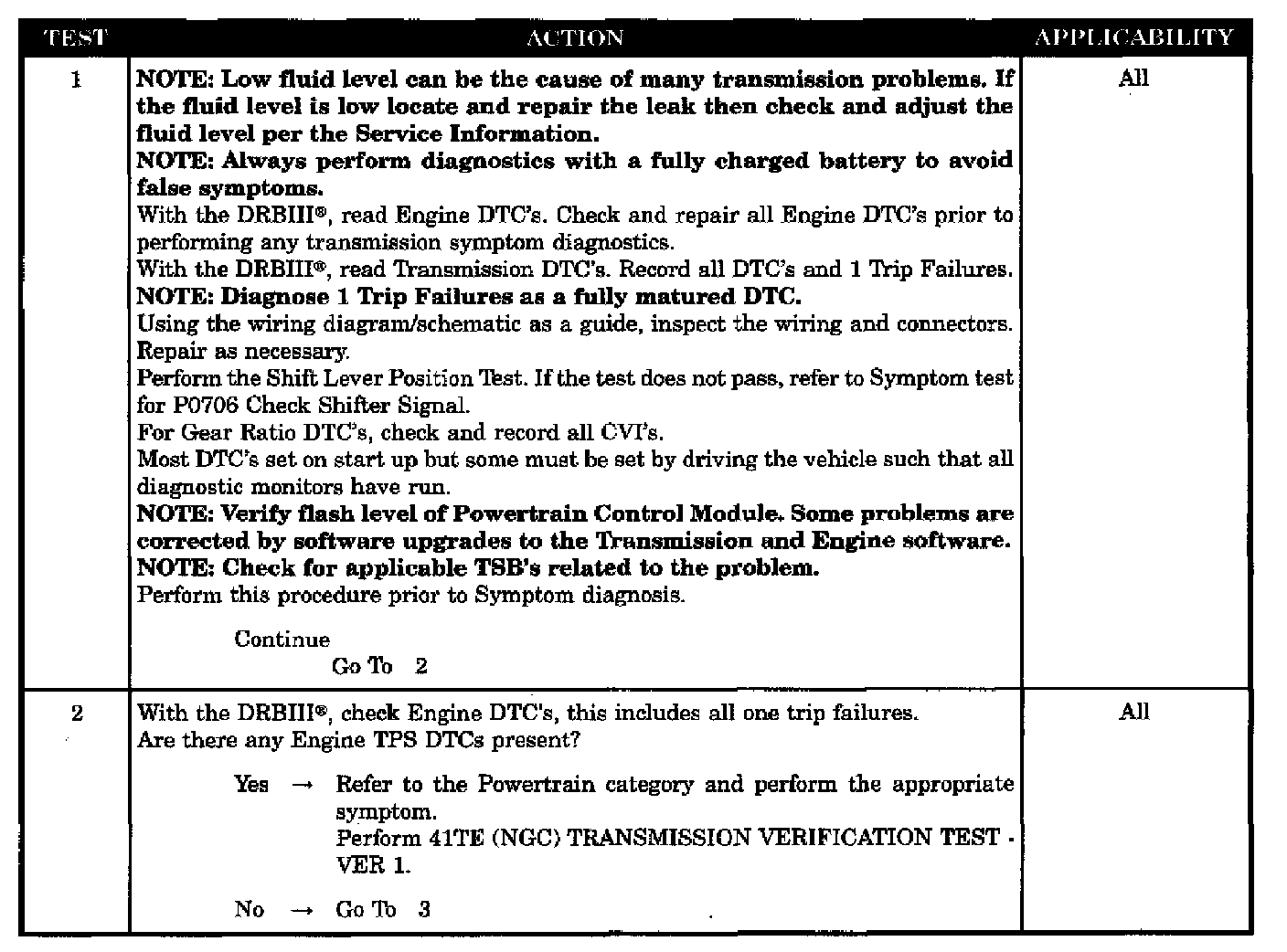

Test 1-2:

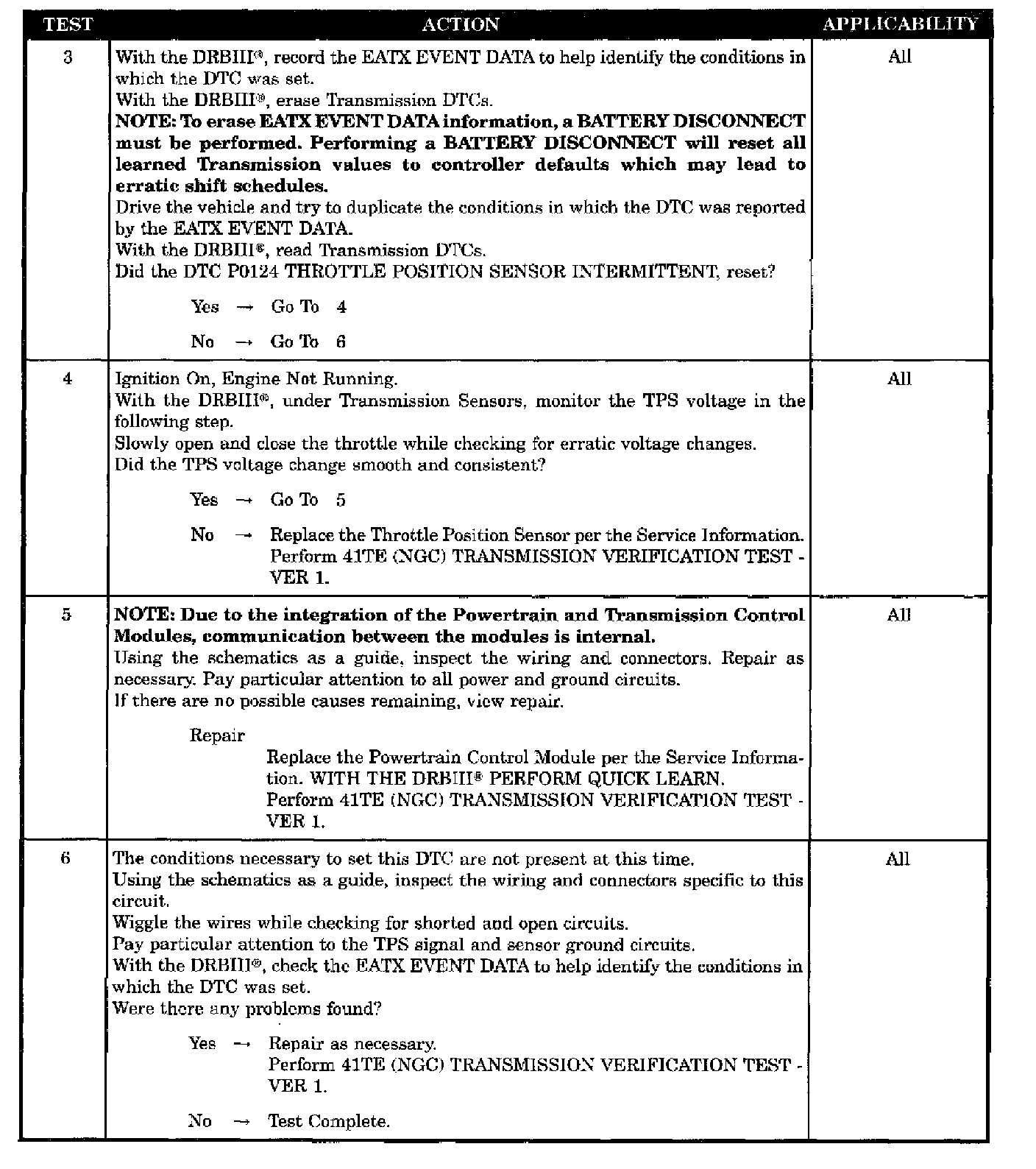

Test 3-6:

SYMPTOM
P0124-THROTTLE POSITION SENSOR/APPS INTERMITTENT

WHEN MONITORED
Continuously with the ignition on and engine running.

SET CONDITION
This DTC will set if the monitored TPS throttle angle between the angles of 6° and 120° and the degree change is greater than 6° within a period of less than 7.0 ms.

POSSIBLE CAUSES
- RELATED TPS ENGINE DTC'S PRESENT
- THROTTLE POSITION SENSOR
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
