Transmission Code

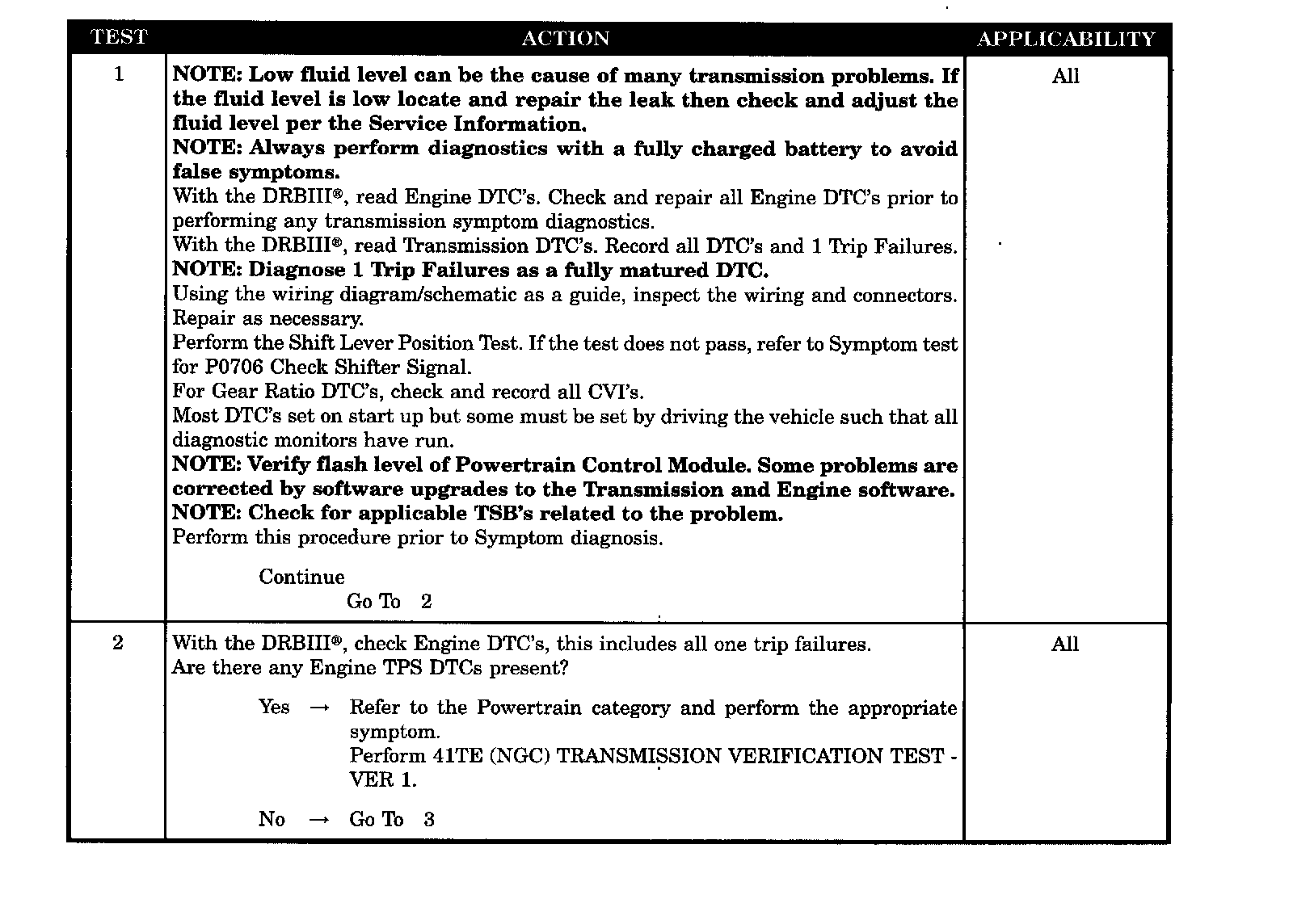

Test 1-2:

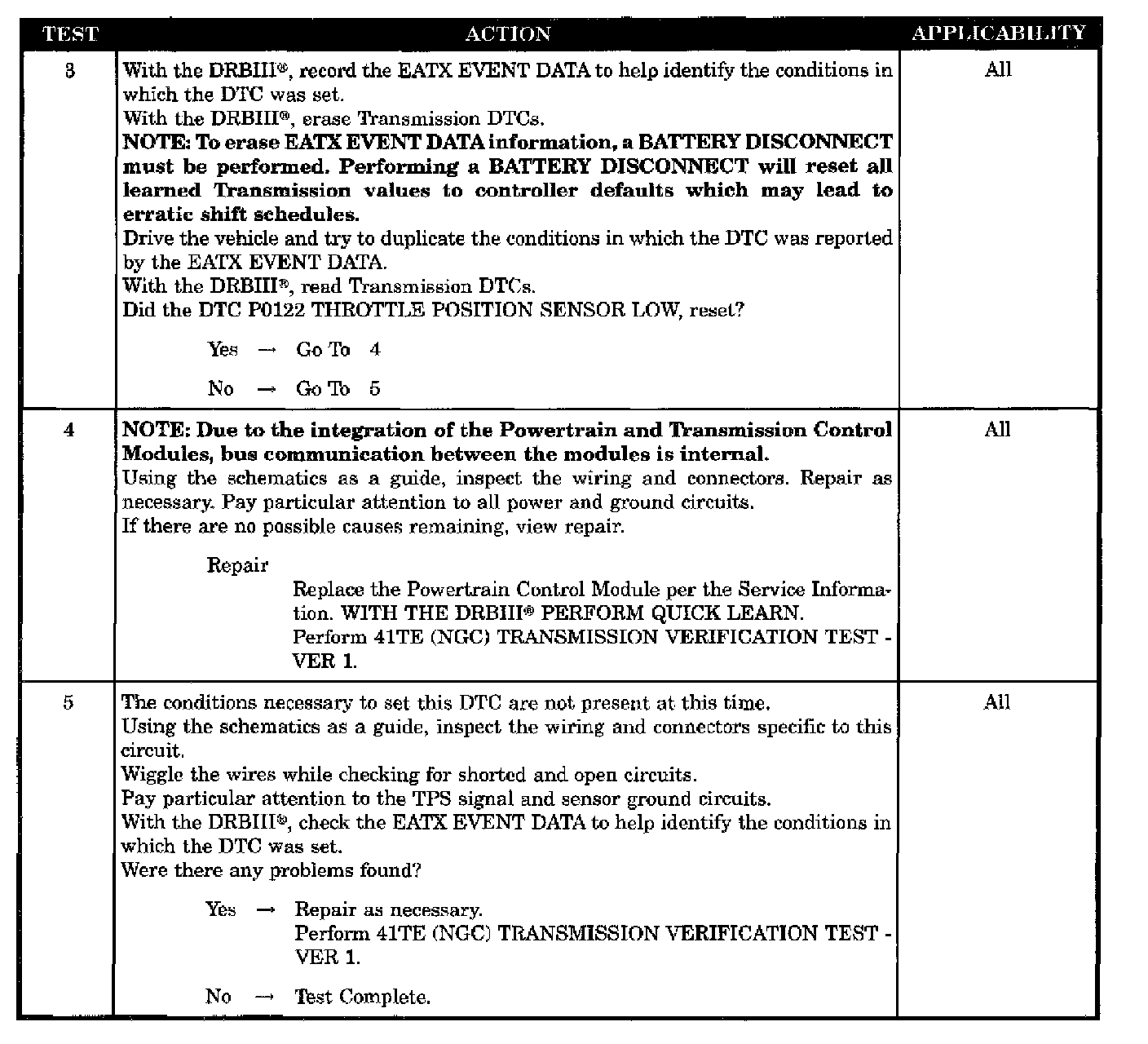

Test 3-5:

SYMPTOM
P0122-THROTTLE POSITION SENSOR/APPS LOW

WHEN MONITORED
Continuously with the ignition on and engine running.

SET CONDITION
This DTC will set if the monitored TPS voltage drops below 0.078 volts for the period of 0.48 seconds.

POSSIBLE CAUSES
- RELATED TPS ENGINE DTC'S PRESENT
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
