Sensor Circuit Failure

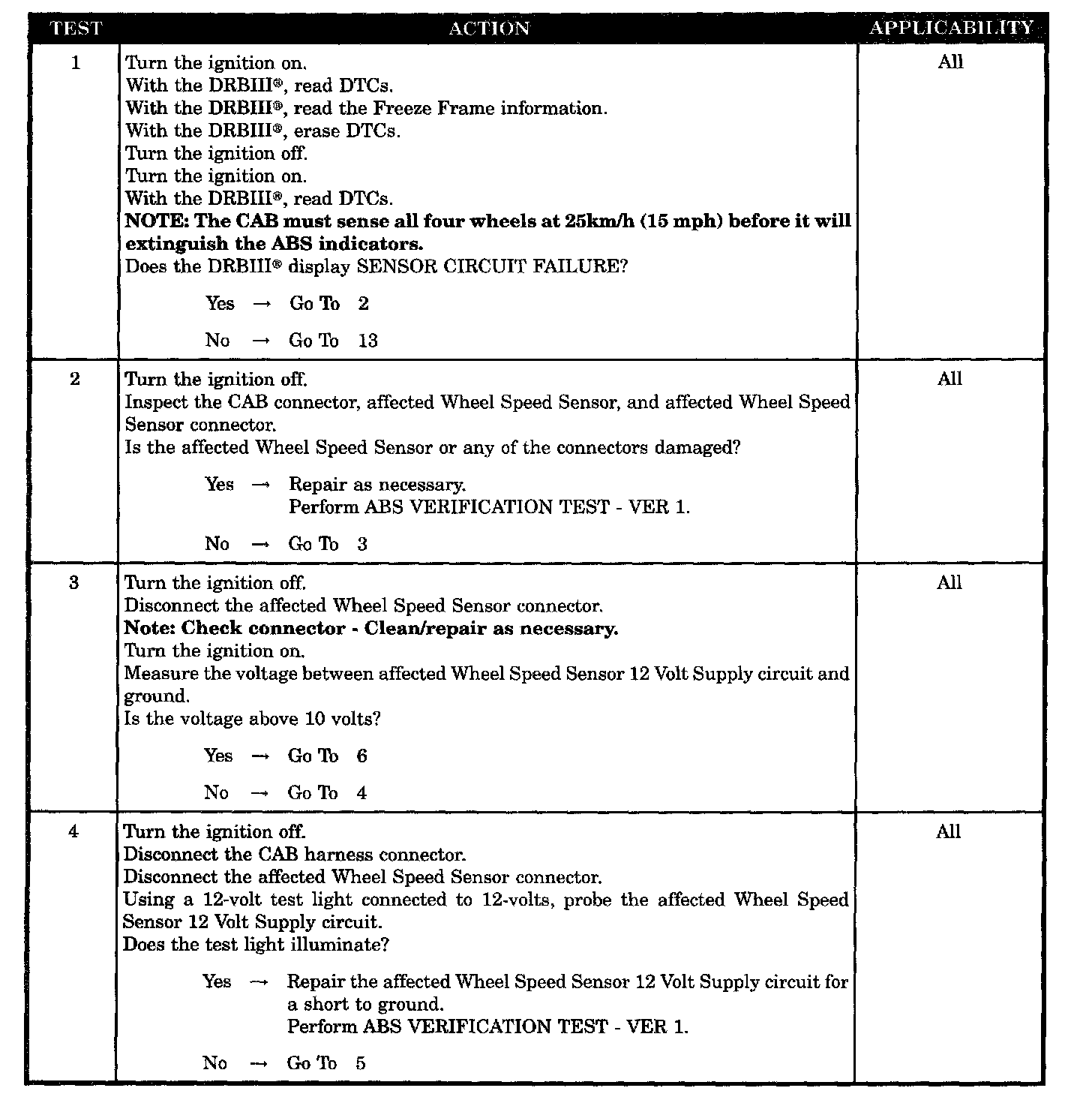

Test 1-4:

Test 5-8:

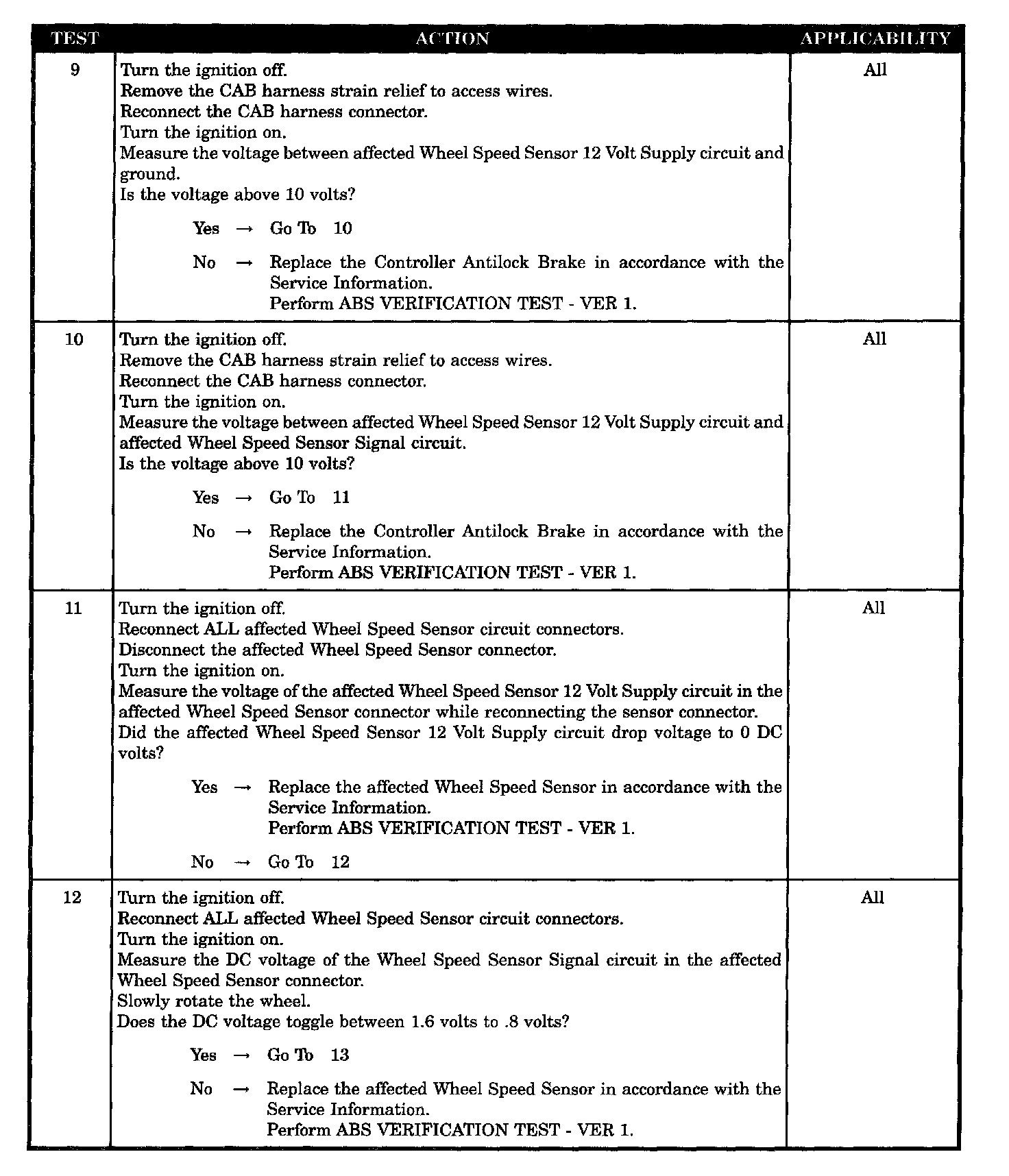

Test 9-12:

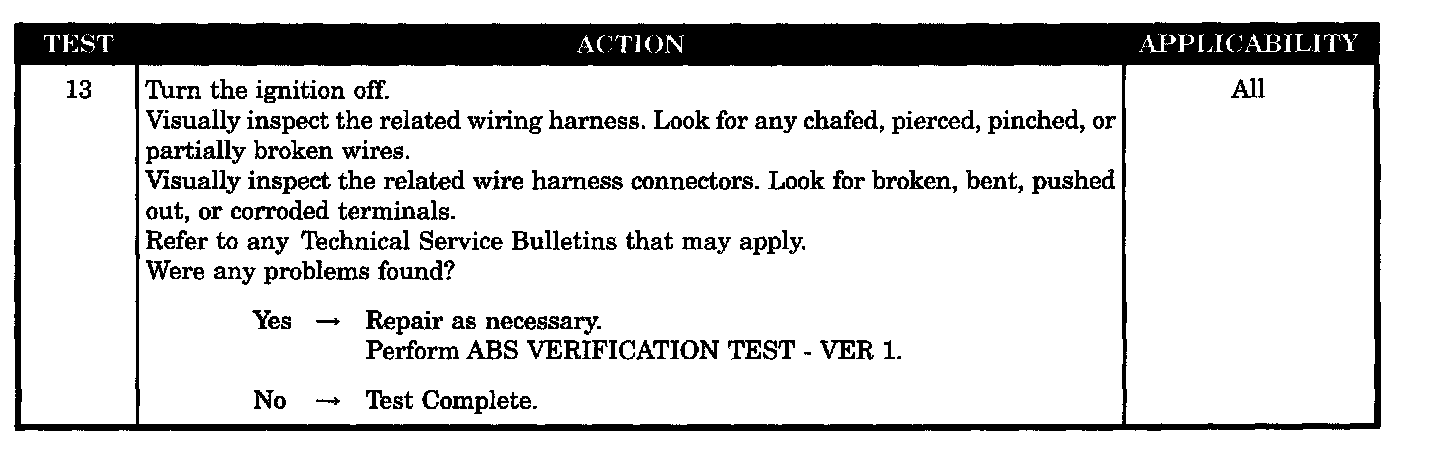

Test 13:

Symptom List
LEFT FRONT SENSOR CIRCUIT FAILURE
LEFT REAR SENSOR CIRCUIT FAILURE
RIGHT FRONT SENSOR CIRCUIT FAILURE
RIGHT REAR SENSOR CIRCUIT FAILURE

Test Note: All symptoms listed above are diagnosed using the sane tests.The title for the tests will be LEFT FRONT SENSOR CIRCUIT FAILURE.

LEFT FRONT SENSOR CIRCUIT FAILURE

When Monitored
Ignition on. The CAB monitors the wheel speed circuit continuously.

Set Condition
If the CAB detects an open or shorted wheel speed sensor circuit, the Diagnostic Trouble Code (DTC) will set.

LEFT REAR SENSOR CIRCUIT FAILURE

When Monitored
Ignition on. The CAB monitors the wheel speed circuit continuously.

Set Condition
If the CAB detects an open or shorted wheel speed sensor circuit, the Diagnostic Trouble Code (DTC) will set.

RIGHT FRONT SENSOR CIRCUIT FAILURE

When Monitored
Ignition on. The CAB monitors the wheel speed circuit continuously.

Set Condition
If the CAB detects an open or shorted wheel speed sensor circuit, the Diagnostic Trouble Code (DTC) will set.

RIGHT REAR SENSOR CIRCUIT FAILURE

When Monitored
Ignition on. The CAB monitors the wheel speed circuit continuously.

Set Condition
If the CAB detects an open or shorted wheel speed sensor circuit, the Diagnostic Trouble Code (DTC) will set.

POSSIBLE CAUSES
- INTERMITTENT CONDITION
- WHEEL SPEED SENSOR OR CONNECTOR DAMAGE
- WHEEL SPEED SENSOR SIGNAL CIRCUIT FAULT
- WHEEL SPEED SENSOR 12 VOLT SUPPLY CIRCUIT SHORT TO GROUND
- WHEEL SPEED SENSOR 12 VOLT SUPPLY CIRCUIT OPEN
- WHEEL SPEED SENSOR SIGNAL CIRCUIT SHORT TO GROUND
- WHEEL SPEED SENSOR SIGNAL CIRCUIT OPEN
- CAB - 12 VOLT SUPPLY CIRCUIT FAULT
- CAB - SIGNAL CIRCUIT FAULT
- WHEEL SPEED SENSOR 12 VOLT SUPPLY SHORT TO GROUND
- WHEEL SPEED SENSOR SIGNAL CIRCUIT INOPERATIVE
