Connector Views

Radiator Fan Motor No. 1 (Except 2.7L Base):

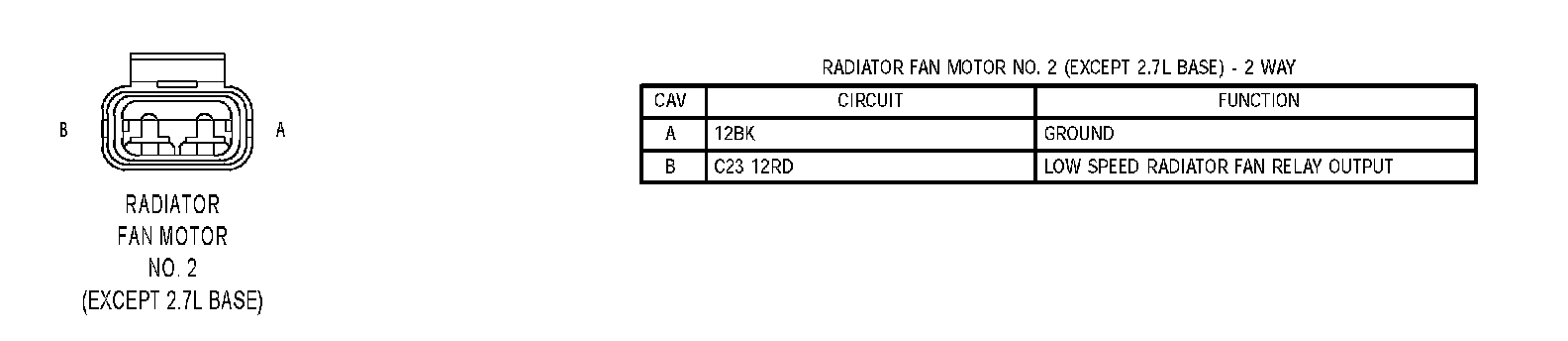

Radiator Fan Motor No. 2 (Except 2.7L Base):
