Procedures

REMOVAL
1. Open hood, disconnect and isolate the negative battery cable remote terminal from the remote battery post.
2. Refer to Body Door - Front, for door trim and water shield Removal.

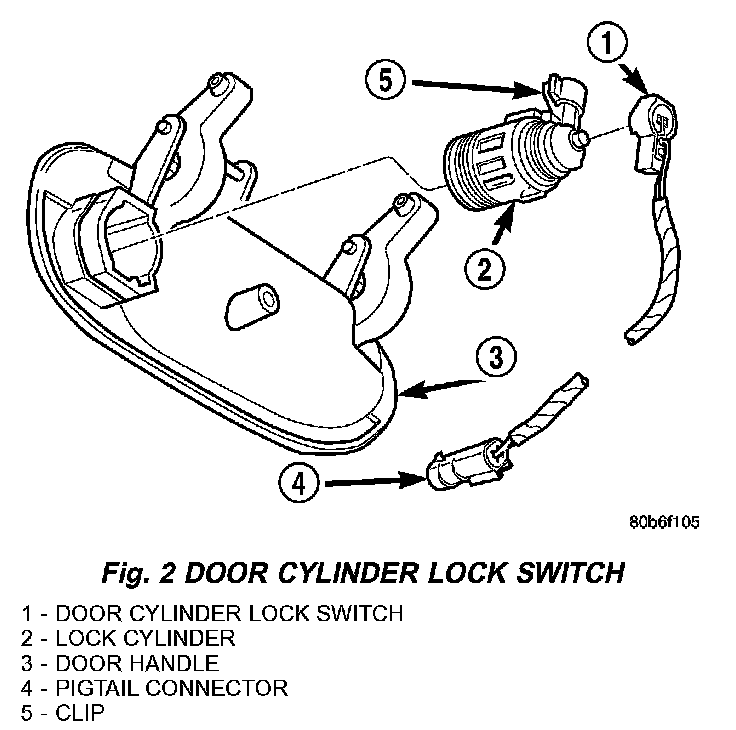

Fig.2 Door Cylinder Lock Switch:

3. Disconnect the wiring clip and pigtail wire connector.
4. Remove the Door Cylinder Lock Switch from door lock cylinder.

INSTALLATION
1. Install the Door Cylinder Lock Switch onto the door lock cylinder.
2. Connect the wiring clip and pigtail wire connector.
3. Refer to Body, Door - Front, for Door Trim and Water Shield Installation.
4. Connect the negative battery cable remote terminal onto the remote battery post.
