Heated Glass Element Relay: Locations

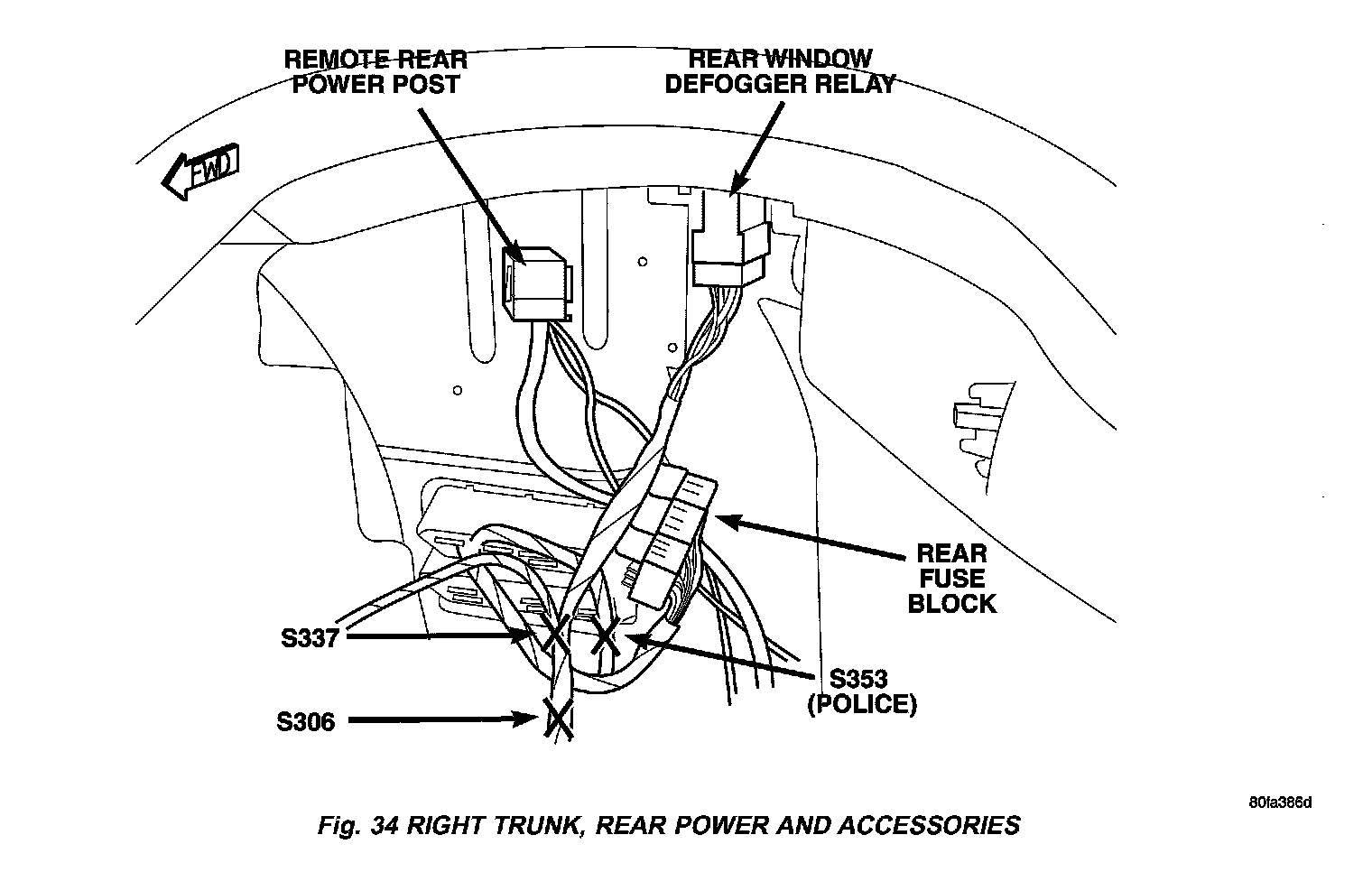

Fig. 34 Right Trunk, Rear Power And Accessories:

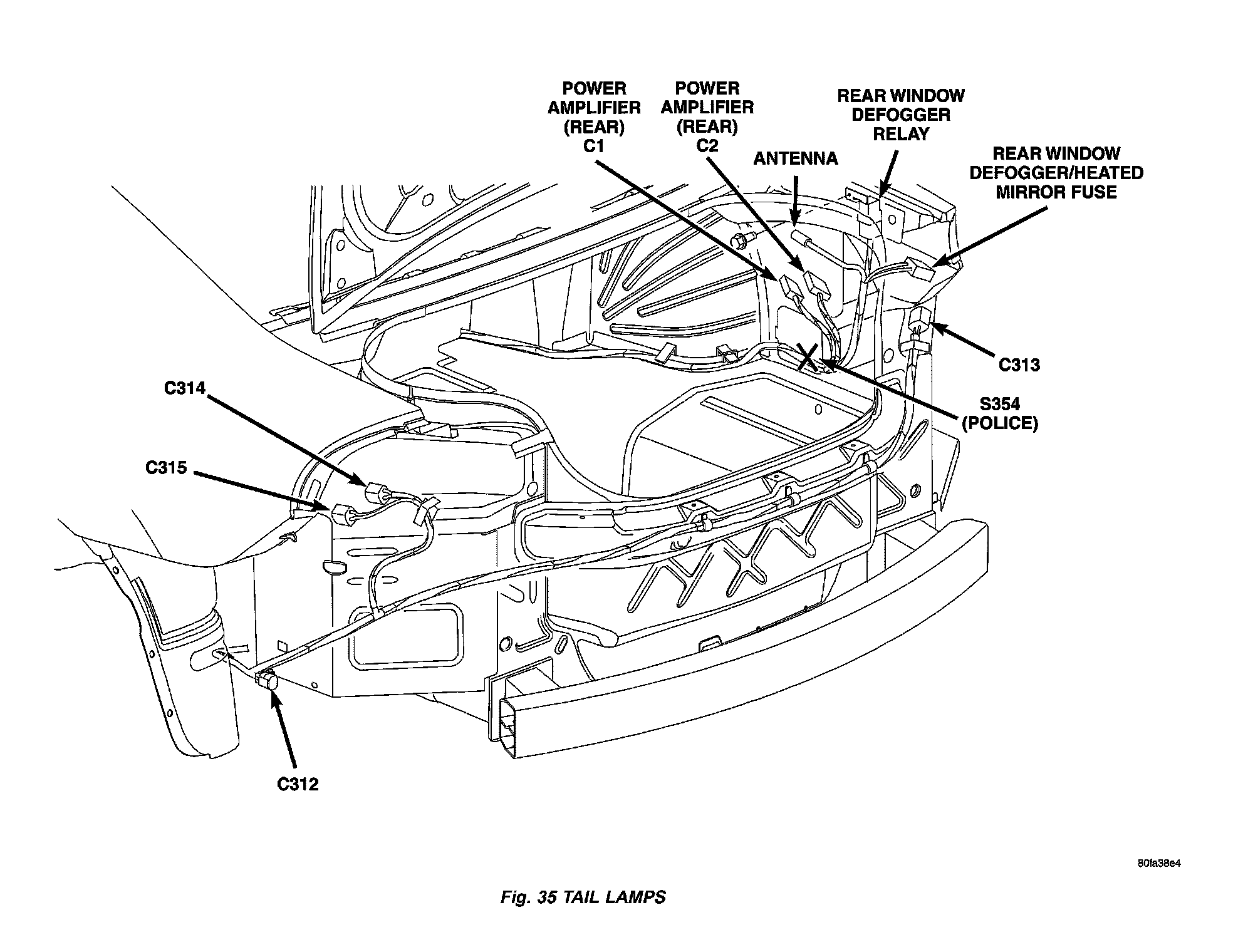

Fig. 35 Tail Lamps:
