Ignition Coil: Diagrams

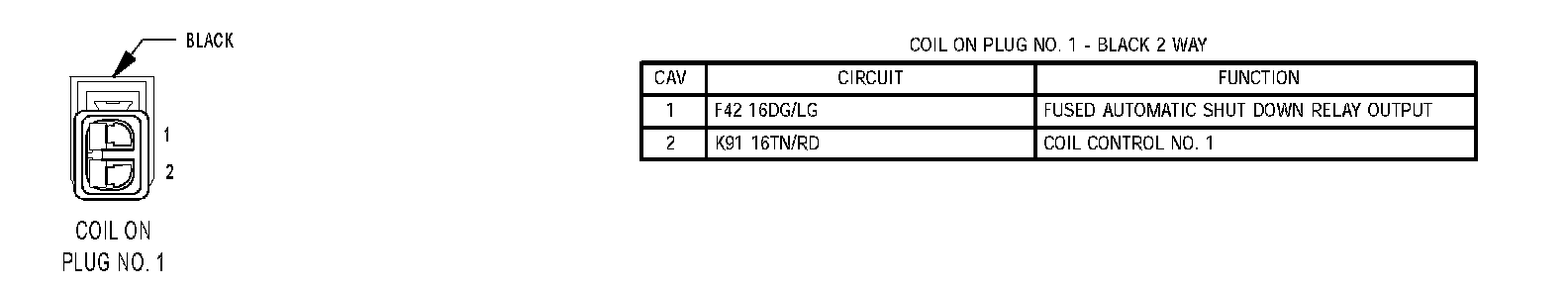

Coil On Plug No. 1:






Coil On Plug No. 2:






Coil On Plug No. 3:






Coil On Plug No. 4:

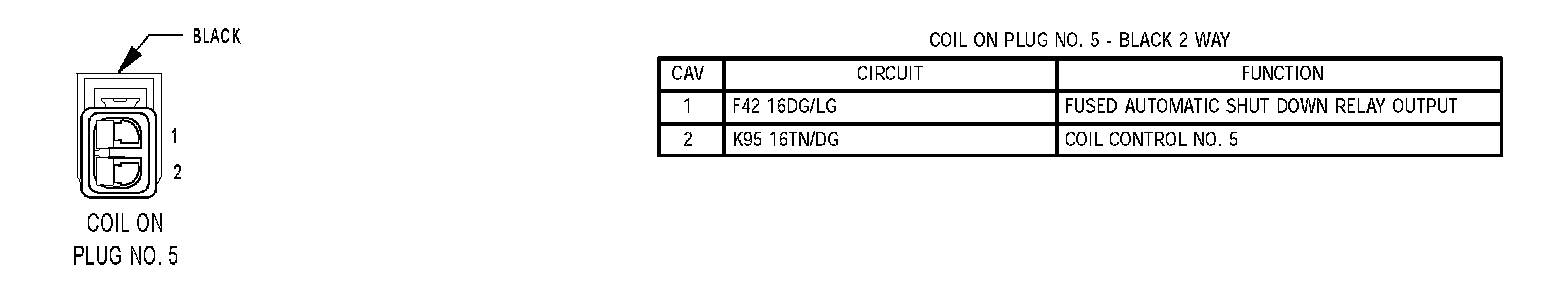

Coil On Plug No. 5:

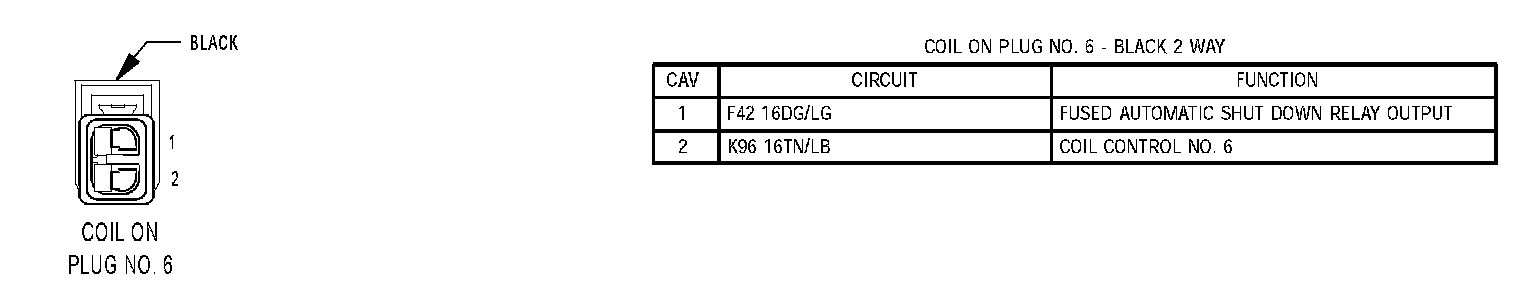

Coil On Plug No. 6:
