Headlamp Unit Replacement

REMOVAL

1. Release hood latch and open hood.
2. Disconnect and isolate the battery negative cable.

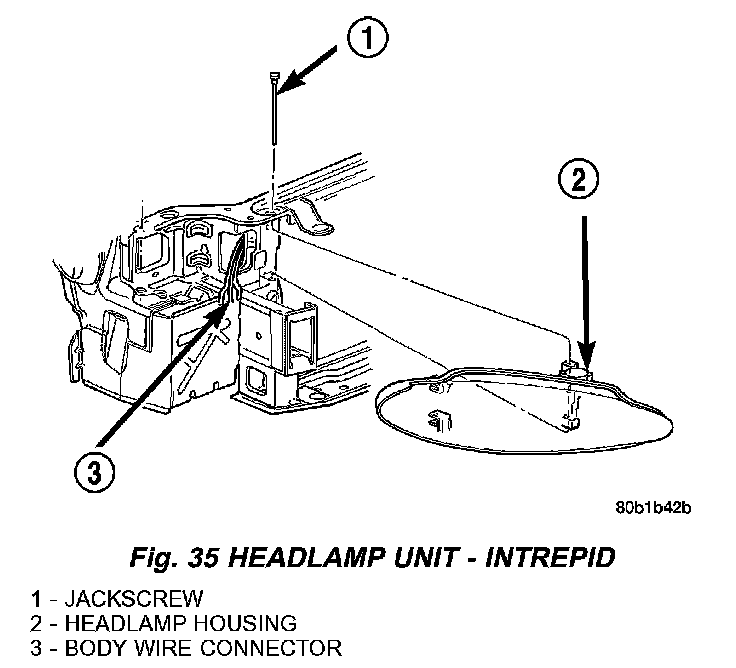

Fig.35 Headlamp Unit - Intrepid:

3. Remove jackscrews attaching headlamp to body (Fig. 35).
4. Remove headlamp from body.
5. Disconnect wire connector from headlamp and parking, side marker, and turn signal lamps.
6. Remove headlamp housing from vehicle.


INSTALLATION

NOTE: Headlamp lens fogging is a normal condition and does not require service unless excessive or continual. Moisture will vent from tubes or vents located on the back of the lamp.

1. Place headlamp unit in position on vehicle.
2. Connect wire connectors to headlamp, parking, side marker, and turn signal lamps.
3. Place headlamp unit in position on body.
4. Install screws to attach headlamp unit to body.
5. Connect the battery negative remote cable and close hood
6. Verify headlamp operation and alignment.
