System Schematics

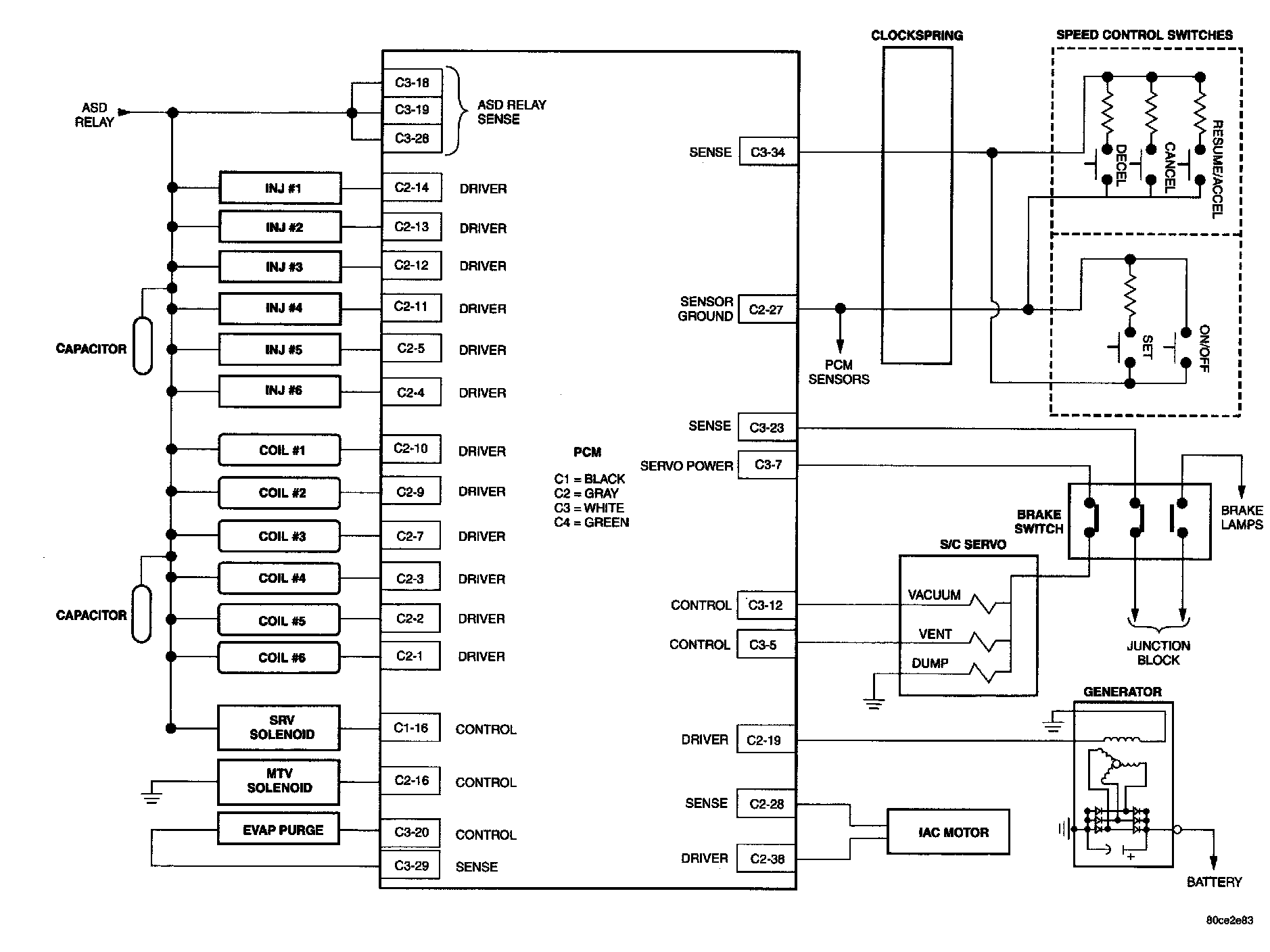

2002/2003 LH 2.7L And 3.5L:

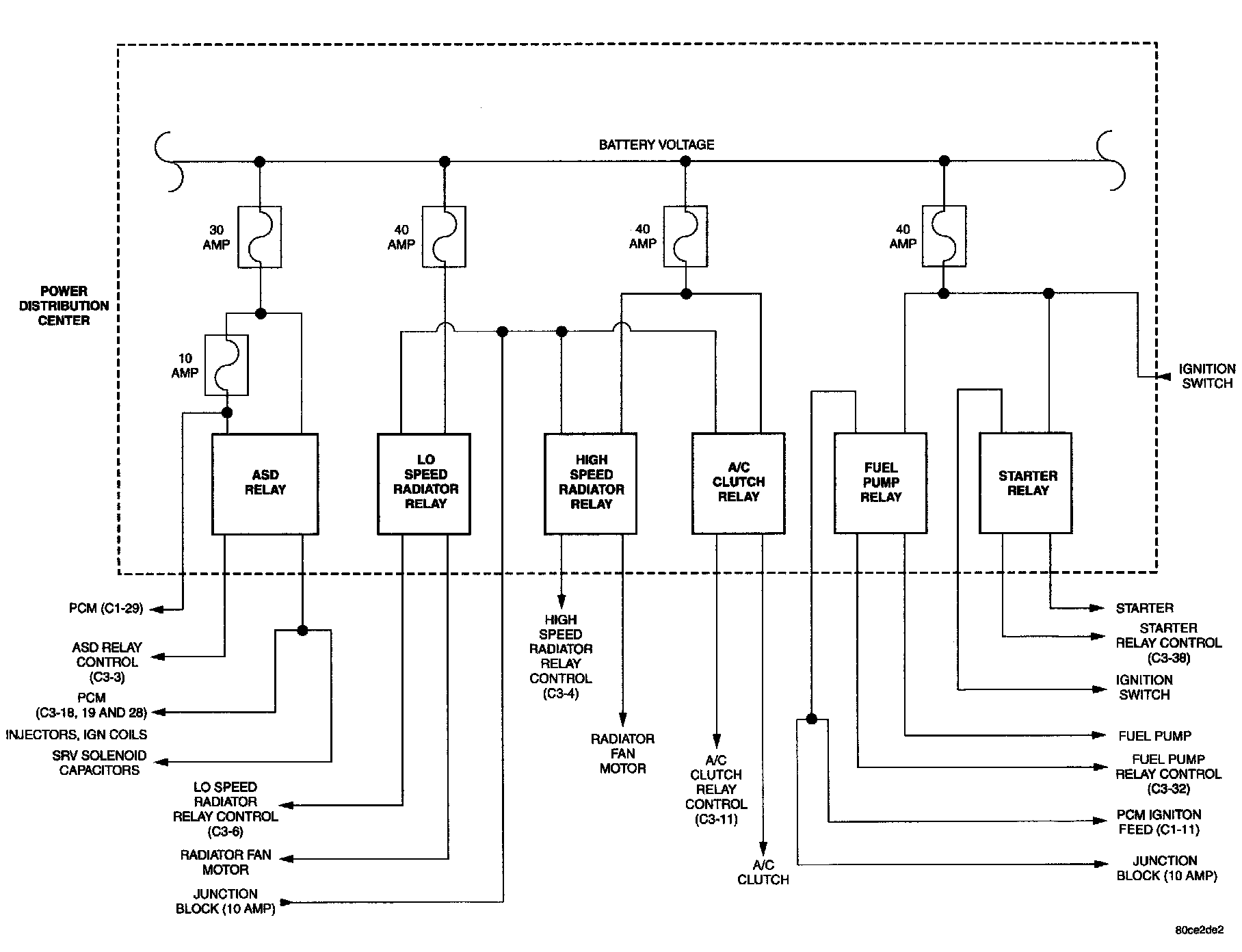

2002/2003 LH 2.7L And 3.5L:

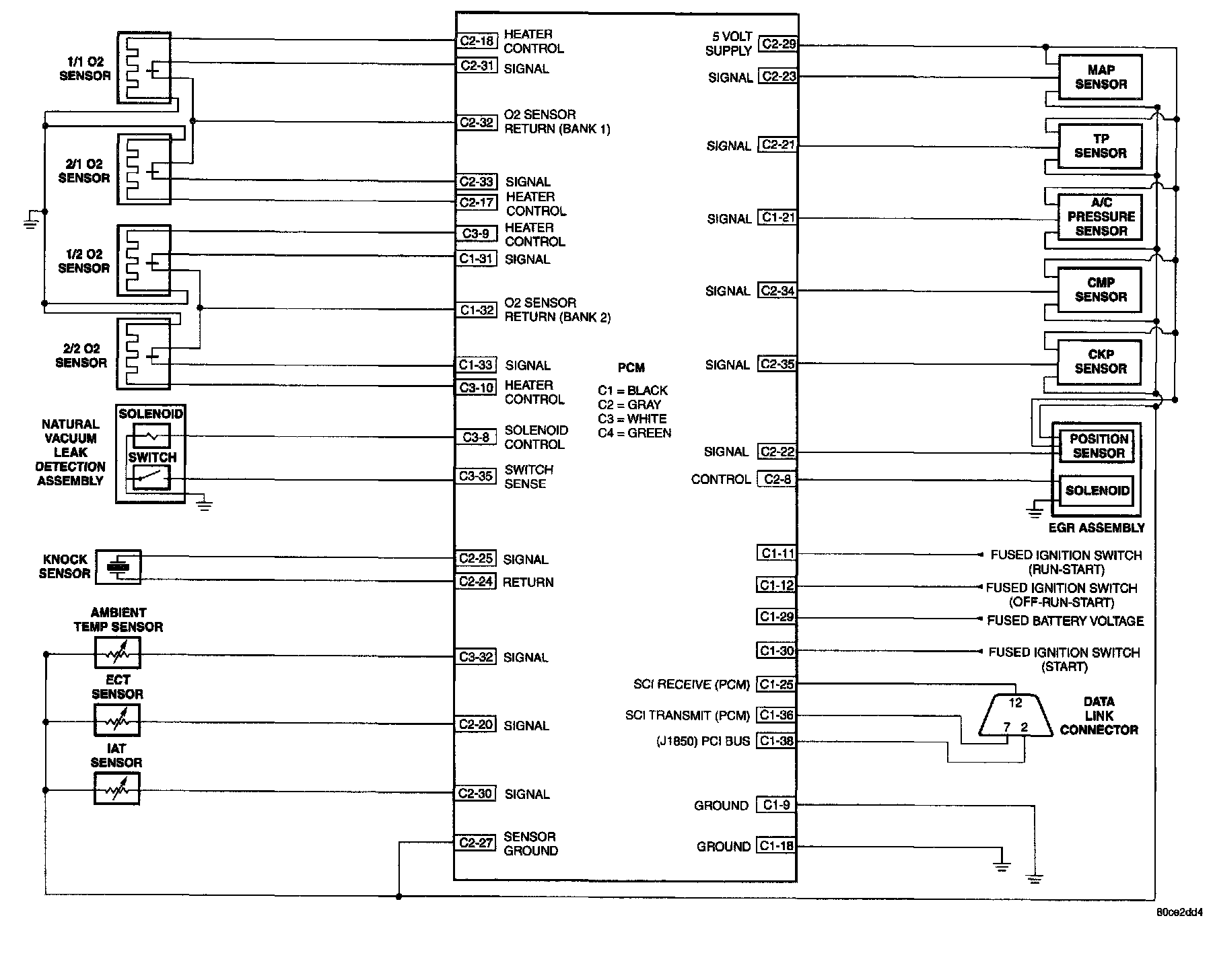

2002/2003 LH 2.7L And 3.5L:
