Power Seat Control Module
Power Seat Control Module

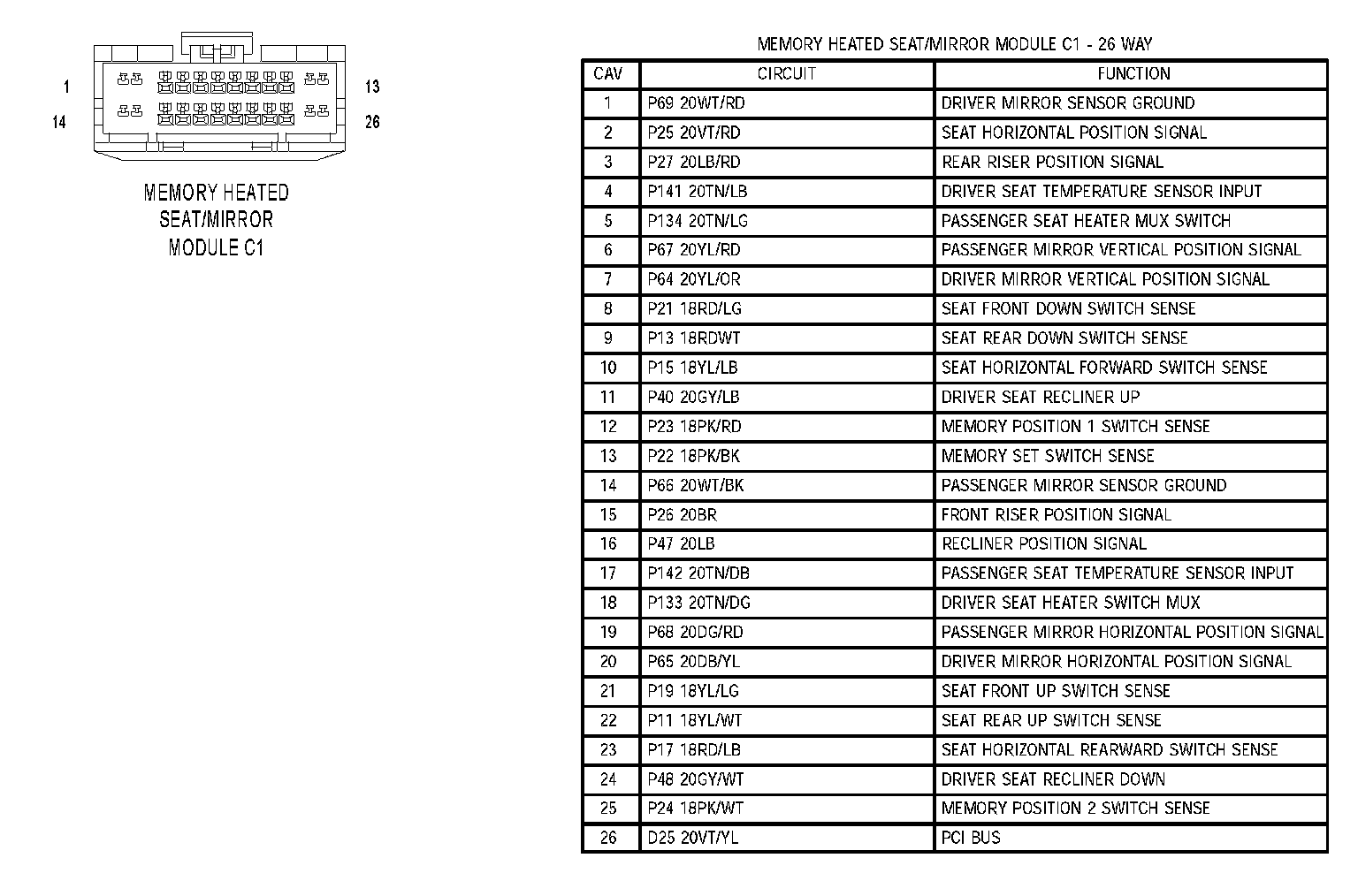

Memory Heated Seat/Mirror Module C1:

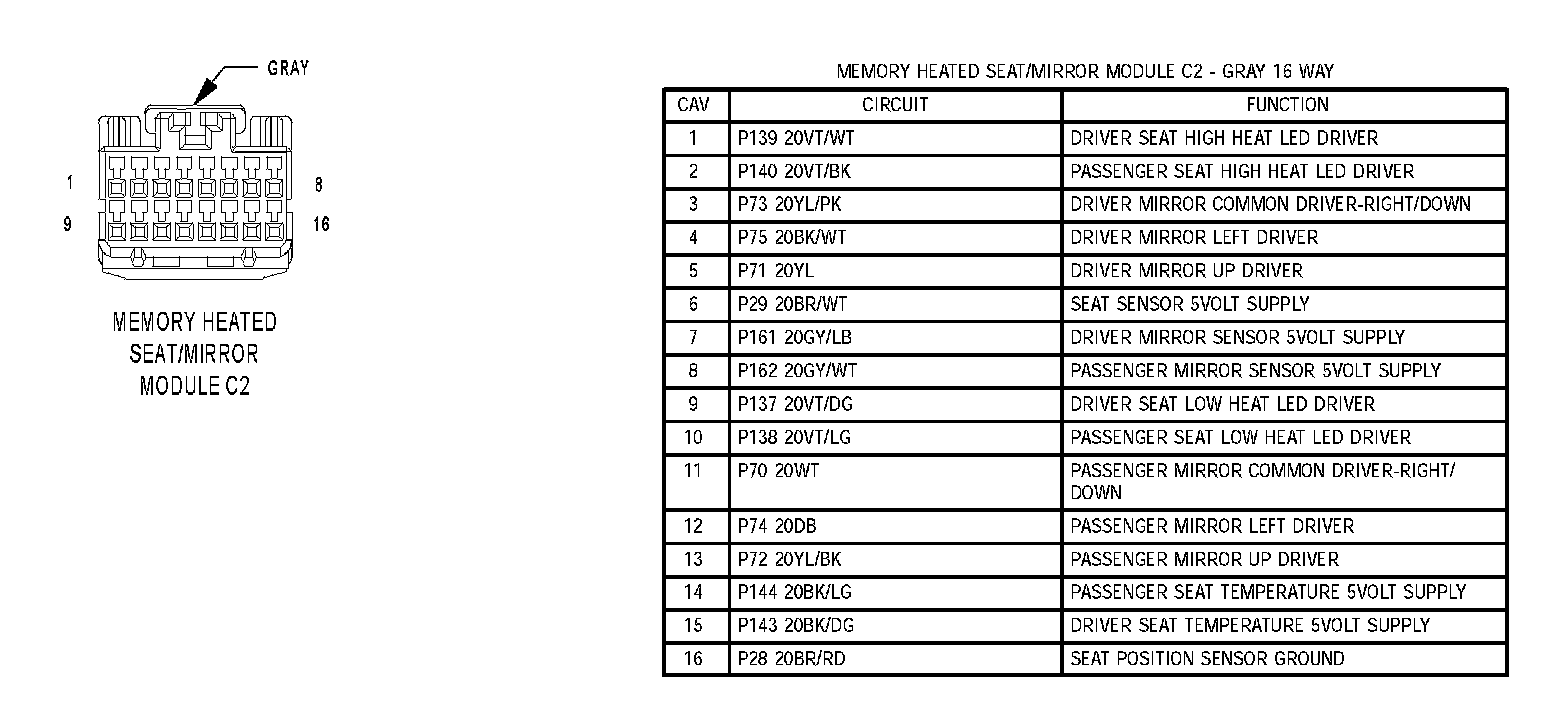

Memory Heated Seat/Mirror Module C2:

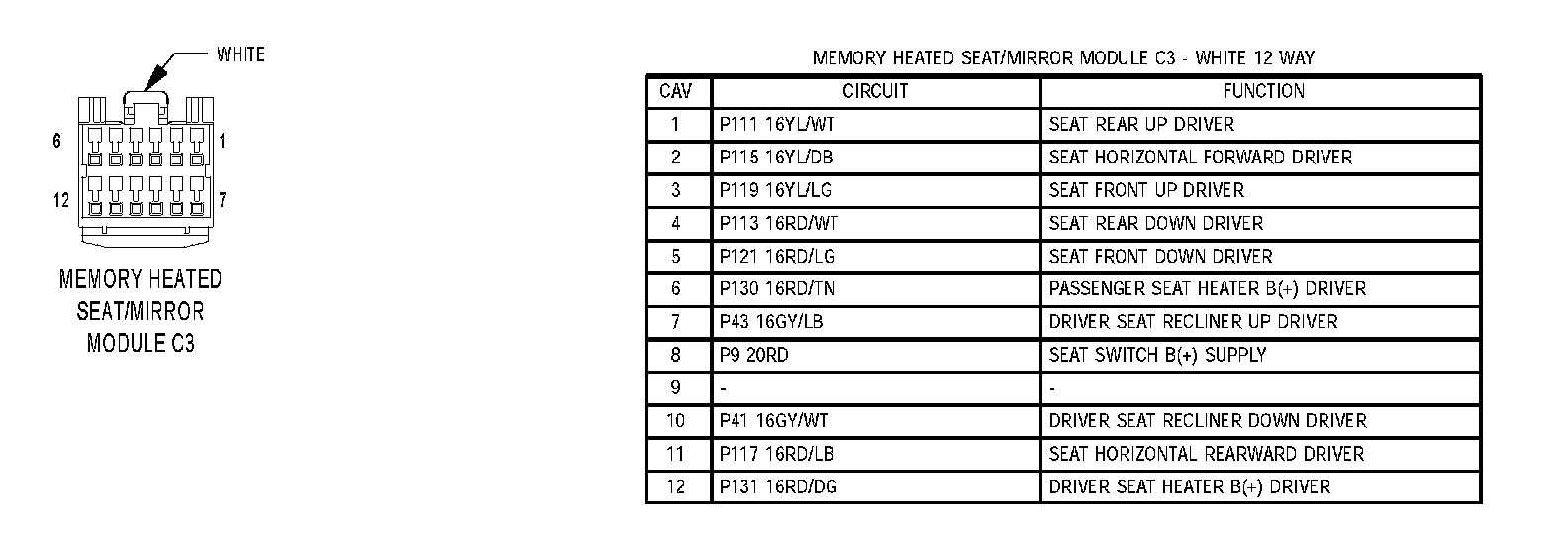

Memory Heated Seat/Mirror Module C3:

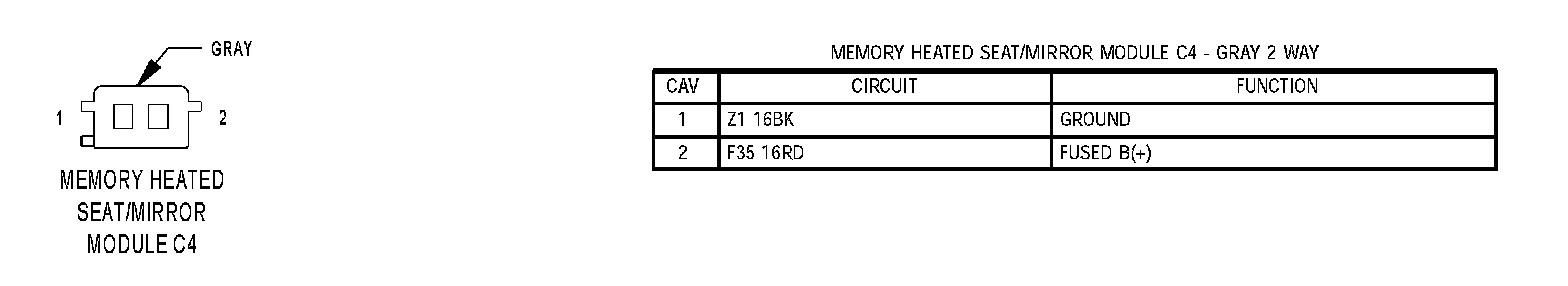

Memory Heated Seat/Mirror Module C4:
