Home >> Chrysler >> 2003 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Diagrams

Seat Temperature Element: Diagrams

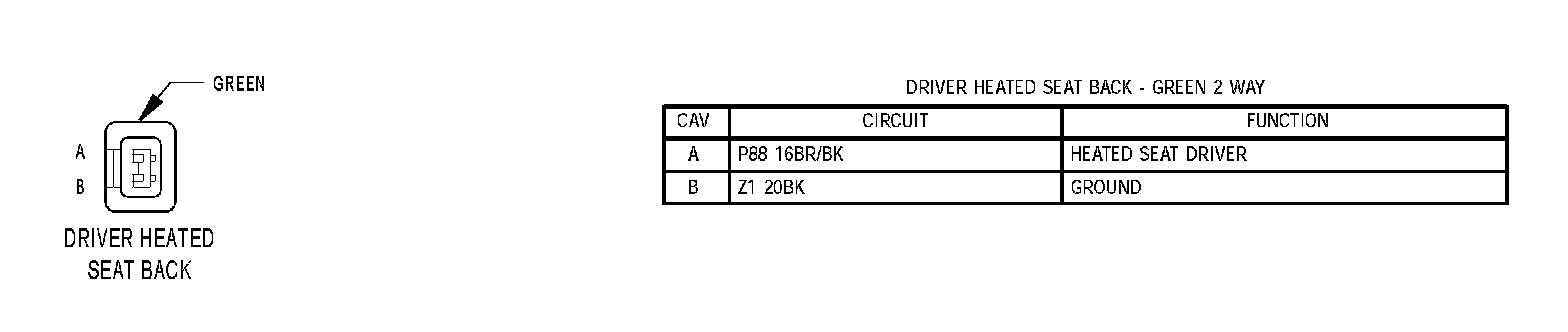

Driver Heated Seat Back:

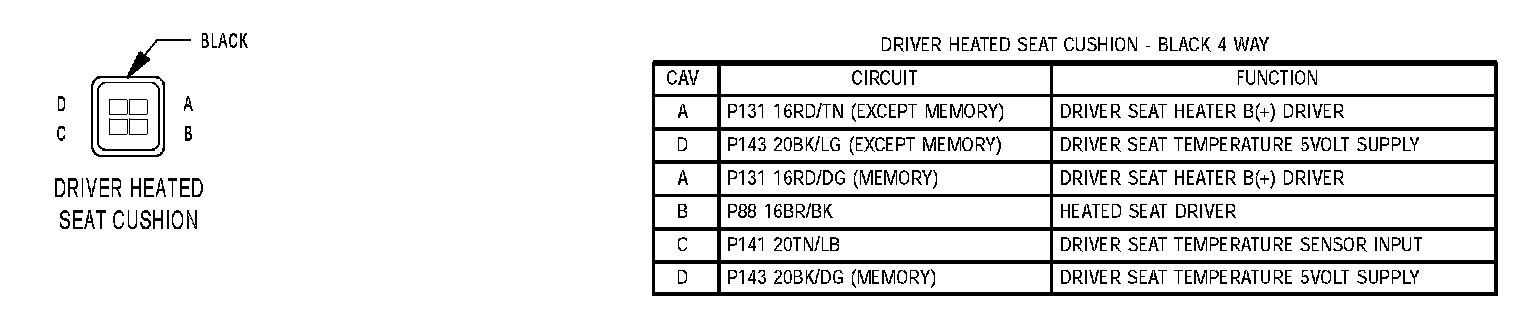

Driver Heated Seat Cushion:
