Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Disconnect the air plenum.

Figure.11 Idle Control Motor:

3. Disconnect the electrical connector.
4. Remove the mounting screw.
5. Remove the IAC.

INSTALLATION

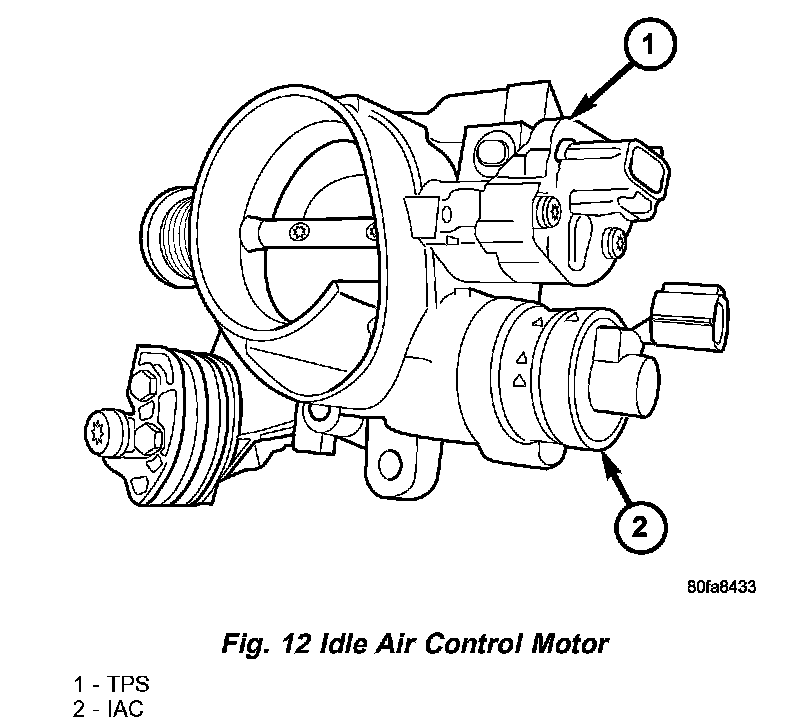

Figure.12 Idle Air Control Motor:

1. Install the IAC to the throttle body.
2. Tighten mounting screw to 7.3 N.m (65 in.lbs.) torque.
3. Attach electrical connector to the IAC.
4. Install air plenum and tighten the clamp.
5. Connect the negative battery cable.
