Park/Turn Signal Lamp Replacement

REMOVAL
300M
1. Open Hood, disconnect and isolate the battery negative cable.

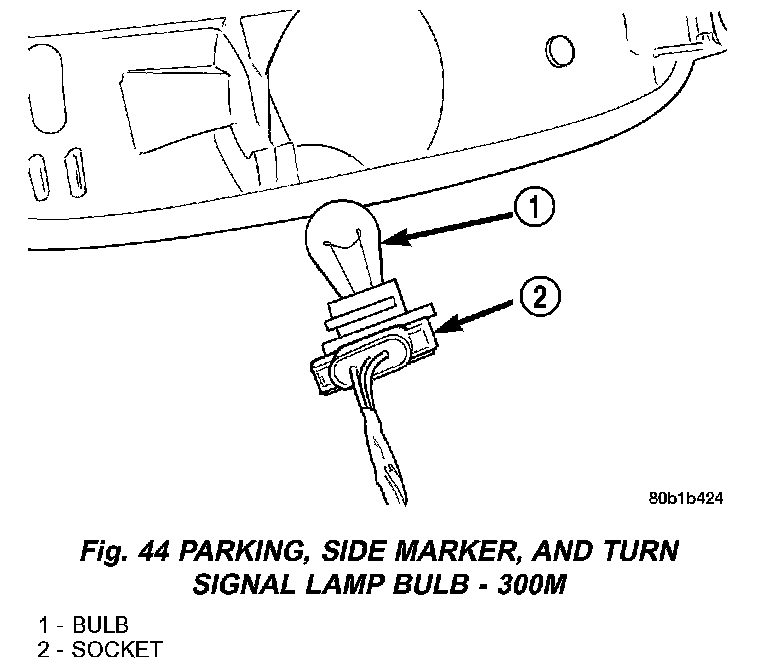

Fig.44 Parking, Side Marker, And Turn Signal Lamp Bulb - 300M:

2. Reach under the fascia and remove the socket from the lamp housing.
3. Rotate and pull socket from lamp housing.
4. Pull bulb from socket.

INSTALLATION
300M
1. Push bulb into socket. Rotate socket.
2. Reach under the fascia and place the socket into the lamp housing and rotate to lock.
3. Connect and the battery negative cable and close hood.
