Home >> Chrysler >> 2003 >> 300M V6-3.5L VIN M >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Diagrams >> Turn Signal Lamps

Turn Signal Lamps

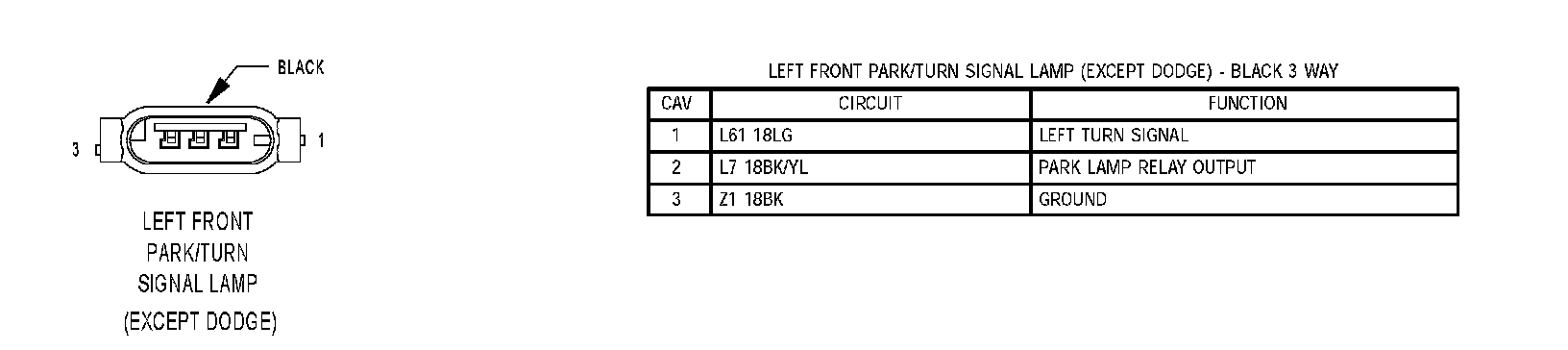

Left Front Park/Turn Signal Lamp (Except DODGE):






Left Rear Turn Signal Lamp (300M/Export):

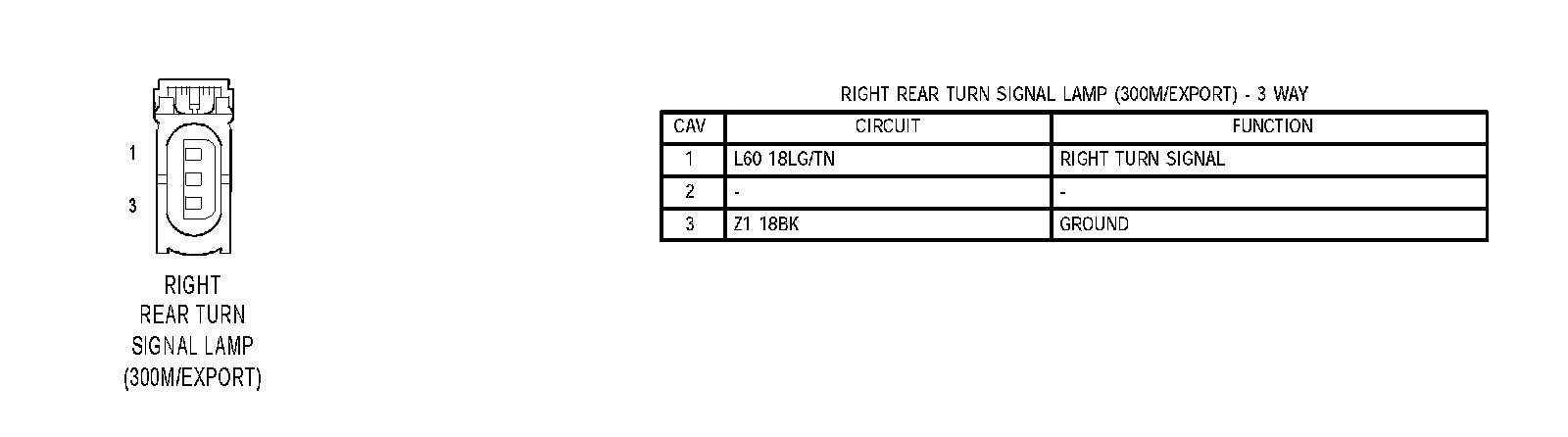

Right Rear Turn Signal Lamp (300M/Export):
