Courtesy Lamp
>>
System Diagram
System Diagram

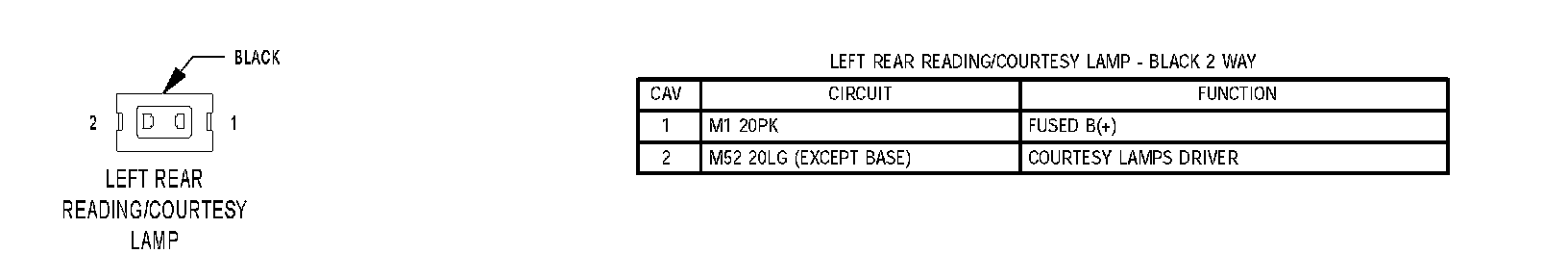

Left Rear Reading/Courtesy Lamp:

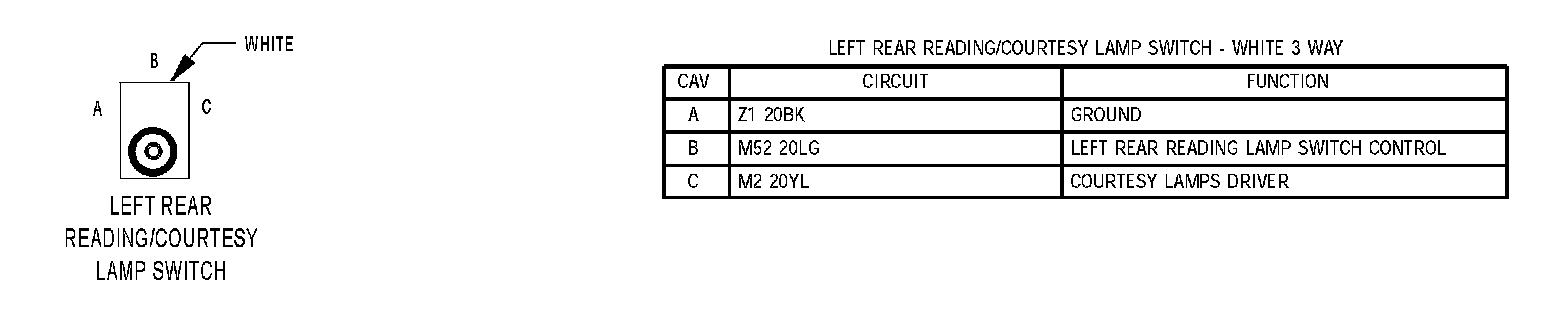

Left Rear Reading/Courtesy Lamp Switch:

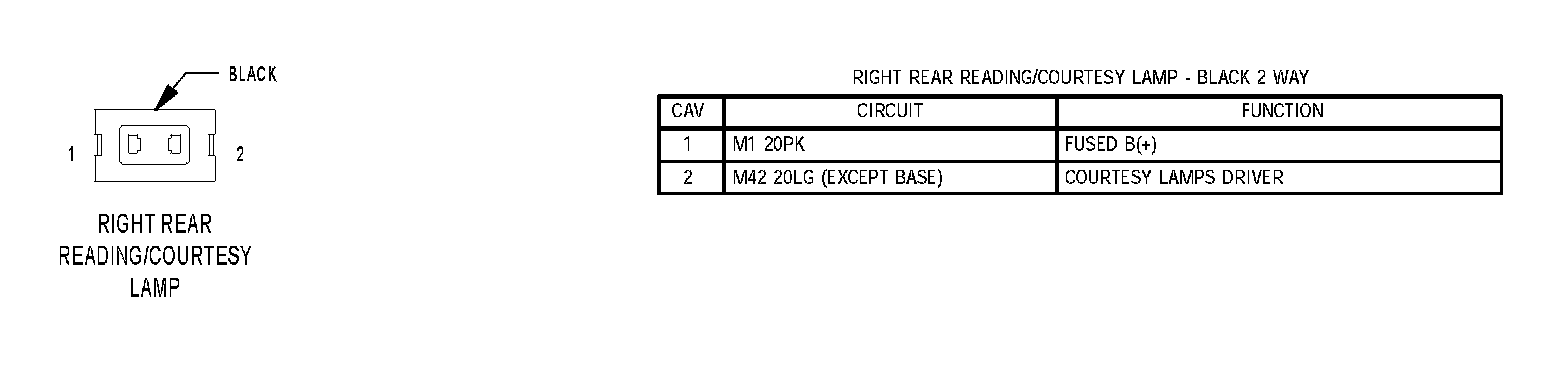

Right Rear Reading/Courtesy Lamp:

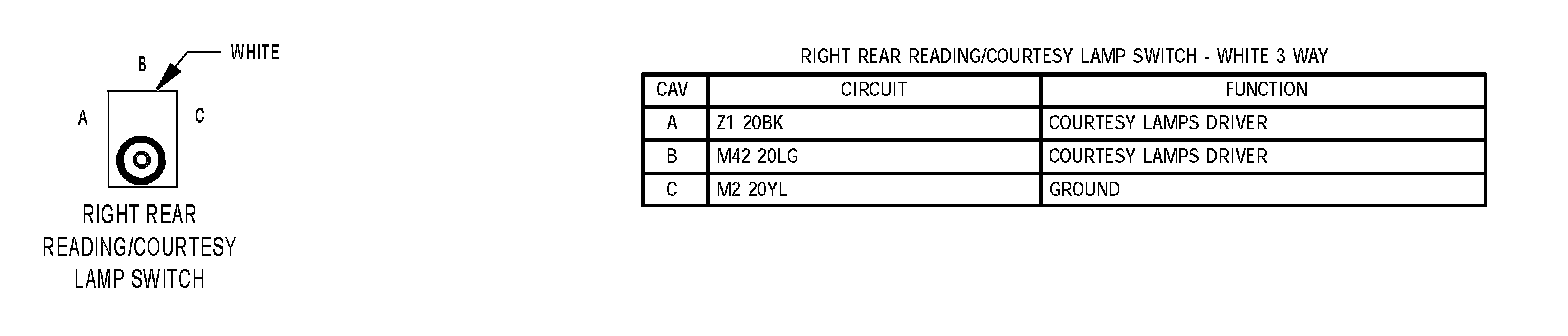

Right Rear Reading/Courtesy Lamp Switch:
