Body - Window Molding Discoloration
NUMBER: 23-019-03GROUP: Body
DATE: July 11, 2003
THIS BULLETIN SUPERSEDES TECHNICAL SERVICE BULLETIN 23-045-02, DATED NOV. 29, 2002, WHICH SHOULD BE REMOVED FROM YOUR FILES. ALL REVISIONS ARE HIGHLIGHTED WITH **ASTERISKS** AND INCLUDES AN ADDITIONAL MODEL YEAR.
SUBJECT:
Window Surround (DLO) Molding Discolored
OVERVIEW:
This bulletin involves installing a self-adhesive overlay on the DLO moldings.
MODELS:
2000 - **2004** (LH) LHS/300M/Concorde/Intrepid
SYMPTOM/CONDITION:
The black molding portions of the DLO become discolored after exposure to harsh car wash chemicals.
DIAGNOSIS:
Visually inspect the black portions of the DLOs for discoloration, if the DLOs are discolored, perform the Repair Procedure.

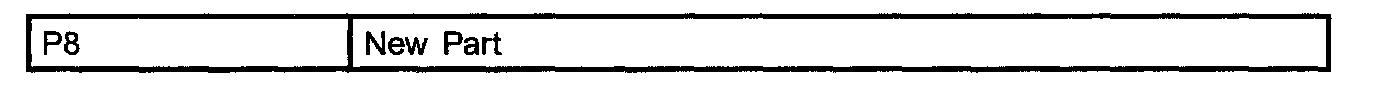

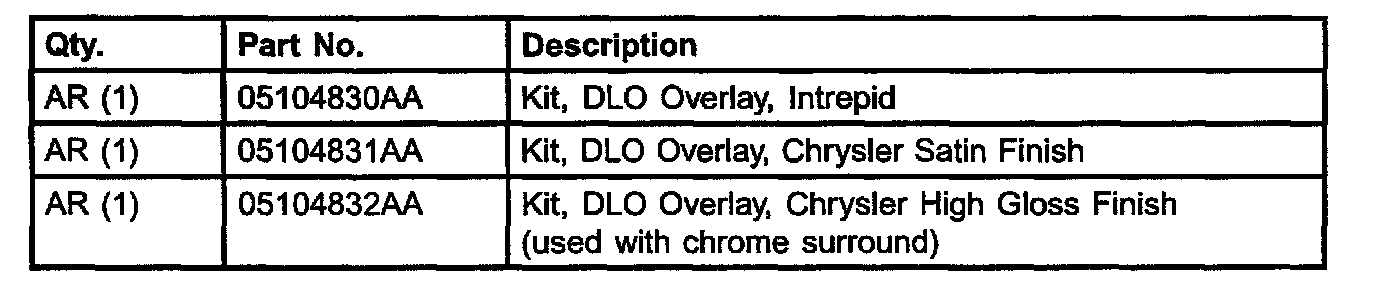

PARTS REQUIRED:

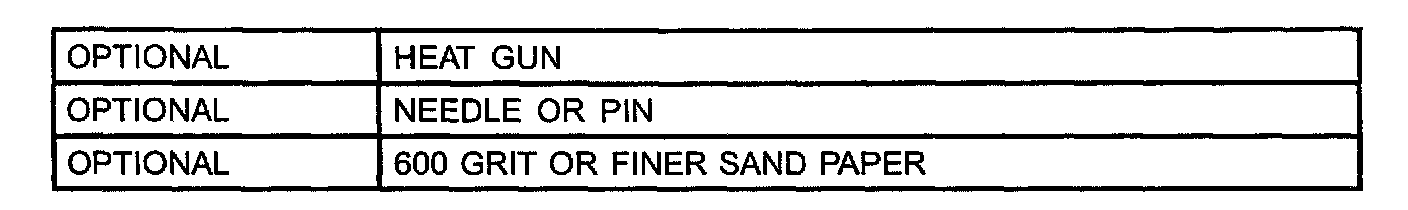

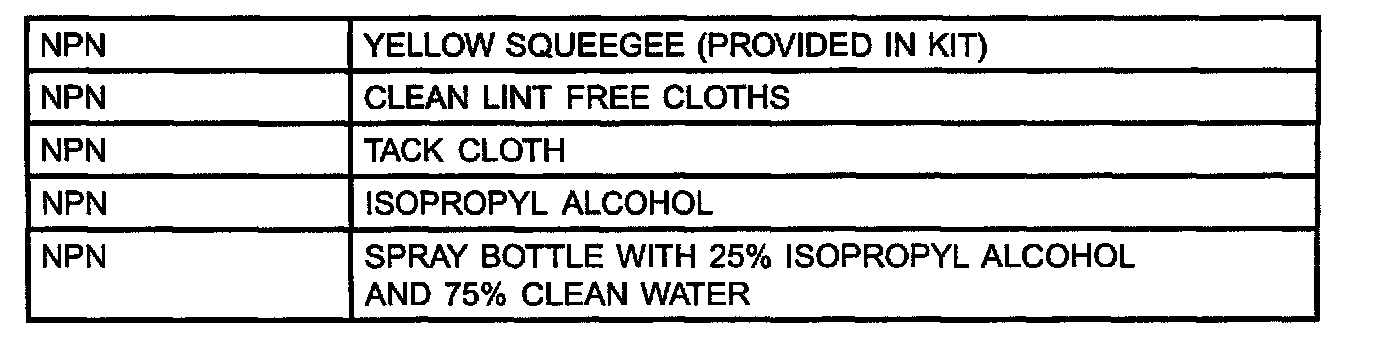

EQUIPMENT REQUIRED:
REPAIR PROCEDURE:
1. Follow the instructions provided in the appropriate DLO overlay kit.
POLICY:
Reimbursable within the provisions of the warranty.

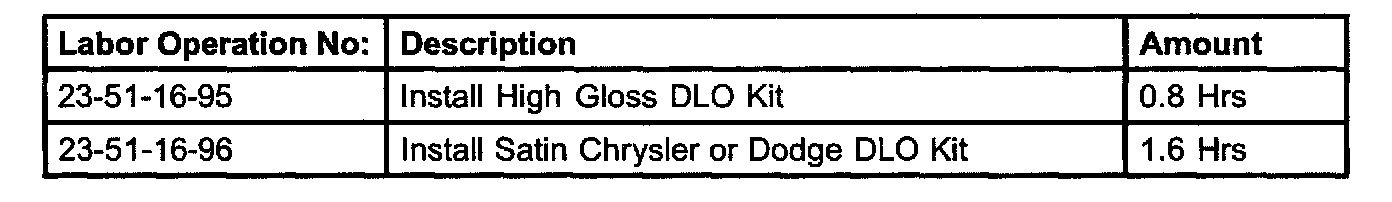

TIME ALLOWANCE:
FAILURE CODE:
