Transmission Shifts Early With No DTCS
Transmission Shifts Early With No DTCS

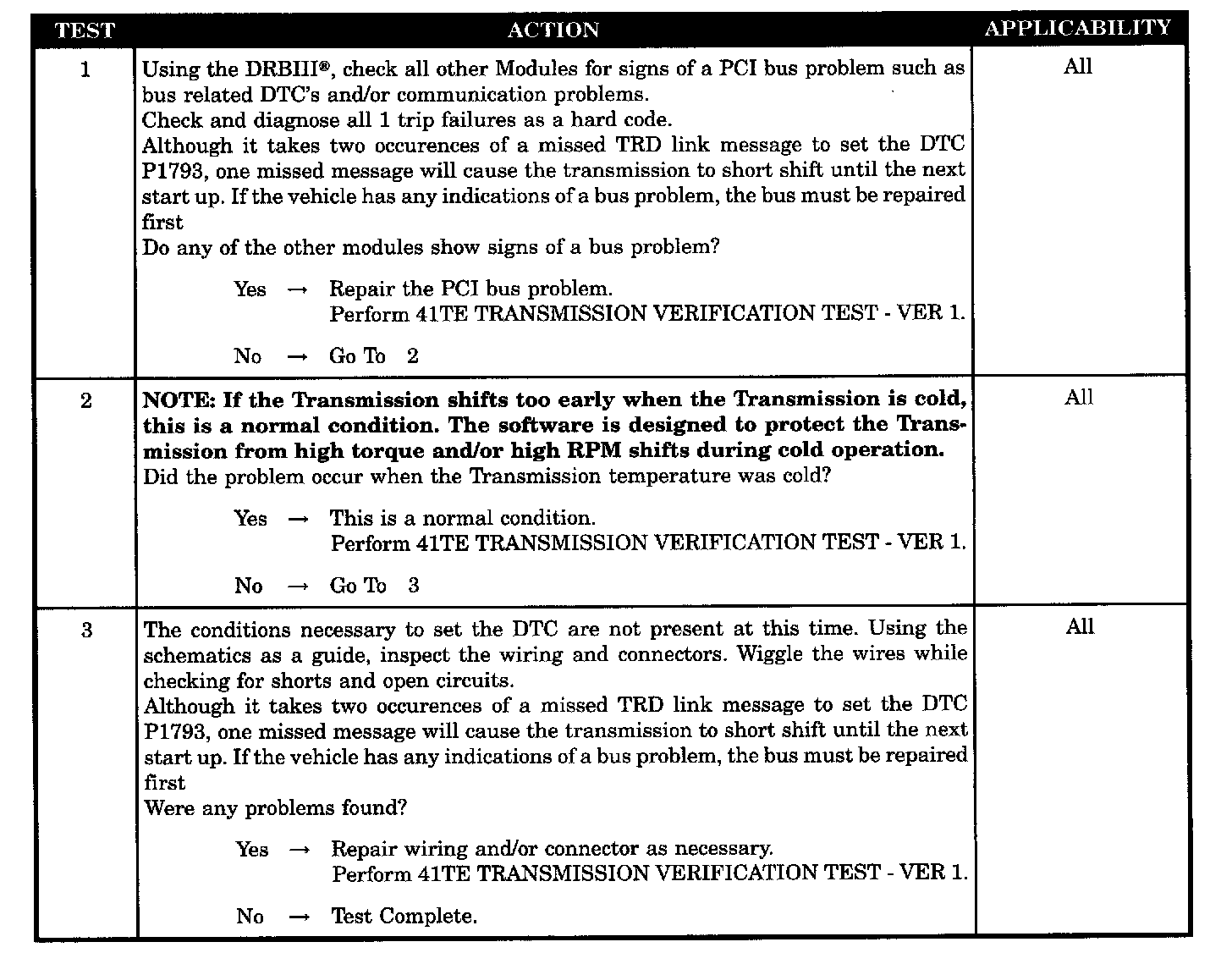

Symptoms:
*TRANSMISSION SHIFTS EARLY WITH NO DTC'S
POSSIBLE CAUSES
BUS PROBLEMS
CHECK FOR INTERMITTENT WIRING > CONNECTORS
COLD TRANSMISSION
