Home >> Chrysler >> 2002 >> Sebring Limited Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Tools and Equipment

Manual Transmission/Transaxle: Tools and Equipment

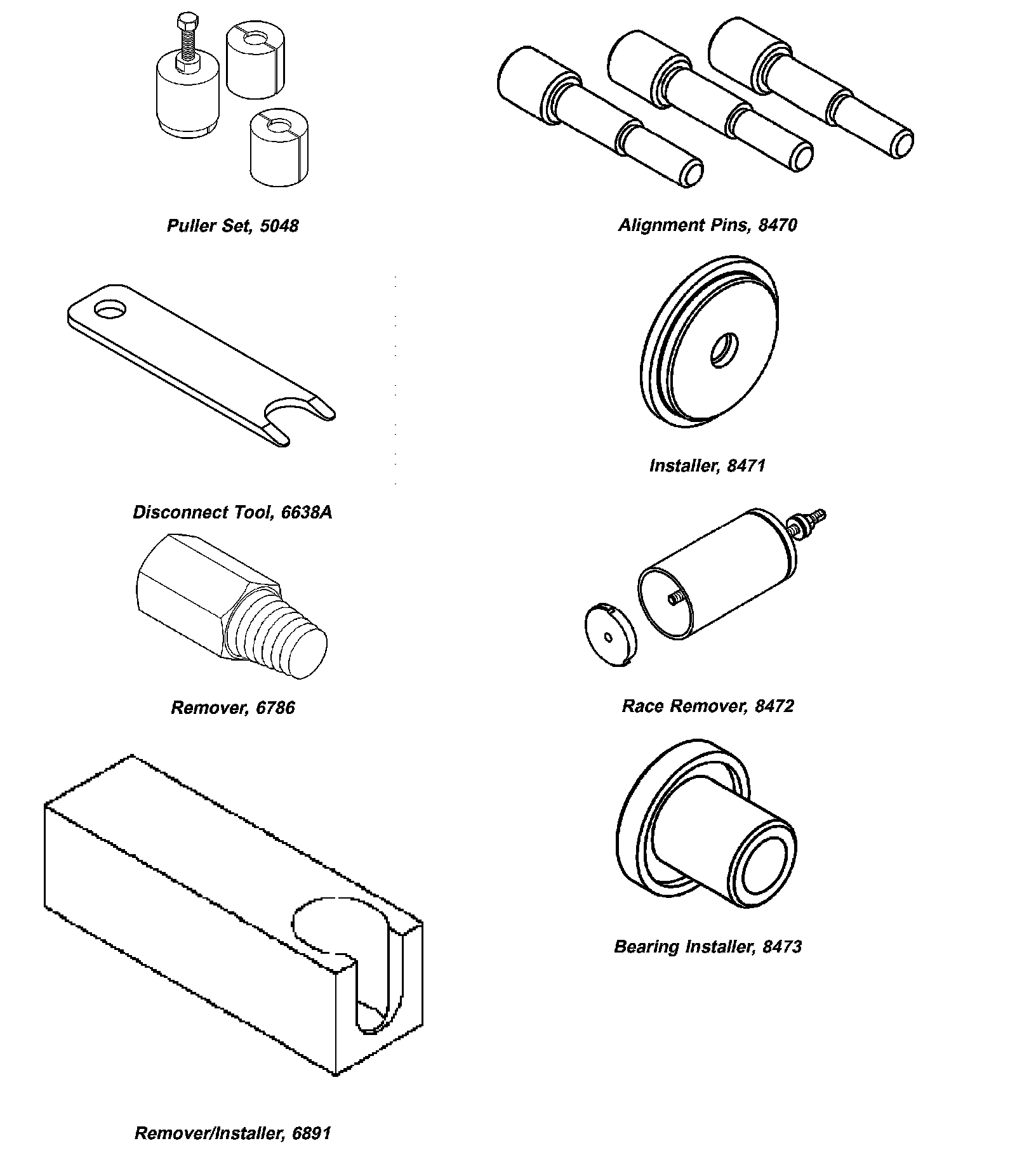

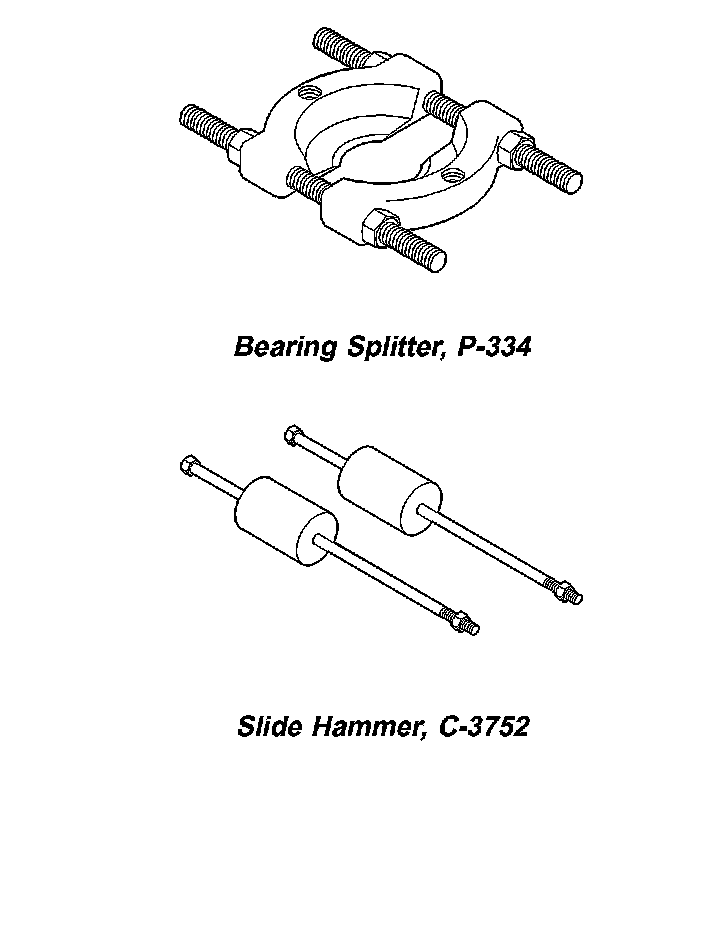

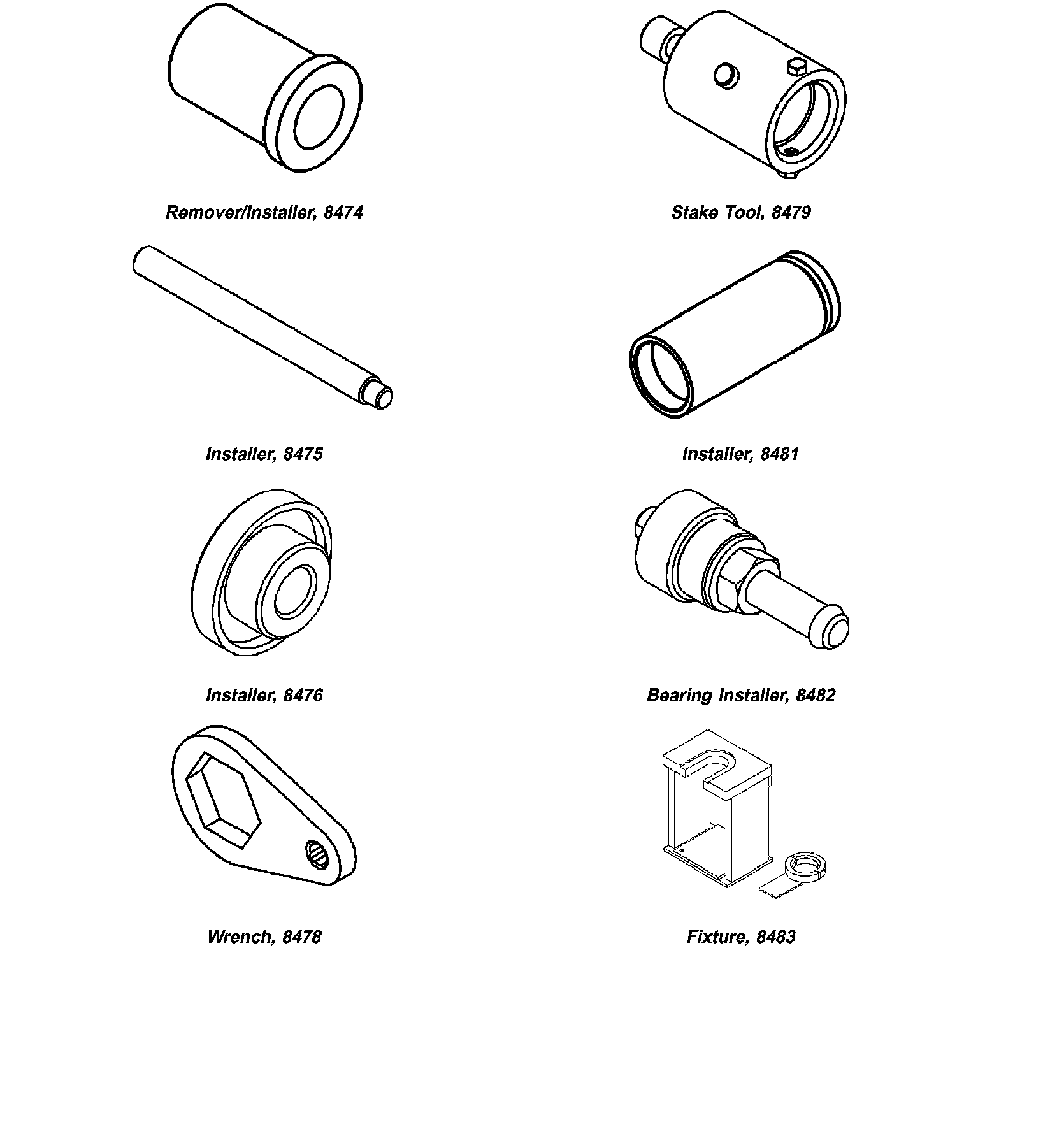

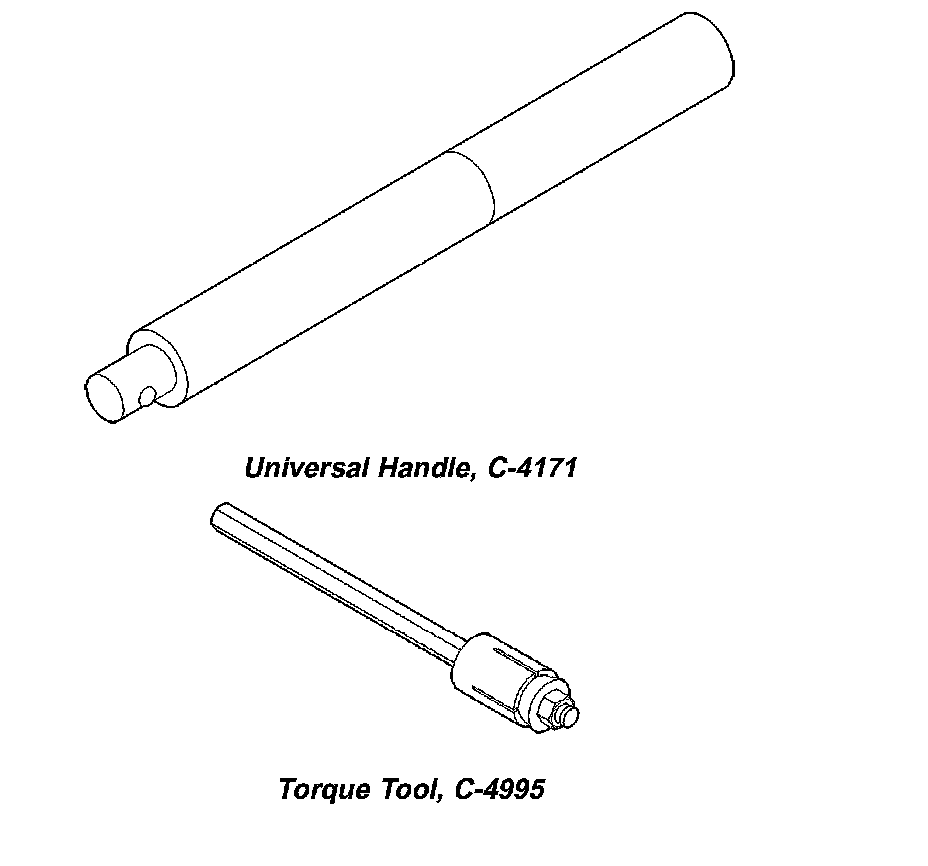

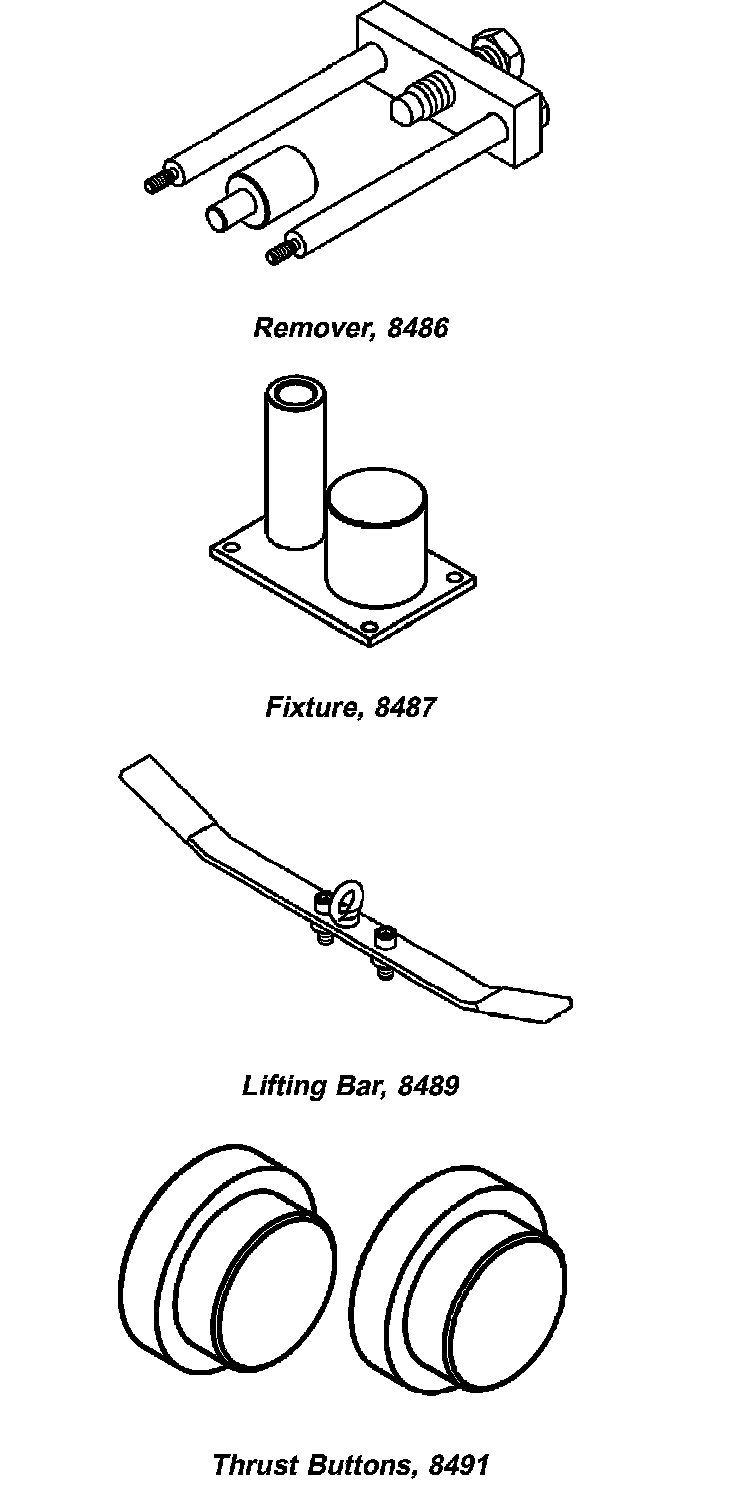

SPECIAL TOOLS - T850 TRANSAXLE





1 of 5





2 of 5





3 of 5

2eH0:





4 of 5





5 of 5
