Camshaft Bearing

Camshaft Bearing Cap



Camshaft
Bore Diameter 24.050 - 24.071 mm (0.9469 - 0.09476 inch)
Bearing Journal Diameter 24.000 - 23.981 (0.9449 - 0.9441 inch)
Bearing Clearance 0.05 - 0.09 mm (0.0020 - 0.0035 inch)
Bearing Clearance (Max.) 0.13 mm (0.0051 inch)

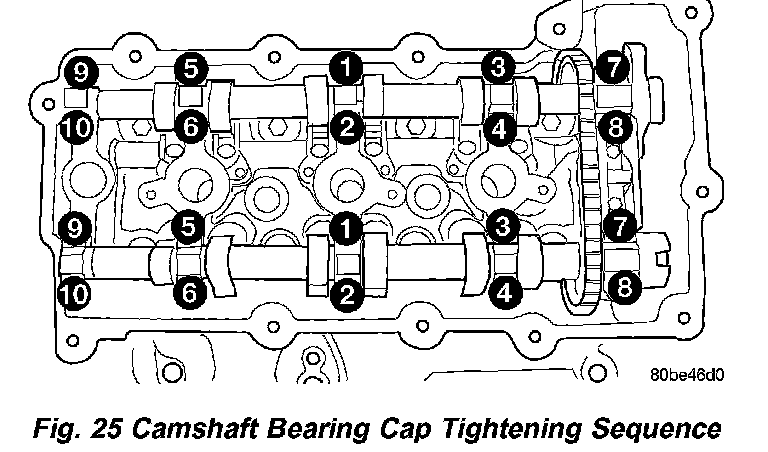

Camshaft Bearing Cap-Bolts 12 Nm (105 inch lbs.)
