Hazard Warning Switch: Service and Repair

MULTIFUNCTION SWITCH

REMOVAL
1. Disconnect and isolate the battery negative remote cable.
2. Remove the upper steering column shroud. Refer to Steering, Column, Shroud, Removal.

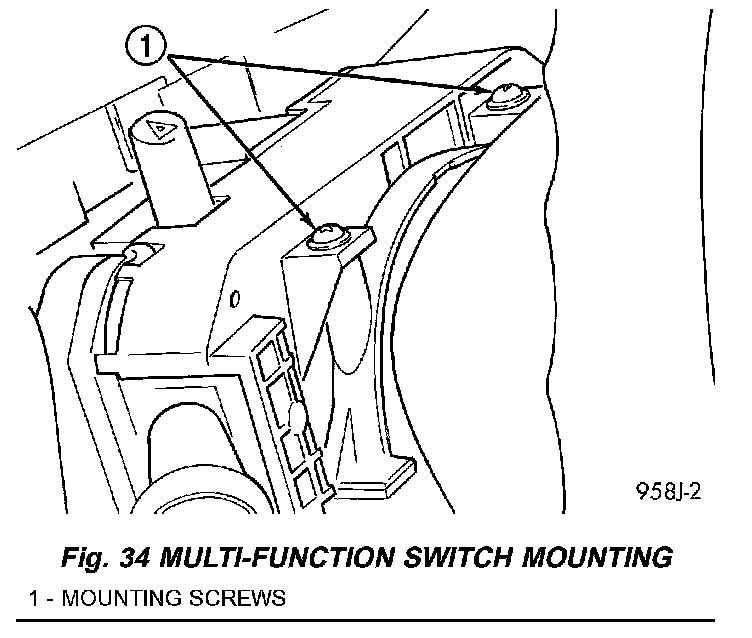

Fig.34 Multi-Function Switch Mounting:

3. Remove multi-function switch mounting screws (Fig. 34).
4. Disconnect wire connectors. Lift the switch straight up to remove.

INSTALLATION
Position the switch on the steering column and install the retaining screws.
1. Tighten multi-function switch to column retaining screws to 2.3 Nm (20 in. lbs.) torque.
2. Install the steering shrouds and screws. Refer to Steering, Column, Shroud, Installation.
3. Tighten steering column cover retaining screws to 2 Nm (17 in lbs) torque
4. Connect the battery negative cable.
